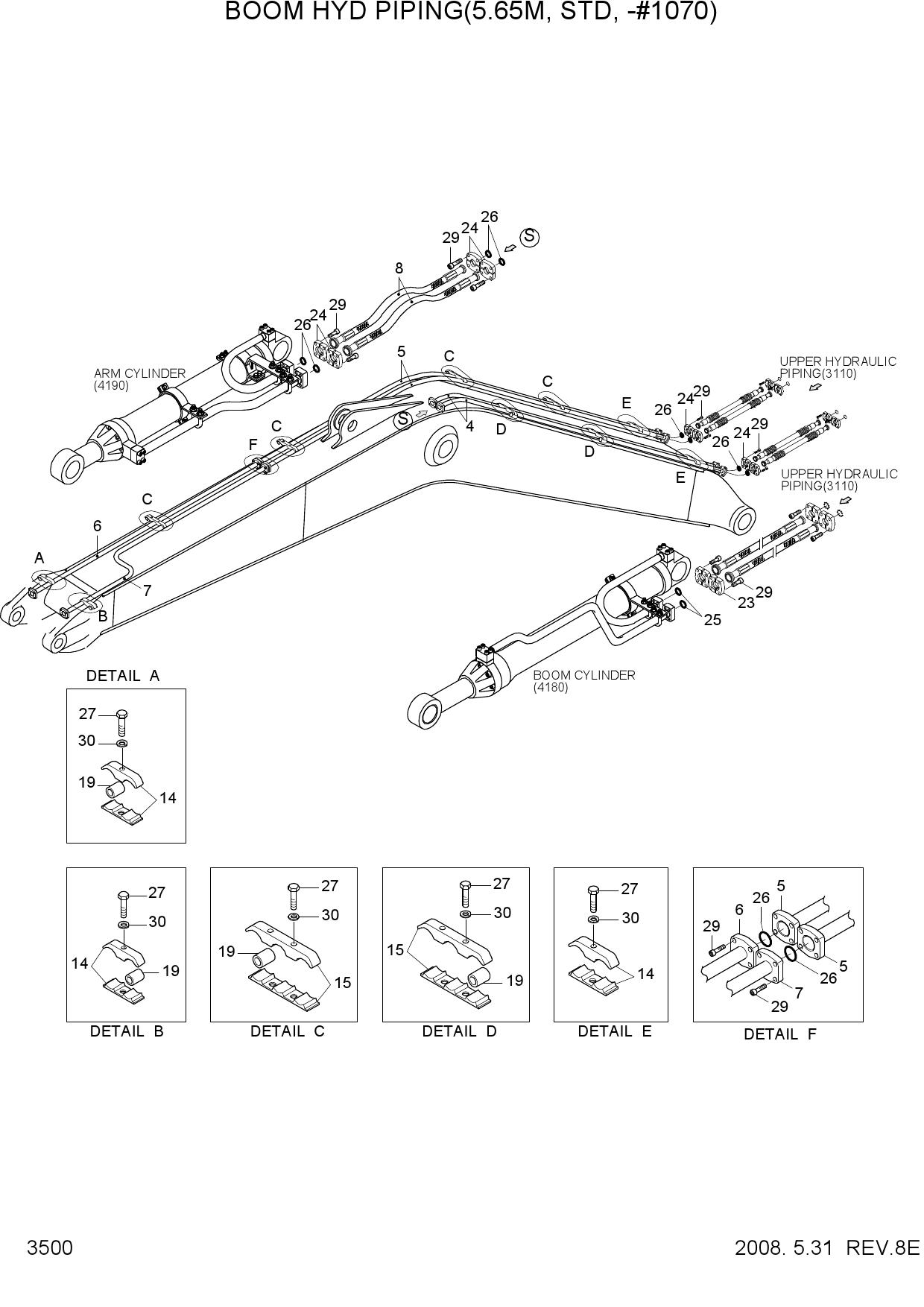

Запчасти для колесных экскаваторов Hyundai R200W-7 BOOM HYD PIPING(5.65M, STD, -#1070)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N6-53310 | PIPE ASSY | |
| 5 | 31N6-53320 | PIPE ASSY | |
| 6 | 31N6-53330 | PIPE ASSY | |
| 7 | 31N6-53340 | PIPE ASSY | |
| 8 | P680-167322FL | HOSE ASSY-FLG 0X0 | |
| 14 | 31N6-50310 | CLAMP ASSY | |
| 15 | 31N6-50330 | CLAMP ASSY | |
| 19 | 31N5-50230 | SPACER-PIPE | |
| 23 | P173-120102 | FLANGE-HYD,SPLIT | |
| 24 | P173-160104 | FLANGE-HYD,SPLIT | |
| 25 | Y171-019004 | O-RING | |
| 26 | Y171-024004 | O-RING | |
| 27 | S017-160752 | BOLT-HEX | |
| 29 | S109-100306 | BOLT-SOCKET | |
| 30 | S411-160002 | WASHER-SPRING |
