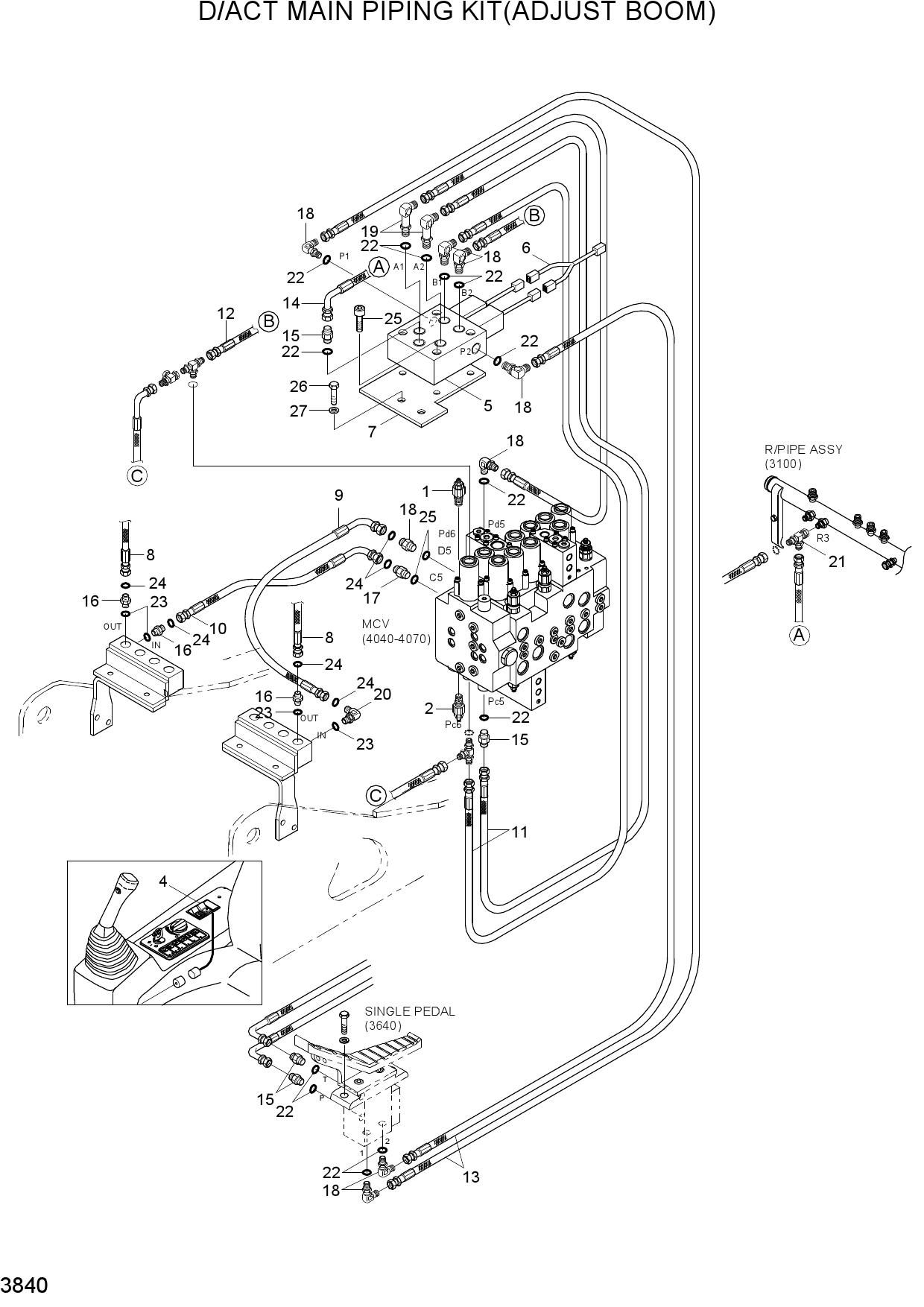

Запчасти для колесных экскаваторов Hyundai R140W-7A D/ACT MAIN PIPING KIT(ADJUST BM)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N4-90580 | PORT RELIEF VALVE | |
| 2 | 31N4-90590 | PORT RELIEF VALVE | |
| 4 | 21E6-30540 | SWITCH-BREAKER | |
| 5 | 31N4-20050 | 2-SOLENOID VALVE | |
| 6 | 21N5-10180 | HARNESS-EXT | |
| * | 31N4-94500 | D/ACT MAIN PIPING | |
| 7 | 31N4-91260 | BRACKET-2SOL, MTG | |
| 8 | P913-126035 | HOSE ASSY-ORFS 0X0 | |
| 9 | P933-126015 | HOSE ASSY-ORFS | |
| 10 | 31N4-96010 | HOSE ASSY-ORFS 0X90 | |
| 11 | P400-042040 | HOSE ASSY-COMPACT | |
| 12 | P400-042050 | HOSE ASSY-COMPACT | |
| 13 | P400-042072 | HOSE ASSY-COMPACT | |
| 14 | P400-042043 | HOSE ASSY-COMPACT | |
| 15 | P010-110002 | CONNECTOR | |
| 16 | X500-110004 | CONNECTOR-ORFS | |
| 17 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 18 | P020-110001 | ELBOW-90 | |
| 19 | E131-0603 | ELBOW 90-LONG | |
| 20 | X520-110004 | ELBOW-90,ORFS | |
| 21 | 32E6-10460 | TEE-SWEVEL NUT | |
| 22 | S631-011004 | O-RING | |
| 23 | S631-024004 | O-RING | |
| 24 | S621-018001 | O-RING | |
| 25 | S109-100556 | BOLT-SOCKET | |
| 26 | S017-100256 | BOLT-HEX | |
| 27 | S411-100006 | WASHER-SPRING |
