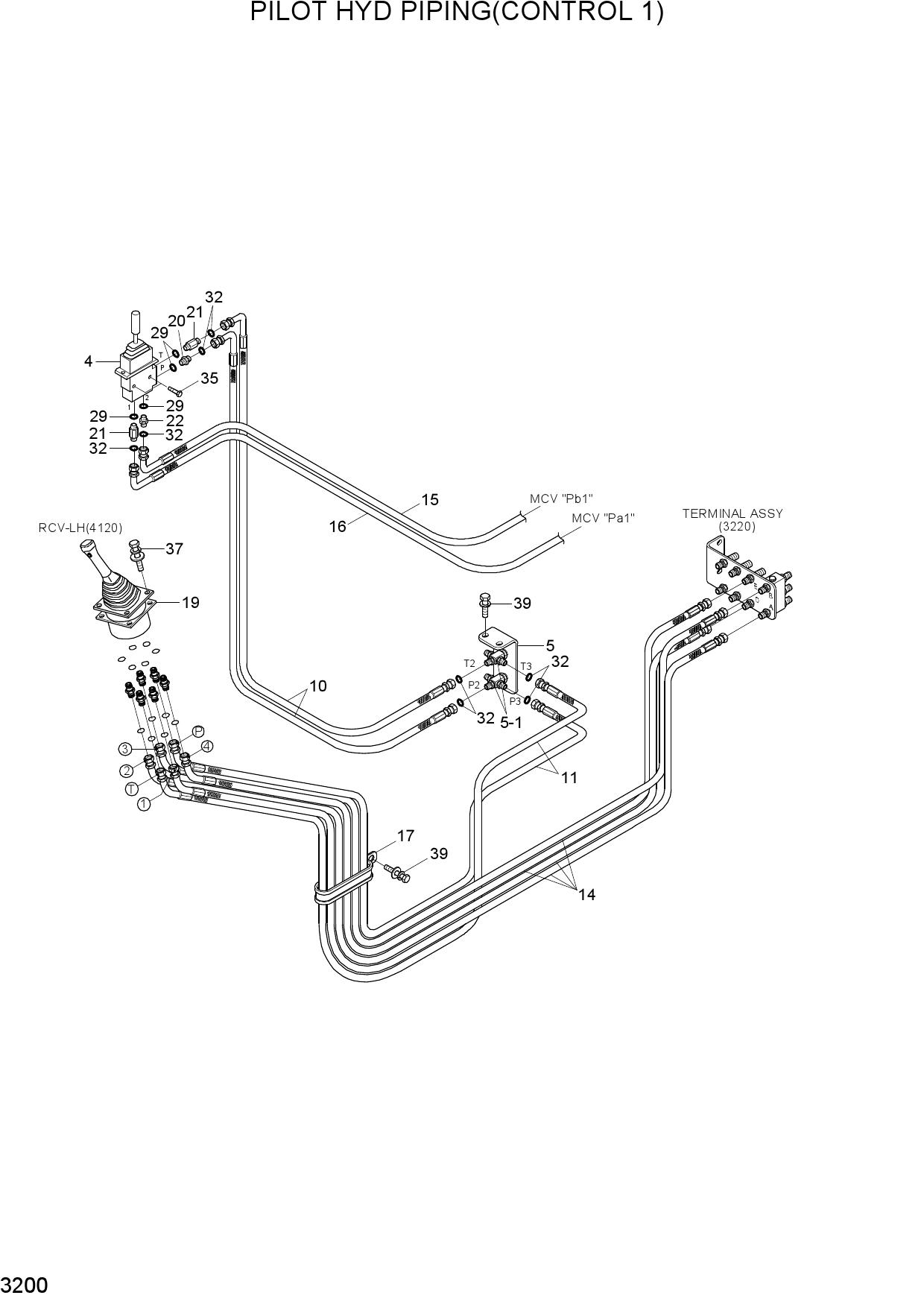

Запчасти для колесных экскаваторов Hyundai R140W-7A PILOT HYD PIPING(CONTROL 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N4-20080 | LEVER-DOZER | |
| 5 | 31N6-25100 | CROSS ASSY | |
| 5-1 | 31N6-25040 | CROSS-BULKHEAD TYPE | |
| 10 | X410-042024 | HOSE ASSY-SYNFLEX,ORFS | |
| 11 | X410-042026 | HOSE ASSY-SYNFLEX,ORFS | |
| 14 | X410-042039 | HOSE ASSY-SYNFLEX,ORFS | |
| 15 | X420-042055 | HOSE ASSY-SYNFLEX,ORFS | |
| 16 | X420-042062 | HOSE ASSY-SYNFLEX,ORFS | |
| 17 | 31E7-0309 | CLAMP-HOSE | |
| 19 | 31M6-51061 | SHIM(3.2T) | |
| 20 | 31N6-25060 | FILTER-LAST GUARD | |
| 21 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 22 | X500-110001 | CONNECTOR-ORFS | |
| 29 | S631-011004 | O-RING | |
| 32 | S621-011001 | O-RING | |
| 35 | S035-083526 | BOLT-W/WASHER | |
| 37 | S035-063046 | BOLT-W/WASHER | |
| 39 | S037-102046 | BOLT-W/WASHER |
