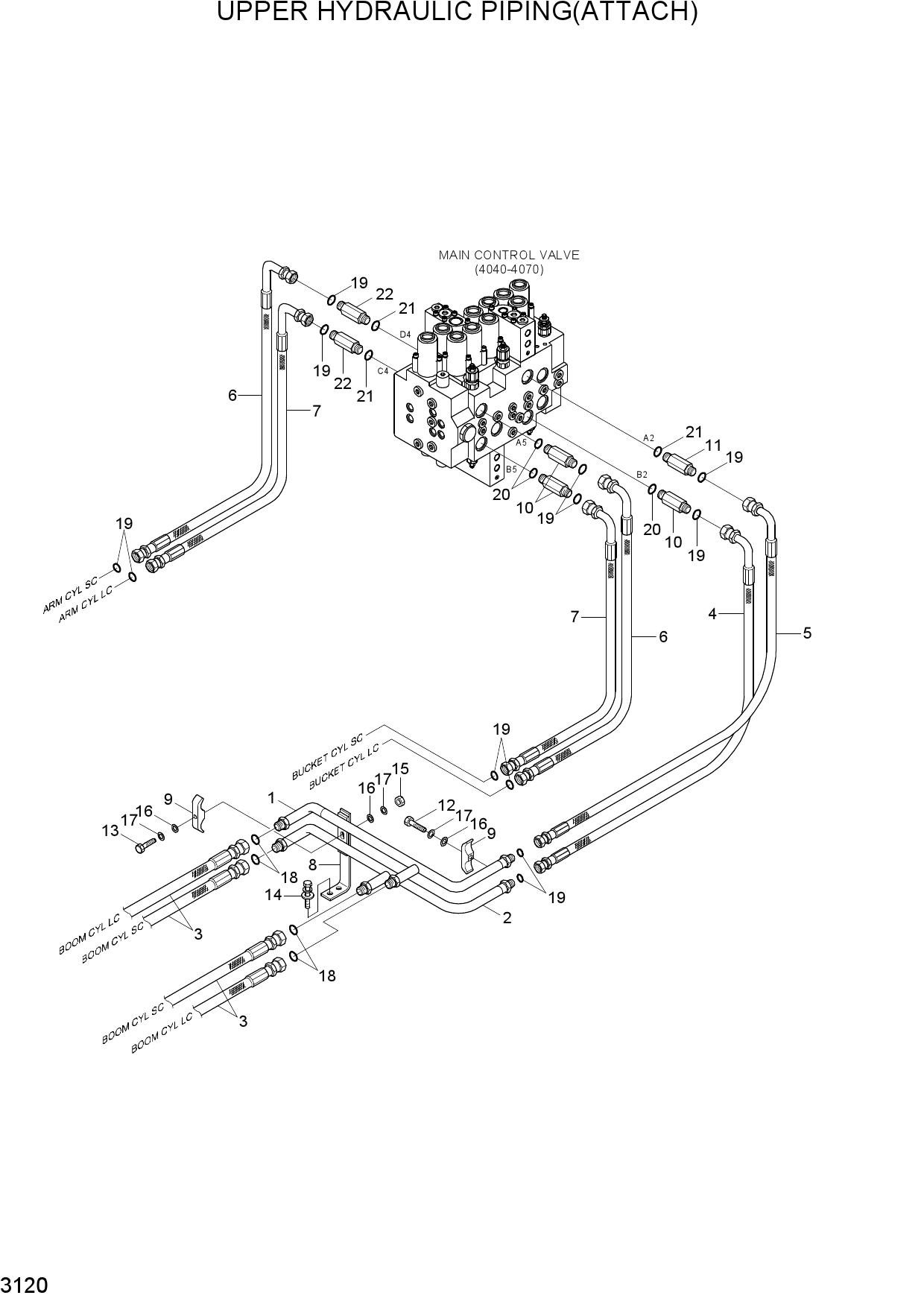

Запчасти для колесных экскаваторов Hyundai R140W-7A UPPER HYD PIPING(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N4-12051 | PIPE ASSY | |
| 2 | 31N4-12062 | PIPE ASSY | |
| 3 | 31N4-13210 | HOSE ASSY | |
| 4 | P930-127018 | HOSE ASSY-ORFS 0X90 | |
| 5 | P930-127020 | HOSE ASSY-ORFS 0X90 | |
| 6 | P933-127024 | HOSE ASSY-ORFS 0X90 | |
| 7 | P933-127026 | HOSE ASSY-ORFS 0X90 | |
| 8 | 31N4-12310 | BRACKET-RETURN | |
| 9 | 31N4-12270 | CLAMP-PIPE | |
| 10 | X511-112545 | CONNECTOR-LONG,ORFS | |
| 11 | X511-116544 | CONNECTOR-LONG,ORFS | |
| 12 | S017-100606 | BOLT-HEX | |
| 13 | S017-100756 | BOLT-HEX | |
| 14 | S037-103026 | BOLT-W/WASHER | |
| 15 | S205-101006 | NUT-HEX | |
| 16 | S403-10200B | WASHER-PLAIN | |
| 17 | S411-100006 | WASHER-SPRING | |
| 18 | S621-014001 | O-RING | |
| 19 | S621-018001 | O-RING | |
| 20 | S631-024004 | O-RING | |
| 21 | S631-029004 | O-RING | |
| 22 | X511-116546 | CONNECTOR-LONG,ORFS |
