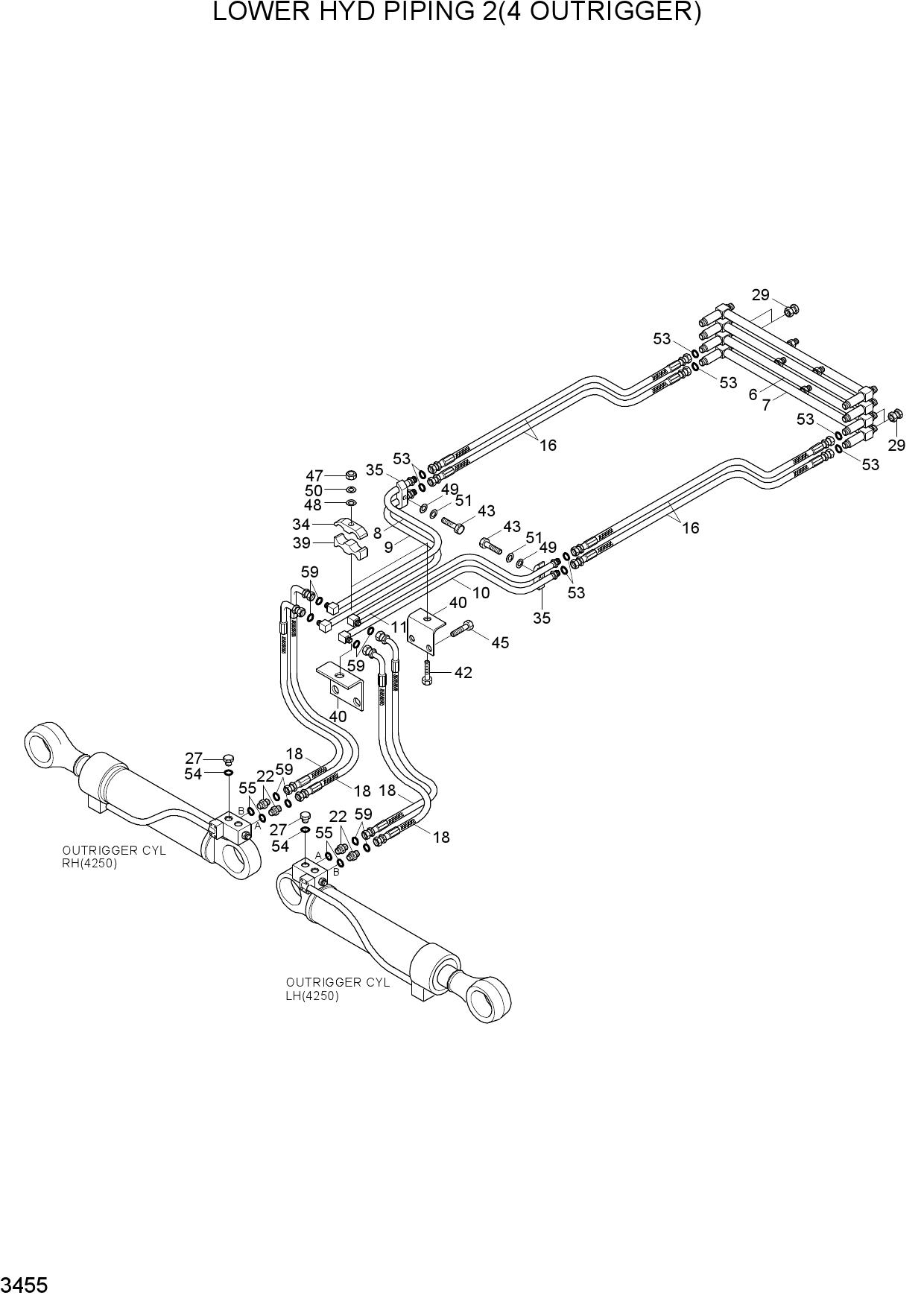

Запчасти для колесных экскаваторов Hyundai R140W-7A LOWER HYD PIPING 2(4 OUTRIGGER)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 6 | 31N5-71310 | PIPE ASSY | |
| 7 | 31N5-71320 | PIPE ASSY | |
| 8 | 31N4-71310 | PIPE ASSY | |
| 9 | 31N4-71320 | PIPE ASSY | |
| 10 | 31N4-71330 | PIPE ASSY | |
| 11 | 31N4-71380 | PIPE ASSY | |
| 16 | P910-087029 | HOSE ASSY-ORFS 0X0 | |
| 18 | P913-067013 | HOSE ASSY-ORFS 0X0 | |
| 22 | X500-110002 | CONNECTOR-ORFS | |
| 27 | P220-110102 | PLUG-HEX | |
| 29 | X710-100103 | CAP-HYD,ORFS | |
| 34 | 31E4-3030 | CLAMP-PIPE | |
| 35 | 31EE-50180 | CLAMP ASSY | |
| 39 | 31E4-31430 | SPACER-CLAMP | |
| 40 | 31N5-31440 | BRACKET-PIPE | |
| 42 | S017-101006 | BOLT-HEX | |
| 43 | S017-120606 | BOLT-HEX | |
| 45 | S037-102526 | BOLT-W/WASHER | |
| 47 | S205-10100B | NUT-HEX | |
| 48 | S403-10100B | WASHER-PLAIN | |
| 49 | S403-12100B | WASHER-PLAIN | |
| 50 | S411-100006 | WASHER-SPRING | |
| 51 | S411-120006 | WASHER-SPRING | |
| 53 | S621-014001 | O-RING | |
| 54 | S631-011004 | O-RING | |
| 55 | S631-014004 | O-RING | |
| 59 | S621-012001 | O-RING |
