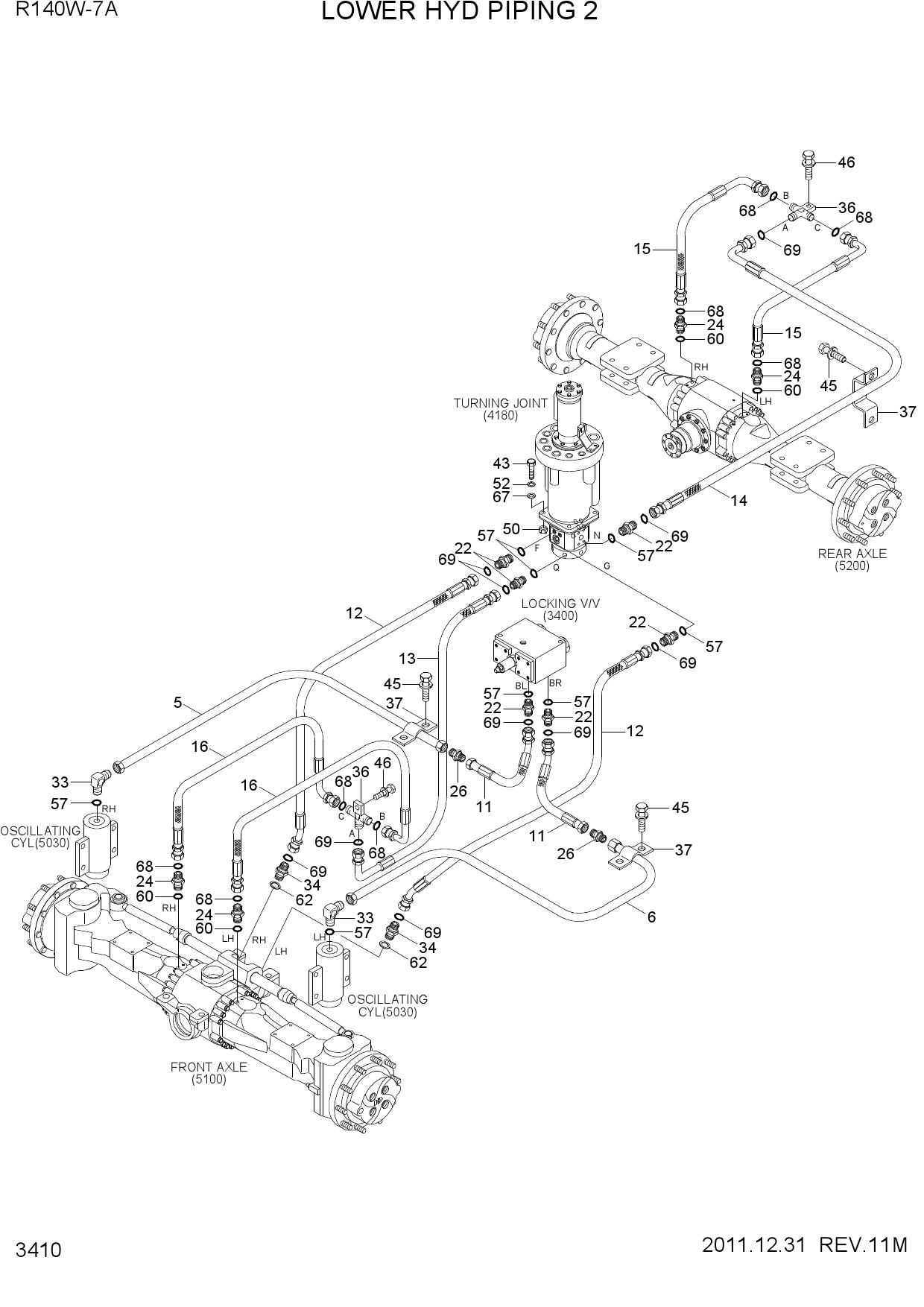

Запчасти для колесных экскаваторов Hyundai R140W-7A LOWER HYD PIPING 2
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31N4-41260 | PIPE ASSY | |
| 6 | 31N4-41270 | PIPE ASSY | |
| 11 | P923-067007 | HOSE ASSY-ORFS 0X45 | |
| 12 | P923-066032 | HOSE ASSY-ORFS 0X45 | |
| 13 | P933-066029 | HOSE ASSY-ORFS 0X90 | |
| 14 | P933-066030 | HOSE ASSY-ORFS 0X90 | |
| 15 | P933-042009 | HOSE ASSY-ORFS 0X90 | |
| 16 | P923-042015 | HOSE ASSY-ORFS 0X45 | |
| 22 | X500-110002 | CONNECTOR-ORFS | |
| 24 | X500-210002 | CONNECTOR-ORFS | |
| 26 | 31N4-41130 | CONNECTOR-ORFS | |
| 33 | 31E3-3175 | ELBOW-90 | |
| 34 | X500-220006 | CONNECTOR-ORFS | |
| 36 | 31N5-41030 | TEE-MTG | |
| 37 | 31E4-3095 | STRAP | |
| 38 | 31E4-3097 | STRAP | |
| 43 | S017-120456 | BOLT-HEX | |
| 45 | S035-081516 | BOLT-W/WASHER | |
| 46 | S037-103546 | BOLT-W/WASHER | |
| 50 | S205-121006 | NUT-HEX | |
| 52 | S411-120006 | WASHER-SPRING | |
| 57 | S631-014004 | O-RING | |
| 60 | Y161-014001 | O-RING | |
| 62 | P392-180000 | WASHER-COPPER | |
| 67 | S403-12100B | WASHER-PLAIN | |
| 68 | S621-011001 | O-RING | |
| 69 | S621-012001 | O-RING |
