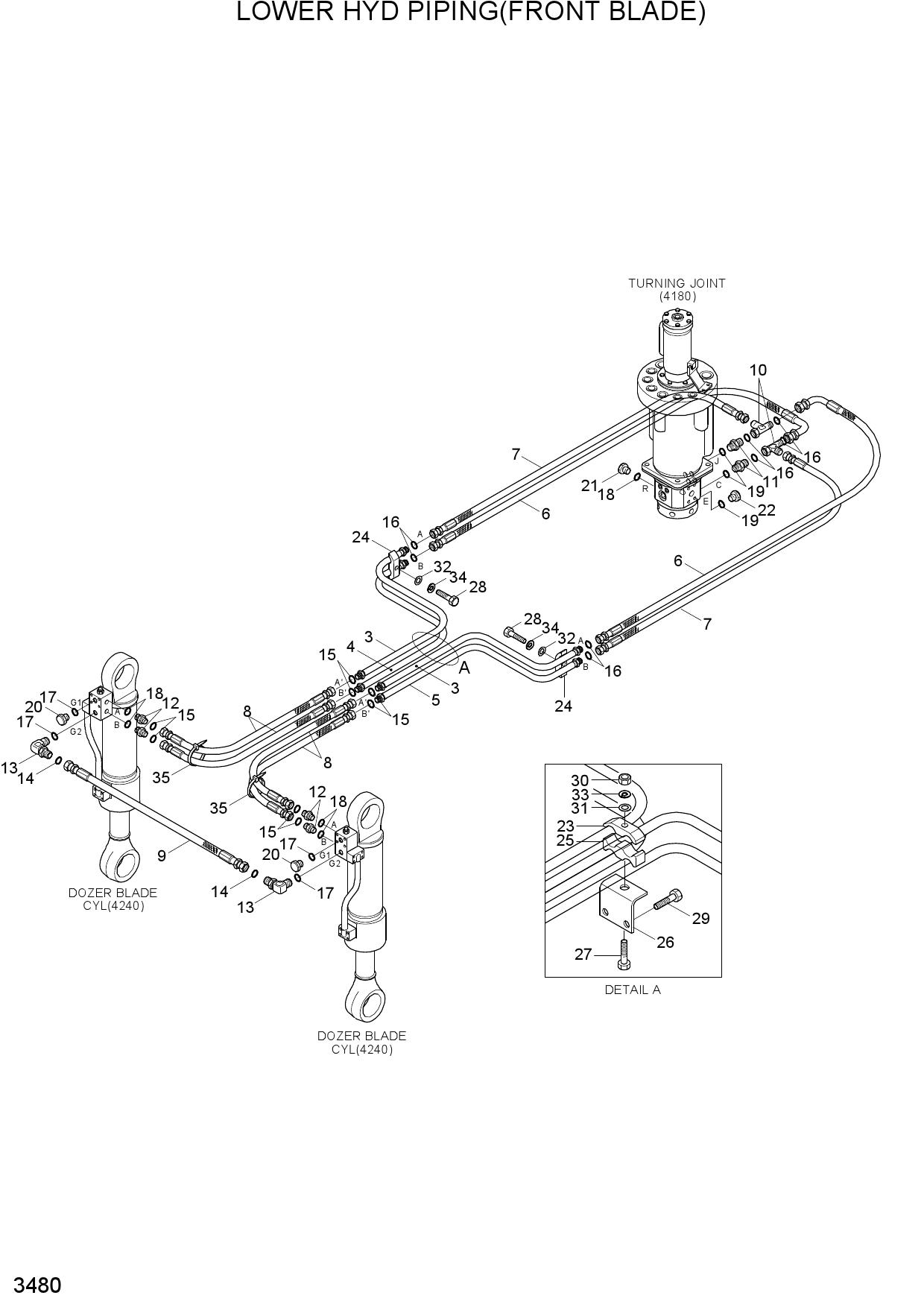

Запчасти для колесных экскаваторов Hyundai R140W-7A LOWER HYD PIPING(FRONT BLADE)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31N4-70511 | PIPE ASSY | |
| 4 | 31N4-70521 | PIPE ASSY | |
| 5 | 31N4-70531 | PIPE ASSY | |
| 6 | P933-087028 | HOSE ASSY-ORFS 0X90 | |
| 7 | P933-087026 | HOSE ASSY-ORFS 0X90 | |
| 8 | P913-067016 | HOSE ASSY-ORFS 0X0 | |
| 9 | P913-047014 | HOSE ASSY-ORFS 0X0 | |
| 10 | X840-535353 | TEE-R/TYPE,SWIVEL,ORFS | |
| 11 | X500-110003 | CONNECTOR-ORFS | |
| 12 | X500-110002 | CONNECTOR-ORFS | |
| 13 | X520-110001 | ELBOW-90,ORFS | |
| 14 | S621-011001 | O-RING | |
| 15 | S621-012001 | O-RING | |
| 16 | S621-014001 | O-RING | |
| 17 | S631-011004 | O-RING | |
| 18 | S631-014004 | O-RING | |
| 19 | S631-018004 | O-RING | |
| 20 | P220-110102 | PLUG-HEX | |
| 21 | P220-110103 | PLUG-HEX | |
| 22 | P220-110104 | PLUG-HEX | |
| 23 | 31E4-3030 | CLAMP-PIPE | |
| 24 | 31EE-50180 | CLAMP ASSY | |
| 25 | 31E4-31430 | SPACER-CLAMP | |
| 26 | 31E4-31440 | BRACKET-PIPE | |
| 27 | S017-101006 | BOLT-HEX | |
| 28 | S017-120606 | BOLT-HEX | |
| 29 | S037-102526 | BOLT-W/WASHER | |
| 30 | S205-10100B | NUT-HEX | |
| 31 | S403-10100B | WASHER-PLAIN | |
| 32 | S403-12100B | WASHER-PLAIN | |
| 33 | S411-100006 | WASHER-SPRING | |
| 34 | S411-120006 | WASHER-SPRING | |
| 35 | S552-102370 | CLAMP-BAND |
