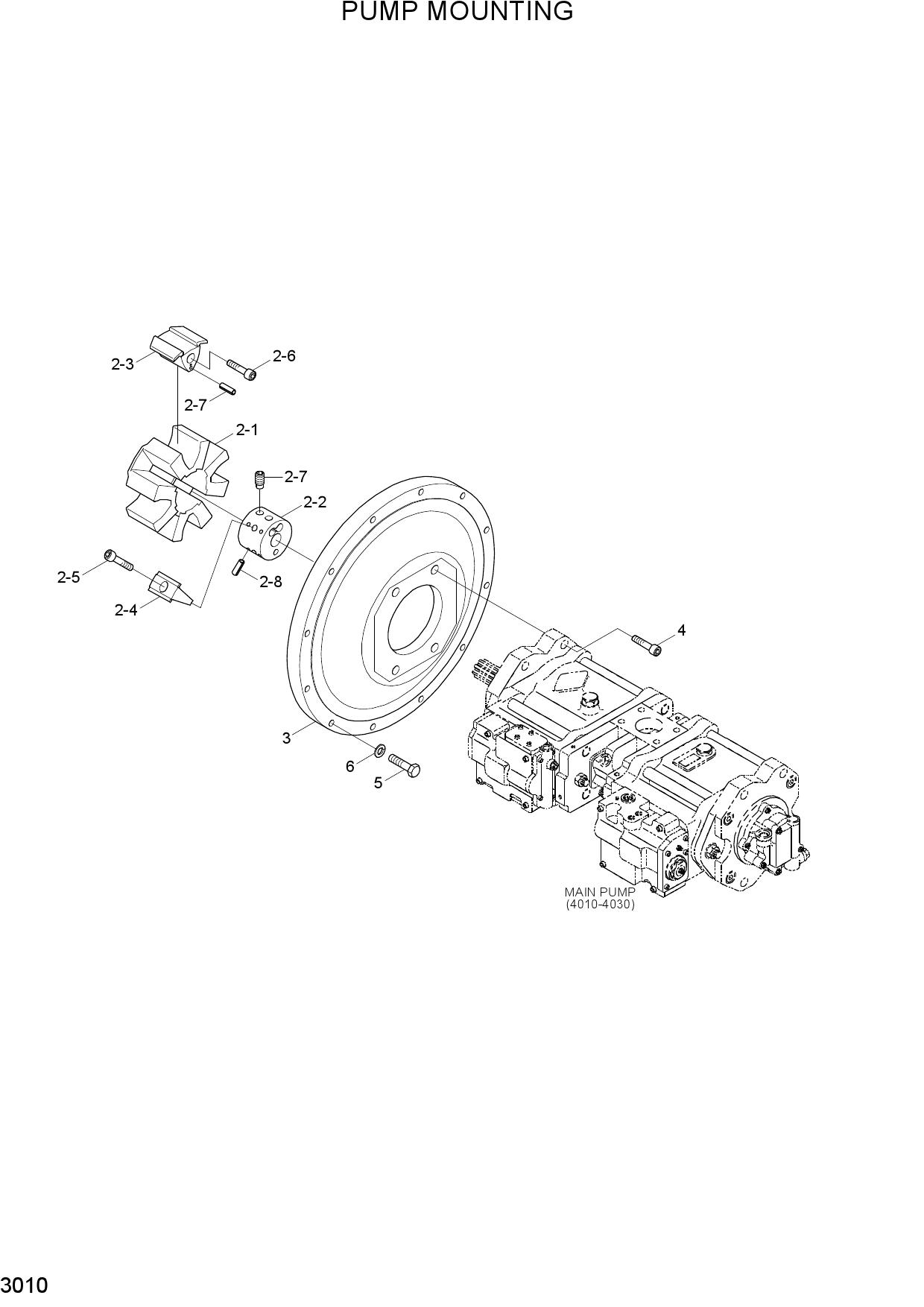

Запчасти для колесных экскаваторов Hyundai R140W-7A PUMP MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 11EM-12040 | COUPLING ASSY | |
| 2-1 | 13E6-16040 | ELEMENT | |
| 2-2 | 11E1-1508 | HUB-SPLINE | |
| 2-3 | 13E6-16050 | INSERT-A | |
| 2-4 | 13E6-16060 | INSERT-R | |
| 2-5 | S107-160402 | BOLT-SOCKET | |
| 2-6 | S107-160552 | BOLT-SOCKET | |
| 2-7 | 11E1-1511 | BOLT-CLAMP | |
| 2-8 | S472-500102 | PIN-SPRING | |
| 3 | 11N5-13011 | HOUSING | |
| 4 | S109-16045D | BOLT-SOCKET | |
| 5 | S017-100556 | BOLT-HEX | |
| 6 | S403-10200B | WASHER-PLAIN |
