- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(TRAVEL)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING 1(ADJUST BOOM)
- UPPER HYD PIPING 2(ADJUST BOOM)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(BASE 4)
- PILOT HYD PIPING(BASE 5)
- PILOT HYD PIPING(4 OUTRIGGER)
- POWER TRAIN HYD PIPING 1
- POWER TRAIN HYD PIPING 2
- LOWER HYD PIPING 1
- LOWER HYD PIPING 2
- LOWER HYD PIPING(REAR BLADE)
- LOWER HYD PIPING(REAR OUTRIGGER)
- LOWER HYD PIPING 1(F/OUT R/BLD)
- LOWER HYD PIPING 2(F/OUT R/BLD)
- LOWER HYD PIPING 1(4 OUTRIGGER)
- LOWER HYD PIPING 2(4 OUTRIGGER)
- LOWER HYD PIPING 1(F/BLD R/OUT)
- LOWER HYD PIPING 2(F/BLD R/OUT)
- LOWER HYD PIPING 1(F/BLD R/BLD)
- LOWER HYD PIPING 2(F/BLD R/BLD)
- LOWER HYD PIPING(FRONT BLADE)
- BOOM HYD PIPING(4.6M, STD)
- BOOM GREASE LUB SYSTEM(4.6M, STD)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- ARM HYD PIPING
- ARM HYD PIPING(3.0M)
- ARM SAFETY LOCK SYSTEM
- SINGLE PEDAL(DOUBLE ACTING)
- DOUBLE ACTING ATTACH PIPING KIT
- S & D/ACT ATTACH PIPING KIT(ADJUST BOOM)
- SINGLE ACTING MAIN PIPING KIT
- S/ACT MAIN PIPING KIT(ADJUST BM)
- DOUBLE ACTING MAIN PIPING KIT
- D/ACT MAIN PIPING KIT(ADJUST BM)

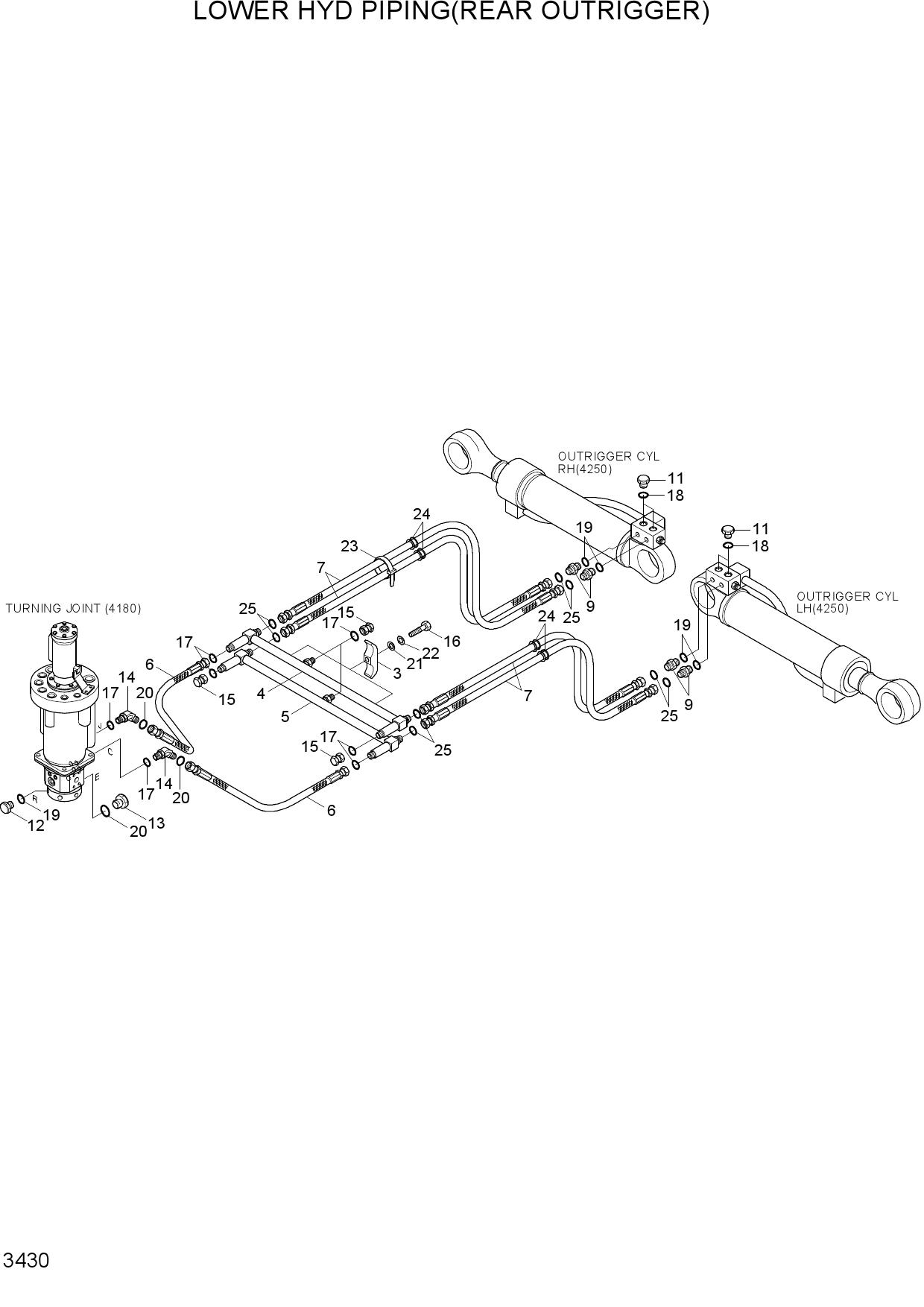

Запчасти для колесных экскаваторов Hyundai R140W-7A LOWER HYD PIPING(REAR OUTRIGGER)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 34EA-10250 | CLAMP-PIPE | |
| 4 | 31N5-71110 | PIPE ASSY | |
| 5 | 31N5-71120 | PIPE ASSY | |
| 6 | P913-087011 | HOSE ASSY-ORFS 0X0 | |
| 7 | P913-067027 | HOSE ASSY-ORFS 0X0 | |
| 9 | X500-110002 | CONNECTOR-ORFS | |
| 11 | P220-110102 | PLUG-HEX | |
| 12 | P220-110103 | PLUG-HEX | |
| 13 | P220-110104 | PLUG-HEX | |
| 14 | X500-110003 | CONNECTOR-ORFS | |
| 15 | X710-100104 | CAP-DUST | |
| 16 | S017-100606 | BOLT-HEX | |
| 17 | S621-014001 | O-RING | |
| 18 | S631-011004 | O-RING | |
| 19 | S631-014004 | O-RING | |
| 20 | S631-018004 | O-RING | |
| 21 | S403-10100B | WASHER-PLAIN | |
| 22 | S411-100006 | WASHER-SPRING | |
| 23 | S552-102370 | CLAMP-BAND | |
| 24 | S760-100800 | GROMMET | |
| 25 | S621-012001 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R140W-7A в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
