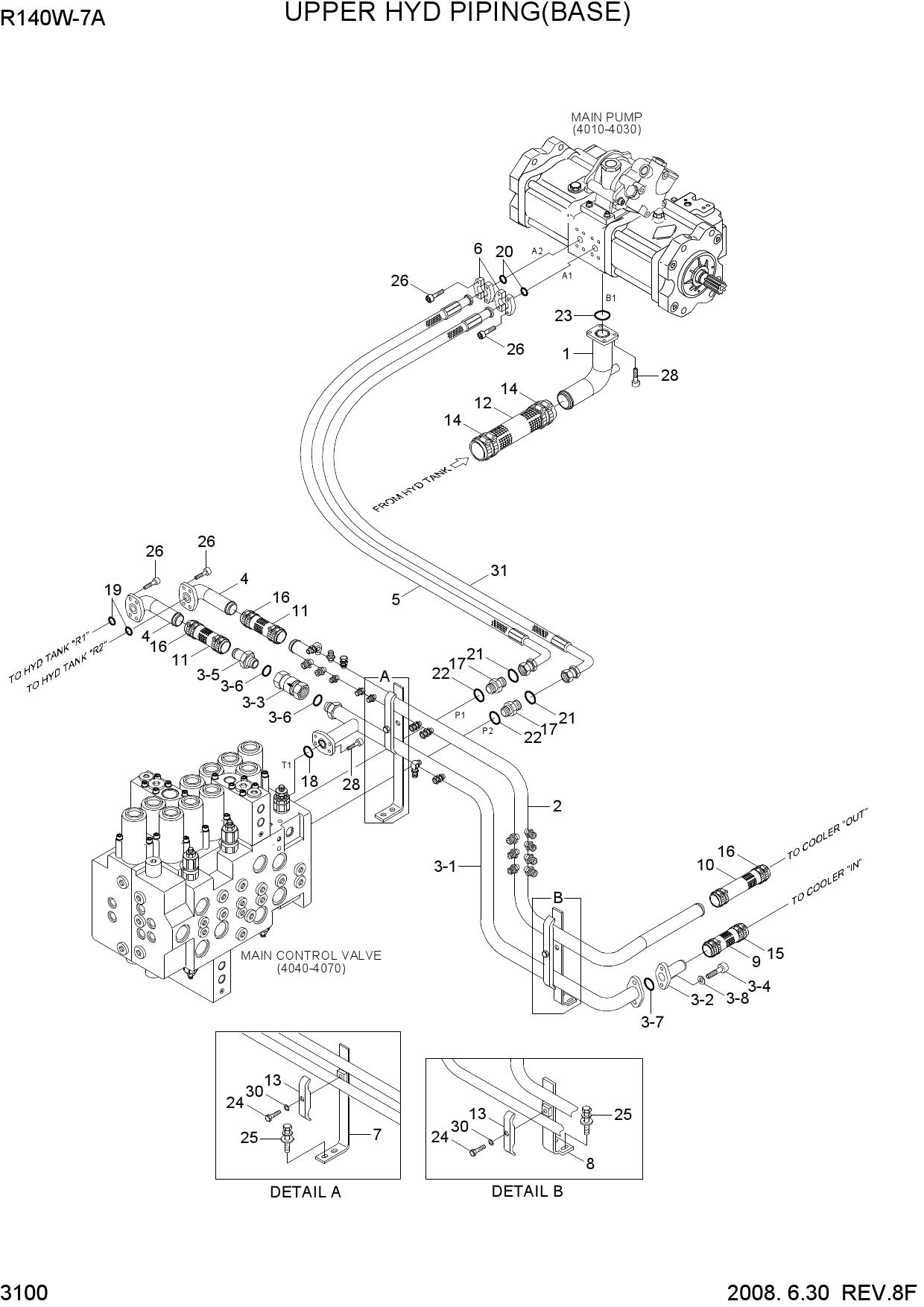

Запчасти для колесных экскаваторов Hyundai R140W-7A UPPER HYD PIPING(BASE)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N4-14310 | PIPE-SUCTION | |
| 2 | 31N4-14112 | PIPE ASSY-RETURN | |
| 3 | 31N4-14210 | RETURN PIPE SUB ASSY | |
| 3-1 | 31N4-14220 | PIPE ASSY | |
| 3-2 | 31ER-11121 | CHECK VALVE | |
| 3-3 | 31E9-0143 | VALVE-CHECK | |
| 3-4 | S109-120456 | BOLT-SOCKET | |
| 3-5 | 34EA-10120 | CONNECTOR | |
| 3-6 | S631-044004 | O-RING | |
| 3-7 | Y172-003004 | O-RING | |
| 3-8 | S403-122006 | WASHER-PLAIN | |
| 4 | 31N4-12291 | PIPE ASSY | |
| 5 | P993-127419 | HOSE ASSY-ORFS,FLG 0X90 | |
| 6 | P174-120102 | FLANGE-HYD,SPLIT | |
| 7 | 31N4-14250 | BRACKET-R/PIPE | |
| 8 | 31N4-14260 | BRACKET-R/PIPE | |
| 9 | P760-073020 | HOSE-RUBBER | |
| 9 | 31N8-13080 | HOSE-RUBBER | |
| 10 | P760-063035 | HOSE-RUBBER | |
| 11 | P760-063022 | HOSE-RUBBER LOW | |
| 12 | P760-093021 | HOSE-RUBBER | |
| 13 | 31N4-14240 | CLAMP-PIPE | |
| 14 | S572-930006 | CLAMP-HOSE,WIRE TYPE | |
| 15 | S572-640006 | CLAMP-HOSE,WIRE TYPE | |
| 16 | S572-570006 | CLAMP-HOSE,WIRE TYPE | |
| 17 | X500-110004 | CONNECTOR-ORFS | |
| 18 | Y172-003004 | O-RING | |
| 19 | Y171-027004 | O-RING | |
| 20 | Y171-019004 | O-RING | |
| 21 | S621-018001 | O-RING | |
| 22 | S631-024004 | O-RING | |
| 23 | S631-071001 | O-RING | |
| 24 | S017-120706 | BOLT-HEX | |
| 25 | S037-103026 | BOLT-W/WASHER | |
| 26 | S109-100306 | BOLT-SOCKET | |
| 28 | S109-120306 | BOLT-SOCKET | |
| 30 | S403-12200B | WASHER-PLAIN | |
| 31 | P993-127420 | HOSE ASSY-ORFS,FLG 0X90 |
