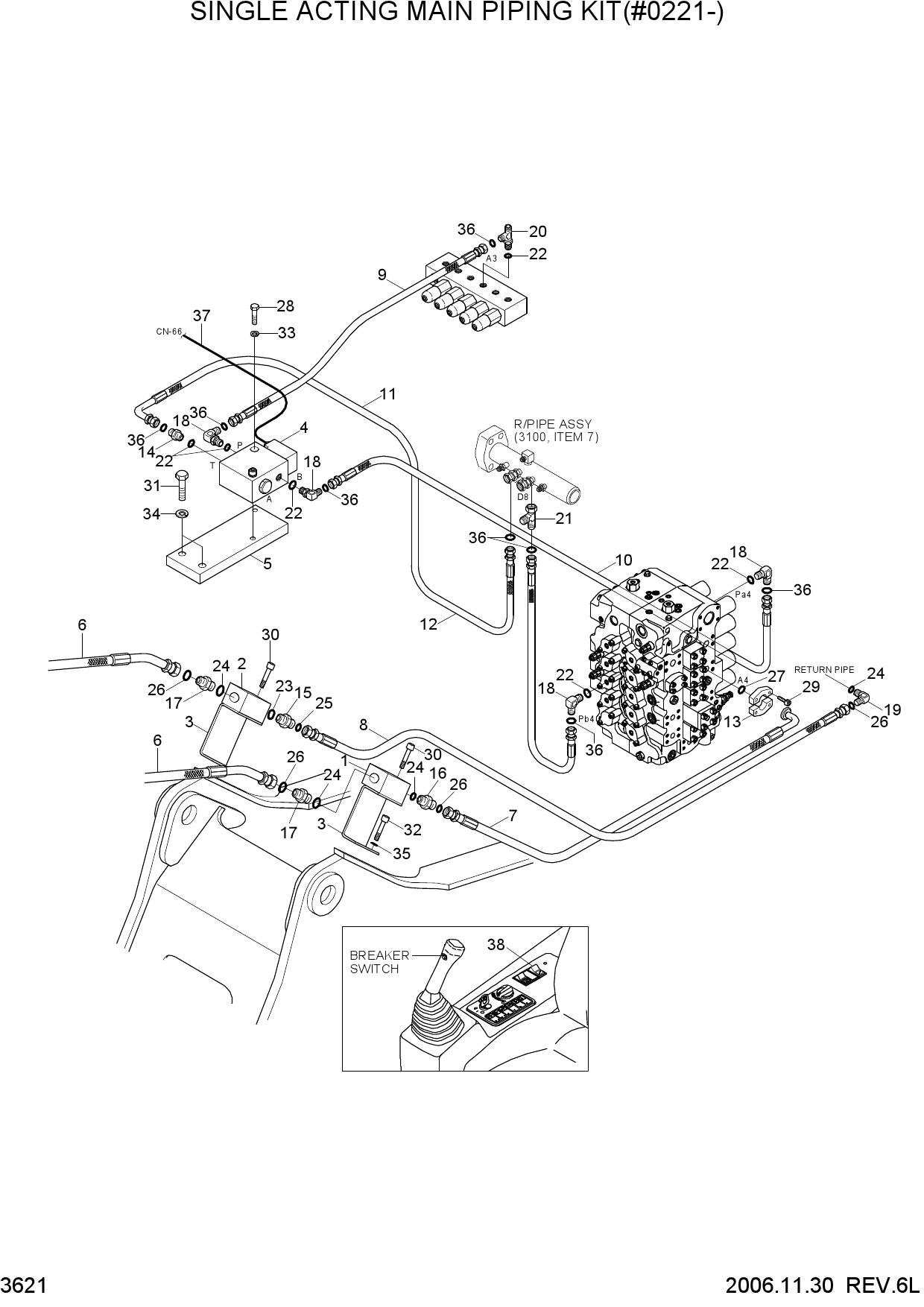

Запчасти для гусеничных экскаваторов Hyundai R450LC-7 SINGLE ACTING MAIN PIPING KIT(#0221-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31EM-91540 | JOINT ASSY-HOSE | |
| 2 | 31EM-91550 | JOINT ASSY-HOSE | |
| 3 | 31NB-91241 | BRACKET-HOSE JOINT | |
| 4 | 31N6-91230D | SOLENOID VLV-BREAKER | |
| 4-1 | EDH0427V-HD | COIL | |
| 5 | 31N6-91250 | BRACKET-SOL VLV | |
| 6 | P943-207333 | HOSE ASSY | |
| 7 | P953-166321 | HOSE ASSY | |
| 8 | P913-203037 | HOSE ASSY | |
| 9 | P930-042025 | HOSE ASSY | |
| 10 | P910-042052 | HOSE ASSY-ORFS 0X0 | |
| 11 | P930-042054 | HOSE ASSY-ORFS 0X90 | |
| 12 | P910-042047 | HOSE ASSY-ORFS 0X0 | |
| 13 | P174-160105 | FLANGE-HYD,SPLIT | |
| 14 | X500-110001 | CONNECTOR-ORFS | |
| 15 | X500-110005 | CONNECTOR-ORFS | |
| 16 | X500-110006 | CONNECTOR-ORFS | |
| 17 | X530-110006 | ELBOW-45 | |
| 18 | X520-110001 | ELBOW-90,ORFS | |
| 19 | X520-110006 | ELBOW-90,ORFS | |
| 20 | X820-045151 | TEE-R/TYPE,ORFS | |
| 21 | X840-515151 | TEE-R/TYPE,ORFS | |
| 22 | S631-011004 | O-RING | |
| 23 | S631-038004 | O-RING | |
| 24 | S631-038004 | O-RING | |
| 25 | S631-021001 | O-RING | |
| 26 | S621-025001 | O-RING | |
| 27 | Y171-024004 | O-RING | |
| 28 | S109-080456 | BOLT-SOCKET | |
| 29 | S109-100306 | BOLT-SOCKET | |
| 30 | S109-120656 | BOLT-SOCKET | |
| 31 | S017-100256 | BOLT-HEX | |
| 32 | S017-120356 | BOLT-HEX | |
| 33 | S411-080006 | WASHER-SPRING | |
| 34 | S411-100006 | WASHER-SPRING | |
| 35 | S411-120006 | WASHER-SPRING | |
| 36 | S621-011001 | O-RING | |
| 38 | 21E6-30540 | SWITCH-BREAKER |
