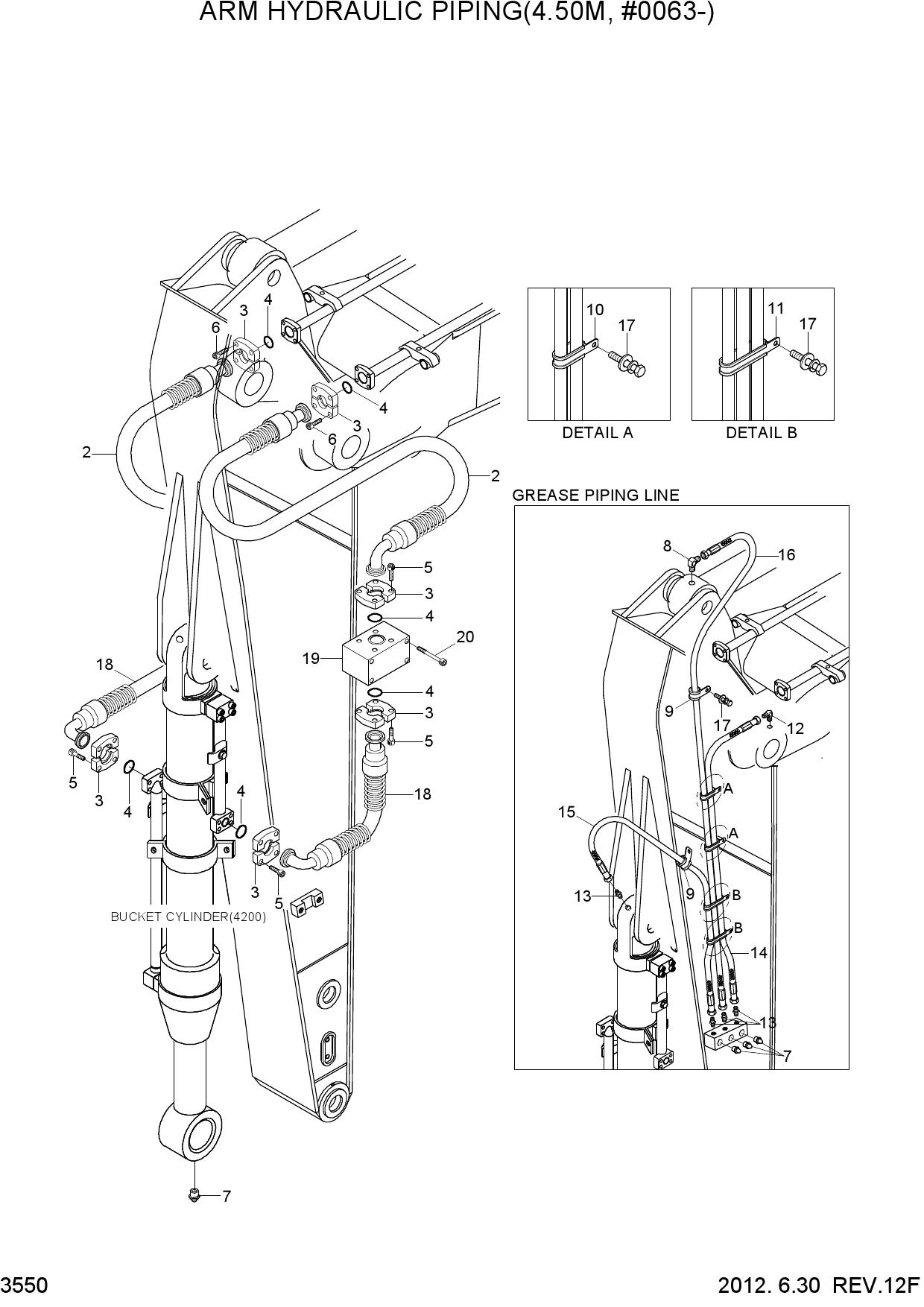

Запчасти для гусеничных экскаваторов Hyundai R450LC-7 ARM HYDRAULIC PIPING(4.50M, #0063-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | P703-167334 | HOSE ASSY-FLG 0X90 | |
| 2 | 31NB-61040 | HOSE ASSY-FLG 0X90 | |
| 2 | 31NB-61041 | HOSE ASSY | |
| 2 | 31NB-61042 | HOSE ASSY(HI-GRADE) | |
| 3 | P173-160104 | FLANGE-HYD,SPLIT | |
| 3 | P174-200106 | FLANGE-SPLIT | |
| 4 | Y171-024004 | O-RING | |
| 4 | Y171-027004 | O-RING | |
| 5 | S109-100356 | BOLT-SOCKET | |
| 5 | S109-120456 | BOLT-SOCKET | |
| 6 | S109-100456 | BOLT-SOCKET | |
| 6 | S109-120506 | BOLT-SOCKET | |
| 7 | S651-810002 | NIPPLE-GREASE | |
| 8 | 31NB-50280 | ELBOW-90 | |
| 9 | 31N8-50370 | CLAMP-HOSE | |
| 10 | 31N8-50380 | CLAMP-HOSE | |
| 11 | 31N8-50390 | CLAMP-HOSE | |
| 12 | 61E7-0059 | ELBOW-90 | |
| 13 | P010-430011 | CONNECTOR | |
| 14 | P840-042051 | HOSE ASSY-SYN THD | |
| 15 | P840-042046 | HOSE ASSY-SYN THD | |
| 16 | P840-042080 | HOSE ASSY-SYN THD | |
| 17 | S035-062022 | BOLT-W/WASHER | |
| 18 | 31NA-60040 | HOSE ASSY-FLG 0X90 | |
| 18 | P703-207420 | HOSE ASSY-FLG 0X90 | |
| 19 | 31NA-60060 | BLOCK | |
| 19 | 31NA-61060 | BLOCK | |
| 20 | S109-120906 | BOLT-SOCKET |
