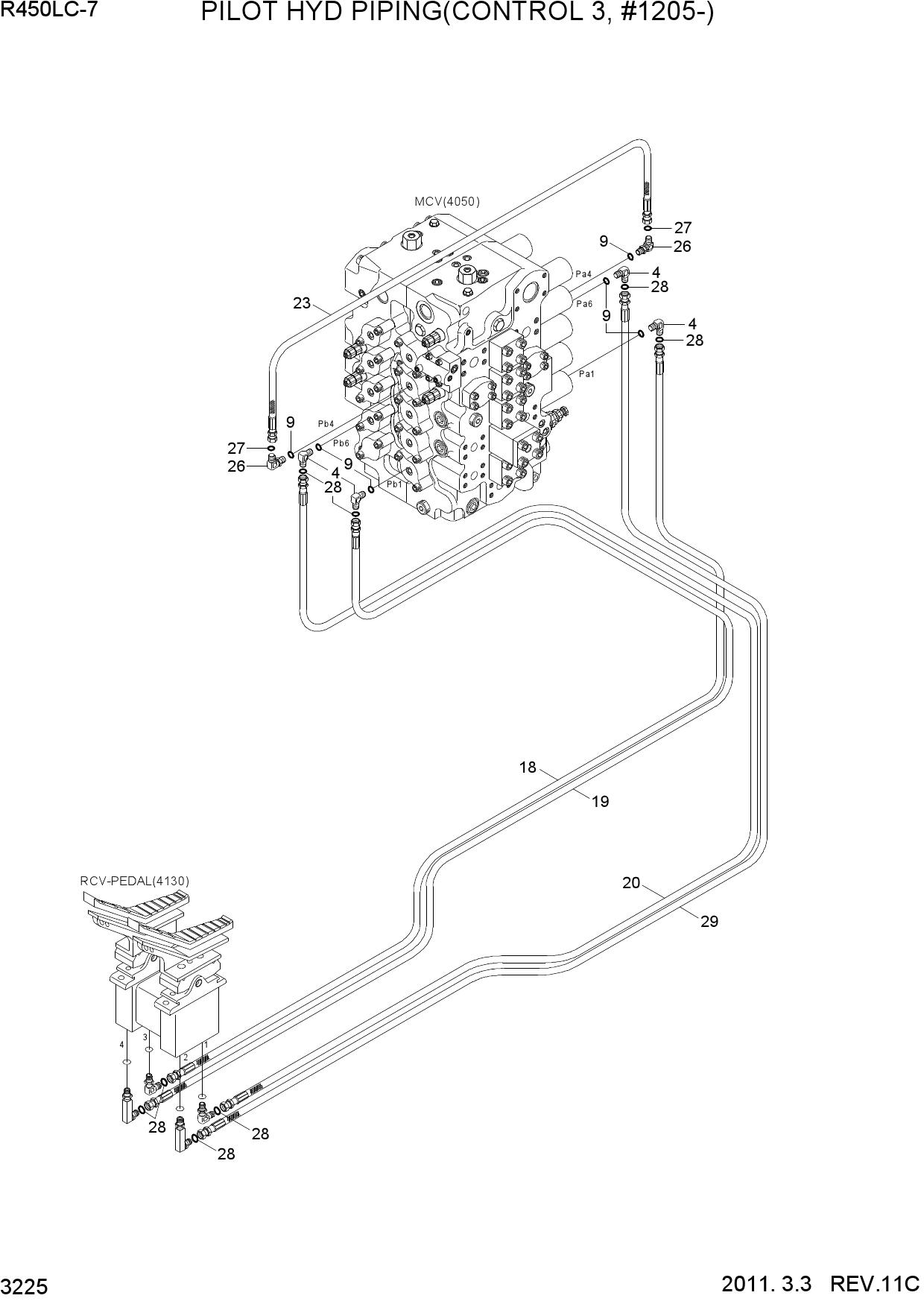

Запчасти для гусеничных экскаваторов Hyundai R450LC-7 PILOT HYD PIPING(CONTROL 3, #1205-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | X520-110002 | ELBOW-90,ORFS | |
| 9 | S631-014004 | O-RING | |
| 18 | X400-062070 | HOSE ASSY-SYNFLEX,ORFS | |
| 19 | X400-062079 | HOSE ASSY-SYNFLEX,ORFS | |
| 20 | X400-062081 | HOSE ASSY-SYNF,ORFS | |
| 23 | X400-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 26 | X520-110012 | ELBOW-90,ORFS | |
| 27 | S621-011001 | O-RING | |
| 28 | S621-012001 | O-RING | |
| 29 | X400-062076 | HOSE ASSY-SYNFLEX,ORFS |
