- PUMP MOUNTING(-#0463)
- PUMP MOUNTING(#0464-)
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE, -#0170)
- UPPER HYDRAULIC PIPING(BASE, #0171-0463)
- UPPER HYDRAULIC PIPING(BASE, #0464-)
- UPPER HYDRAULIC PIPING(ATTACH, -#0463)
- UPPER HYDRAULIC PIPING(ATTACH, #0464-)
- UPPER HYDRAULIC PIPING(TRAVEL)
- PILOT HYD PIPING(CONTROL 1, -#1204)
- PILOT HYD PIPING(CONTROL 1, #1205-)
- PILOT HYD PIPING(CONTROL 2, -#1204)
- PILOT HYD PIPING(CONTROL 2, #1205-)
- PILOT HYD PIPING(CONTROL 3, -#1204)
- PILOT HYD PIPING(CONTROL 3, #1205-)
- PILOT HYDRAULIC PIPING(BASE 1)
- PILOT HYDRAULIC PIPING(BASE 2, -#0463)
- PILOT HYD PIPING(BASE 2, #0464-1204)
- PILOT HYD PIPING(BASE 2, #1205-)
- PILOT HYDRAULIC PIPING(BASE 3, -#0463)
- PILOT HYDRAULIC PIPING(BASE 3, #0464-)
- PILOT HYDRAULIC PIPING(BASE 4, -#0408)
- PILOT HYD PIPING(BASE 4, #0409-1204)
- PILOT HYD PIPING(BASE 4, #1205-)
- TRAVEL HYDRAULIC PIPING(R450LC-7)
- TRAVEL HYDRAULIC PIPING(R450-7, #0023-)
- BOOM HYD PIPING(7.06M, STD, -#0030)
- BOOM HYD PIPING(7.06M, STD, #0131-#0719)
- BOOM HYD PIPING(7.06M, STD, #0720-)
- BOOM GREASE LUB SYS(7.06M, STD, -#0719)
- BOOM GREASE LUB SYS(7.06M, STD, #0720-)
- BOOM SAFETY LOCK SYSTEM(-#0011)
- BOOM SAFETY LOCK SYSTEM(#0012-)
- BOOM HYDRAULIC PIPING(6.55M, -#0130)
- BOOM HYDRAULIC PIPING(6.55M, #0131-)
- BOOM HYDRAULIC PIPING(9.0M, #0086-)
- BOOM HYDRAULIC PIPING(11.5M, #0999-)
- BOOM GREASE LUB SYSTEM(6.55M)
- BOOM GREASE LUB SYSTEM(9.0M, #0086-)
- BOOM GREASE LUB SYSTEM(11.5M, #0999-)
- QUICK CLAMP HYD PIPING(#0738-)
- QUICK CLAMP(HOOK TYPE, #0738-)
- QUICK CLAMP(CLOSE TYPE, #0738-)
- ARM HYDRAULIC PIPING(3.38M, STD)
- ARM SAFETY LOCK SYSTEM(-#0108)
- ARM SAFETY LOCK SYSTEM(#0109-)
- ARM HYDRAULIC PIPING(2.40M, #0005-)
- ARM HYDRAULIC PIPING(2.90M, #0063-)
- ARM HYDRAULIC PIPING(4.00M, #0063-)
- ARM HYDRAULIC PIPING(4.50M, #0063-)
- ARM HYDRAULIC PIPING(5.85M, #0086-)
- ARM HYDRAULIC PIPING(8.50M, #0999-)
- SINGLE ACTING MAIN PIPING KIT(-#0220)
- SINGLE ACTING MAIN PIPING KIT(#0221-)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL
- CENTRAL GREASE LUB SYSTEM 1
- CENTRAL GREASE LUB SYSTEM 2
- CENTRAL GREASE LUB SYSTEM 3

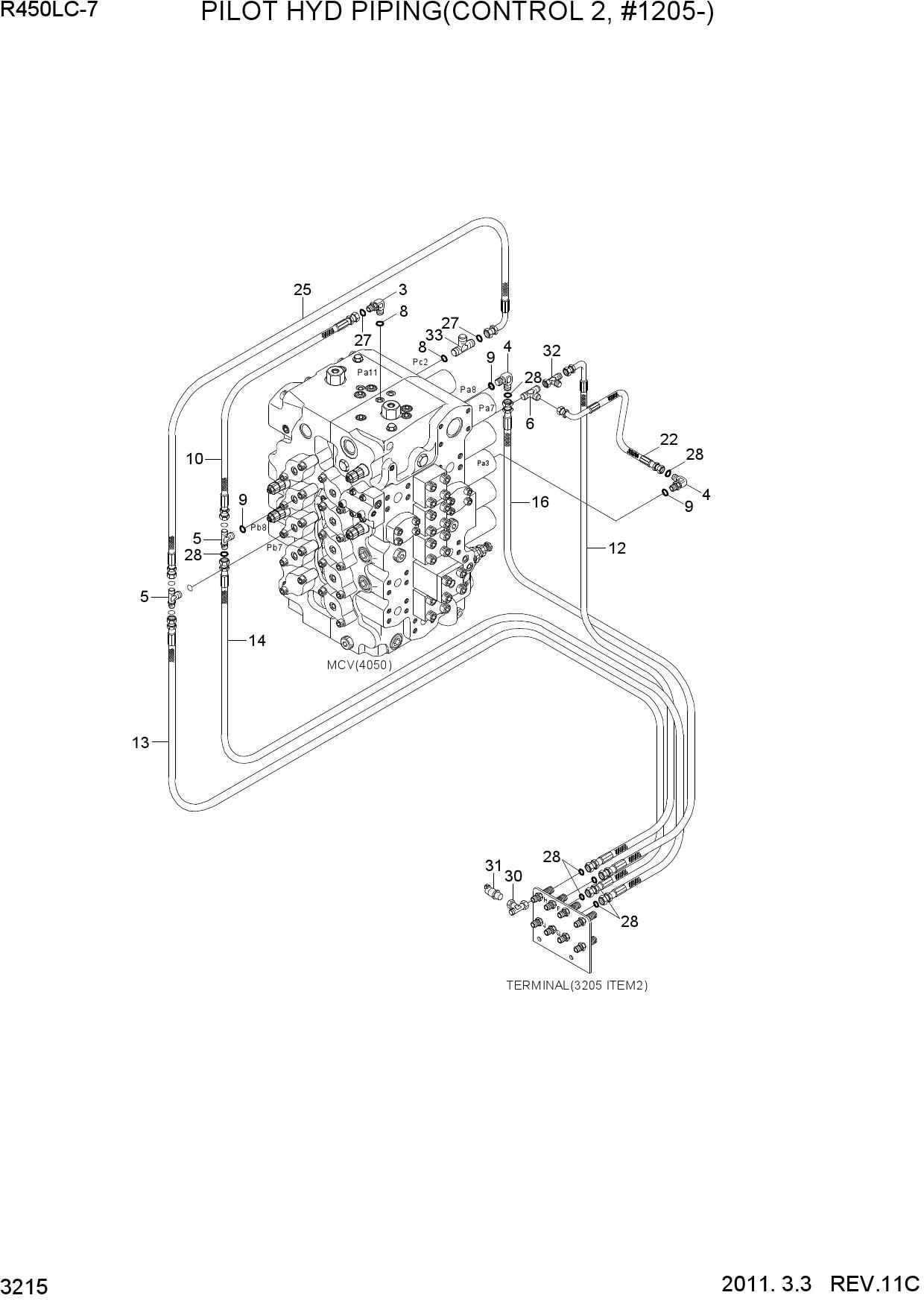

Запчасти для гусеничных экскаваторов Hyundai R450LC-7 PILOT HYD PIPING(CONTROL 2, #1205-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | X520-110001 | ELBOW-90,ORFS | |
| 4 | X520-110001 | ELBOW-90,ORFS | |
| 5 | X820-065251 | TEE-R/TYPE,ORFS | |
| 6 | X820-065252 | TEE-R/TYPE,ORFS | |
| 8 | S631-011004 | O-RING | |
| 9 | S631-014004 | O-RING | |
| 10 | X420-042011 | HOSE ASSY-ORFS 0X90 | |
| 12 | X400-062035 | HOSE ASSY-SYNF,ORFS | |
| 13 | X400-062041 | HOSE ASSY-SYNFLEX,ORFS | |
| 14 | X400-062042 | HOSE ASSY-SYNFLEX,ORFS | |
| 16 | X400-062036 | HOSE ASSY-SYNF,ORFS | |
| 22 | X420-062016 | HOSE ASSY-ORFS 0X90 | |
| 25 | X420-042023 | HOSE ASSY-SYNFLEX,ORFS | |
| 27 | S621-011001 | O-RING | |
| 28 | S621-012001 | O-RING | |
| 30 | 31N6-66090 | TEE-TEST | |
| 31 | 31Q8-40520 | PRESSURE SENSOR | |
| 32 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 33 | X820-045151 | TEE-R/TYPE,ORFS |
