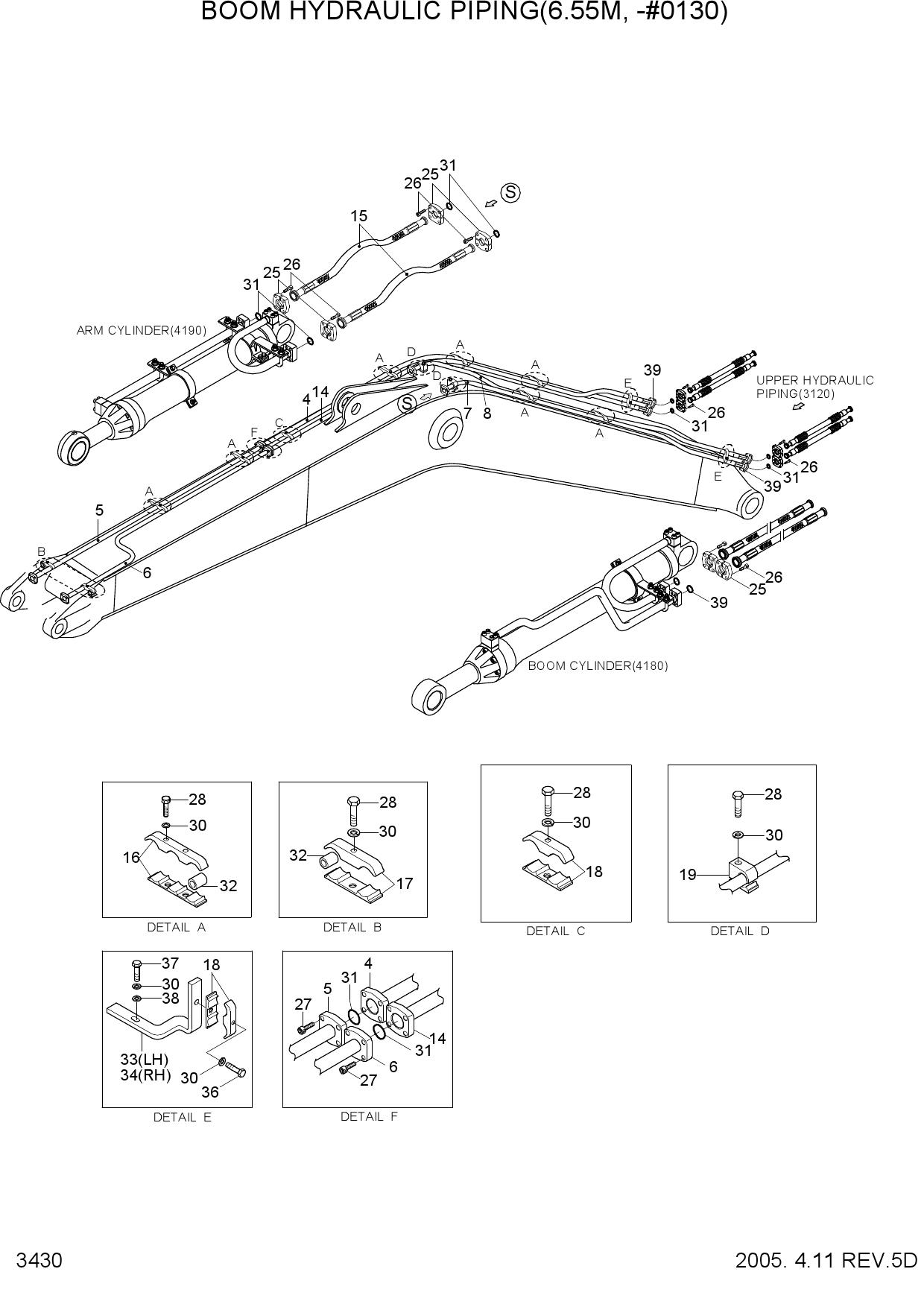

Запчасти для гусеничных экскаваторов Hyundai R450LC-7 BOOM HYDRAULIC PIPING(6.55M, -#0130)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31NB-50330 | PIPE WA | |
| 5 | 31NB-50340 | PIPE WA | |
| 6 | 31NB-50350 | PIPE WA | |
| 7 | 31NB-50360 | PIPE WA | |
| 8 | 31NB-50370 | PIPE WA | |
| 14 | 31NB-50380 | PIPE WA | |
| 16 | 31N6-50340 | CLAMP ASSY | |
| 17 | 31NB-50271 | CLAMP ASSY | |
| 18 | 31N6-50310 | CLAMP ASSY | |
| 19 | 31N6-50300 | CLAMP ASSY | |
| 25 | P173-160104 | FLANGE-HYD,SPLIT | |
| 26 | S109-100456 | BOLT-SOCKET | |
| 27 | S109-100556 | BOLT-SOCKET | |
| 28 | S017-160752 | BOLT-HEX | |
| 30 | S411-160002 | WASHER-SPRING | |
| 31 | Y171-024004 | O-RING | |
| 32 | 31N5-50240 | SPACER-PIPE | |
| 33 | 31NB-50253 | BRACKET-PIPE MTG LH | |
| 34 | 31NB-50263 | BRACKET-PIPE MTG RH | |
| 36 | S017-160802 | BOLT-HEX | |
| 37 | S017-160402 | BOLT-HEX | |
| 38 | S403-162002 | WASHER-PLAIN | |
| 39 | 31E9-01320 | FLANGE-SPLIT |
