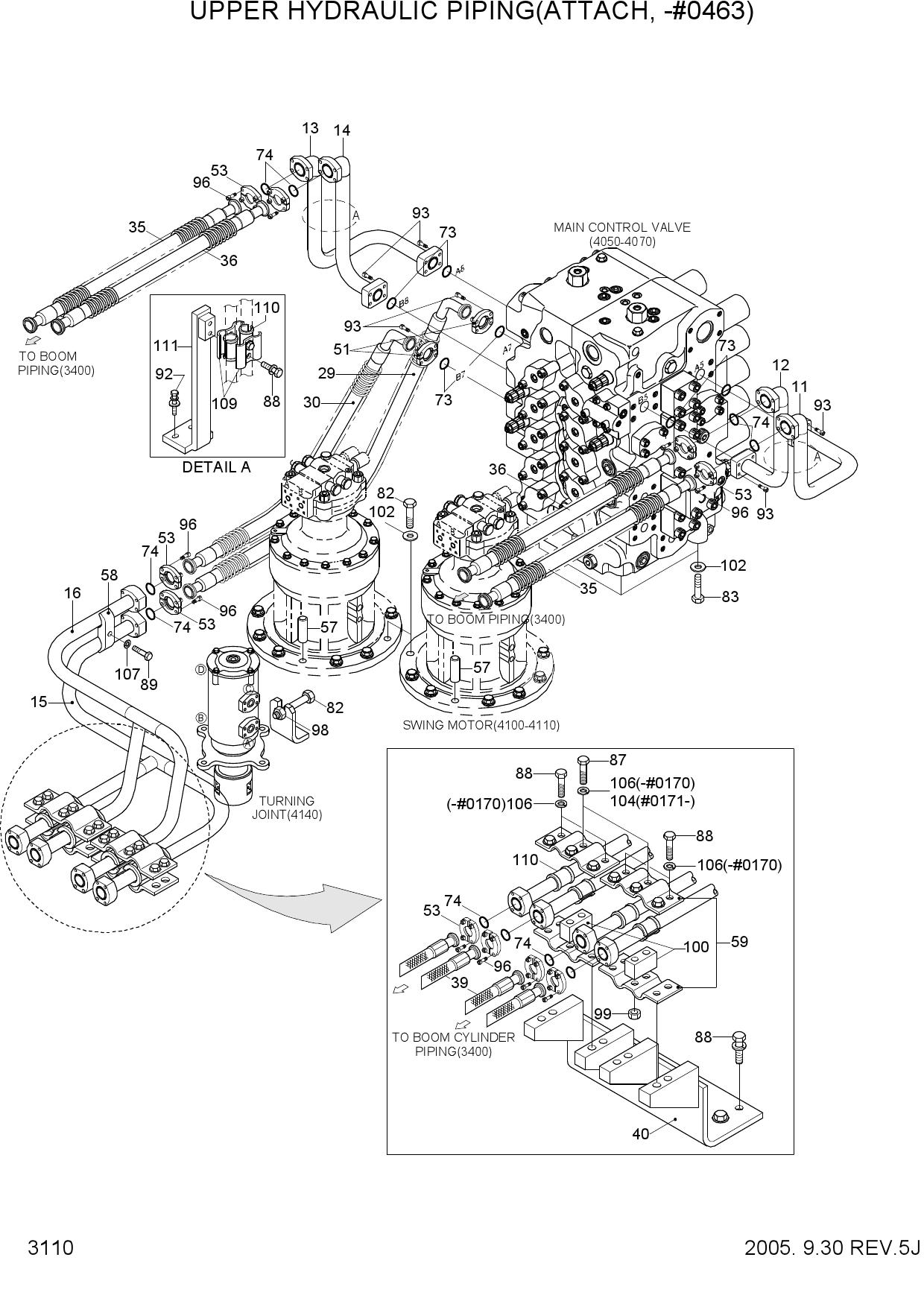

Запчасти для гусеничных экскаваторов Hyundai R450LC-7 UPPER HYDRAULIC PIPING(ATTACH, -#0463)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 11 | 31NB-12070 | PIPE WA | |
| 12 | 31NB-12080 | PIPE WA | |
| 13 | 31NB-12090 | PIPE WA | |
| 14 | 31NB-12100 | PIPE WA | |
| 15 | 31NB-12340 | PIPE WA | |
| 16 | 31NB-12350 | PIPE WA | |
| 29 | 31NB-12230 | HOSE ASSY | |
| 29 | 31NB-12231 | HOSE ASSY | |
| 30 | 31NB-12240 | HOSE ASSY | |
| 30 | 31NB-12241 | HOSE ASSY | |
| 35 | 31NB-12250 | HOSE ASSY-1"ID(FL 2-1") | |
| 35 | 31NB-12450 | HOSE ASSY | |
| 36 | P683-167333 | HOSE ASSY-FLG(0X0) | |
| 36 | 31NB-12440 | HOSE ASSY | |
| 39 | 31NB-12420 | HOSE ASSY | |
| 39 | 31NB-12430 | HOSE ASSY-1"ID(FL 1"X 1") | |
| 39 | 31NB-12431 | HOSE ASSY | |
| 40 | 34E7-01342 | BRACKET WA | |
| 51 | P174-200106 | FLANGE-SPLIT | |
| 53 | P173-160104 | FLANGE-HYD,SPLIT | |
| 57 | 31EN-12360 | PIN-DOWEL | |
| 58 | 31EM-12170 | CLAMP-PIPE | |
| 59 | 34E7-02720 | CLAMP | |
| 73 | Y171-027004 | O-RING | |
| 74 | Y171-024004 | O-RING | |
| 82 | S017-200802 | BOLT-HEX | |
| 82 | S017-20080D | BOLT-HEX | |
| 83 | S017-200552 | BOLT-HEX | |
| 83 | S017-20055D | BOLT-HEX | |
| 87 | S017-120506 | BOLT-HEX | |
| 88 | S037-123056 | BOLT-W/WASHER | |
| 89 | S017-100756 | BOLT-HEX | |
| 92 | S037-103026 | BOLT-W/WASHER | |
| 93 | S109-120406 | BOLT-SOCKET | |
| 96 | S109-100306 | BOLT-SOCKET | |
| 98 | S207-201006 | NUT-HEX | |
| 99 | S205-121006 | NUT-HEX | |
| 100 | 34E7-02730 | BLOCK | |
| 102 | S441-200006 | WASHER-HARDENED | |
| 104 | S441-120006 | WASHER-HARDENED | |
| 106 | S411-120002 | WASHER-SPRING | |
| 107 | S411-100006 | WASHER-SPRING | |
| 109 | 34E7-01390 | CLAMP | |
| 110 | 34E7-03510 | GROMMET | |
| 111 | 31NB-12390 | BRACKET WA |
