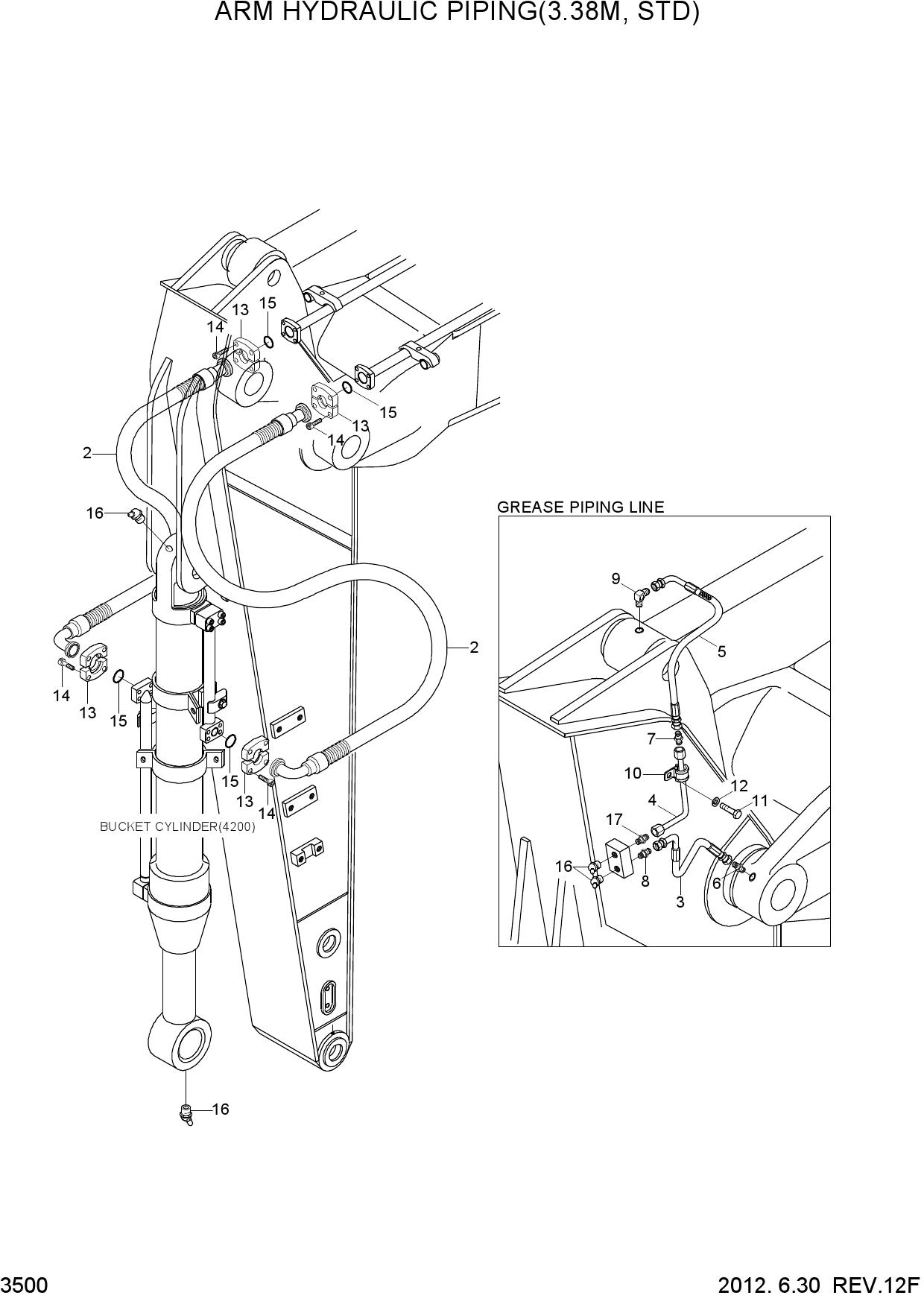

Запчасти для гусеничных экскаваторов Hyundai R450LC-7 ARM HYDRAULIC PIPING(3.38M, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | P703-207437 | HOSE ASSY-FLG 0X90 | |
| 2 | 31NB-61050 | HOSE ASSY-FLG 0X90 | |
| 2 | 31NB-61051 | HOSE ASSY | |
| 2 | 31NB-61052 | HOSE ASSY(HI-GRADE) | |
| 3 | P420-042011 | HOSE ASSY-COMP 0X90 | |
| 3 | P860-042012 | HOSE ASSY-SYN 0X90 | |
| 4 | 31NB-60120 | PIPE ASSY | |
| 5 | P420-042011 | HOSE ASSY-COMP 0X90 | |
| 5 | P840-042013 | HOSE ASSY-SYN THD | |
| 6 | 61E7-0059 | ELBOW-90 | |
| 7 | E131-0626 | CONNECTOR | |
| 8 | E131-0625 | CONNECTOR | |
| 9 | P010-430011 | CONNECTOR | |
| 9 | 31NB-50280 | ELBOW-90 | |
| 10 | 61E7-0133 | CLAMP | |
| 11 | S017-120202 | BOLT-HEX | |
| 12 | S411-120002 | WASHER-SPRING | |
| 13 | P173-160104 | FLANGE-HYD,SPLIT | |
| 13 | P174-200106 | FLANGE-SPLIT | |
| 14 | S109-100306 | BOLT-SOCKET | |
| 14 | S109-120506 | BOLT-SOCKET | |
| 15 | Y171-024004 | O-RING | |
| 15 | Y171-027004 | O-RING | |
| 16 | S651-810002 | NIPPLE-GREASE | |
| 16 | S651-810002 | NIPPLE-GREASE | |
| 17 | P010-430011 | CONNECTOR |
