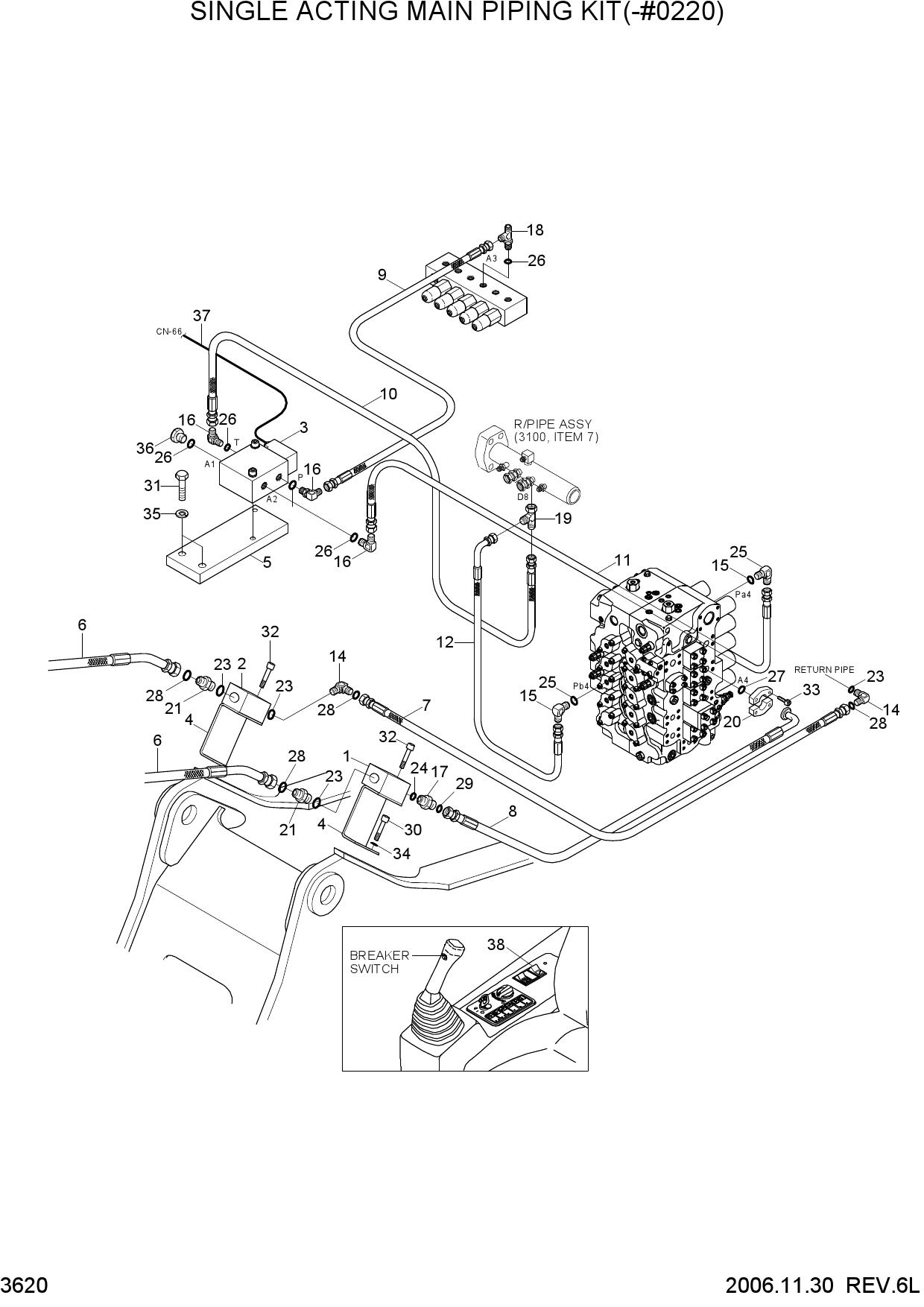

Запчасти для гусеничных экскаваторов Hyundai R450LC-7 SINGLE ACTING MAIN PIPING KIT(-#0220)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31EM-91540 | JOINT ASSY-HOSE | |
| 2 | 31EM-91550 | JOINT ASSY-HOSE | |
| 3 | 31N6-91230D | SOLENOID VLV-BREAKER | |
| 3-1 | EDH0427V-HD | COIL | |
| 4 | 31NB-91241 | BRACKET-HOSE JOINT | |
| 5 | 31N6-91250 | BRACKET-SOL VLV | |
| 6 | P973-206333 | HOSE ASSY-ORFSXFLG | |
| 7 | P910-206037 | HOSE ASSY-ORFS 0X45 | |
| 8 | 31NB-91251 | HOSE ASSY | |
| 9 | P420-042030 | HOSE ASSY-COMP 0X90 | |
| 10 | P420-042028 | HOSE ASSY-COMP 0X90 | |
| 11 | P400-042029 | HOSE ASSY-COMPACT | |
| 12 | P420-042030 | HOSE ASSY-COMP 0X90 | |
| 14 | X520-110006 | ELBOW-90,ORFS | |
| 15 | P020-110012 | ELBOW-90 | |
| 16 | P020-110001 | ELBOW-90 | |
| 17 | X530-110005 | ELBOW-45,ORFS | |
| 18 | P320-040404 | TEE-RUN TYPE | |
| 19 | 32E6-10460 | TEE-SWEVEL NUT | |
| 20 | P174-160105 | FLANGE-HYD,SPLIT | |
| 21 | X500-120006 | CONNECTOR-ORFS | |
| 23 | S631-038004 | O-RING | |
| 24 | S631-029004 | O-RING | |
| 25 | S631-014004 | O-RING | |
| 26 | S631-011004 | O-RING | |
| 27 | Y171-024004 | O-RING | |
| 28 | S621-025001 | O-RING | |
| 29 | S621-021001 | O-RING | |
| 30 | S017-120352 | BOLT-HEX | |
| 31 | S017-100252 | BOLT-HEX | |
| 32 | S109-120656 | BOLT-SOCKET | |
| 33 | S109-100306 | BOLT-SOCKET | |
| 34 | S411-120002 | WASHER-SPRING | |
| 35 | S411-100002 | WASHER-SPRING | |
| 36 | P220-110102 | PLUG-HEX | |
| 37 | 21N8-10160 | HARNESS-EXTENTION | |
| 38 | 21E6-30540 | SWITCH-BREAKER |
