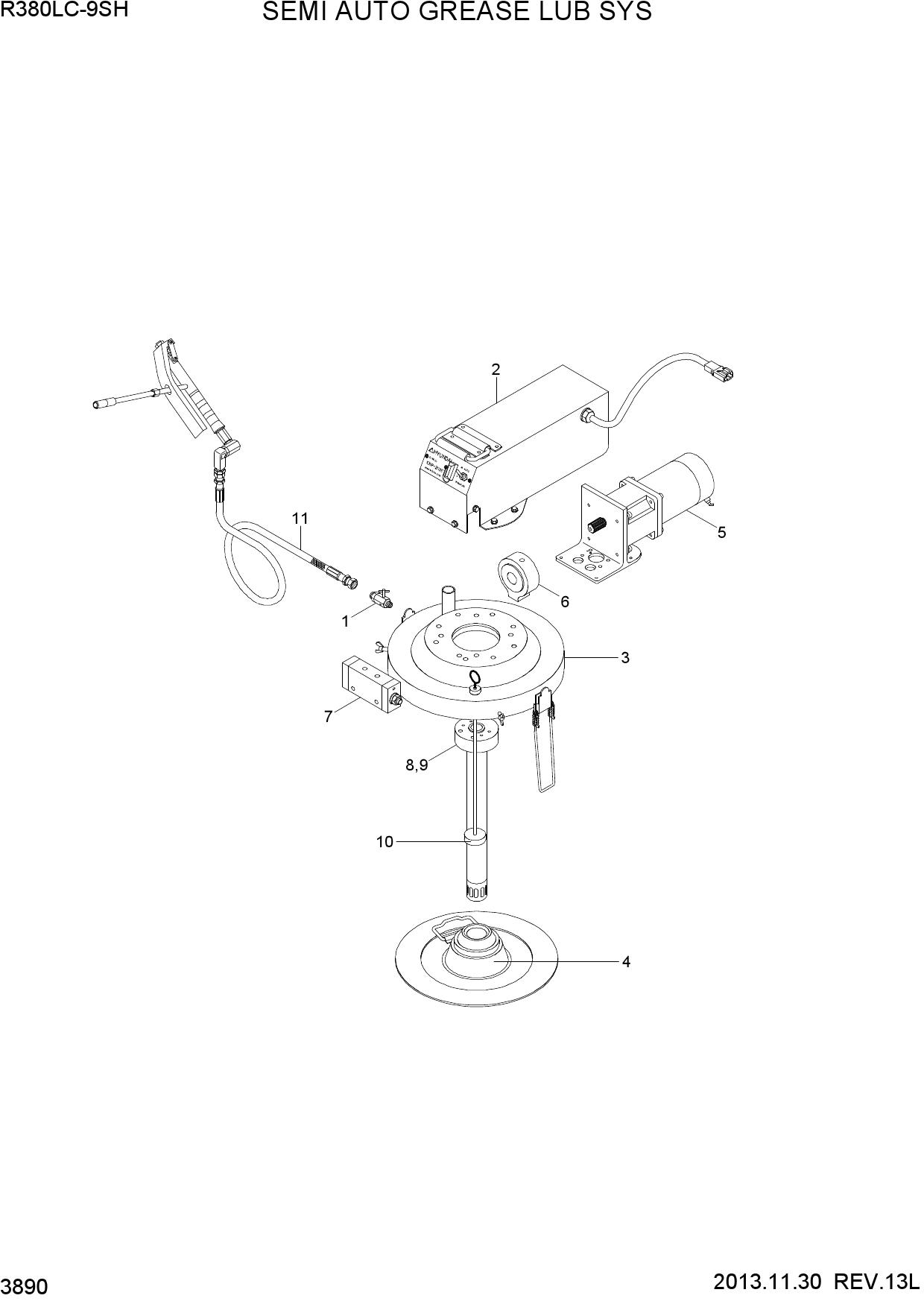

Запчасти для гусеничных экскаваторов Hyundai R380LC-9SH SEMI AUTO GREASE LUB SYS
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 32QB-91600 | SEMI AUTO GREASE PIP KIT | |
| 1 | XKCE-00250 | INLINE CHECK & AIR VENT | |
| 2 | XKCE-00589 | COVER-PUMP | |
| 3 | XKCE-00591 | PLATE-MAIN | |
| 4 | XKCE-00258 | PLATE-FOLLOWER | |
| 5 | XKCE-00590 | MOTOR ASSY | |
| 6 | XKCE-00279 | CAM ASSY | |
| 7 | XKCE-00277 | DISTRIBUTOR ASSY | |
| 8 | XKCE-00285 | PISTON ASSY | |
| 9 | XKCE-00286 | CYLINDER ASSY | |
| 10 | XKCE-00276 | GAUGE-GREASE LEVEL | |
| 11 | XKCE-00592 | GREASE GUN ASSY |
