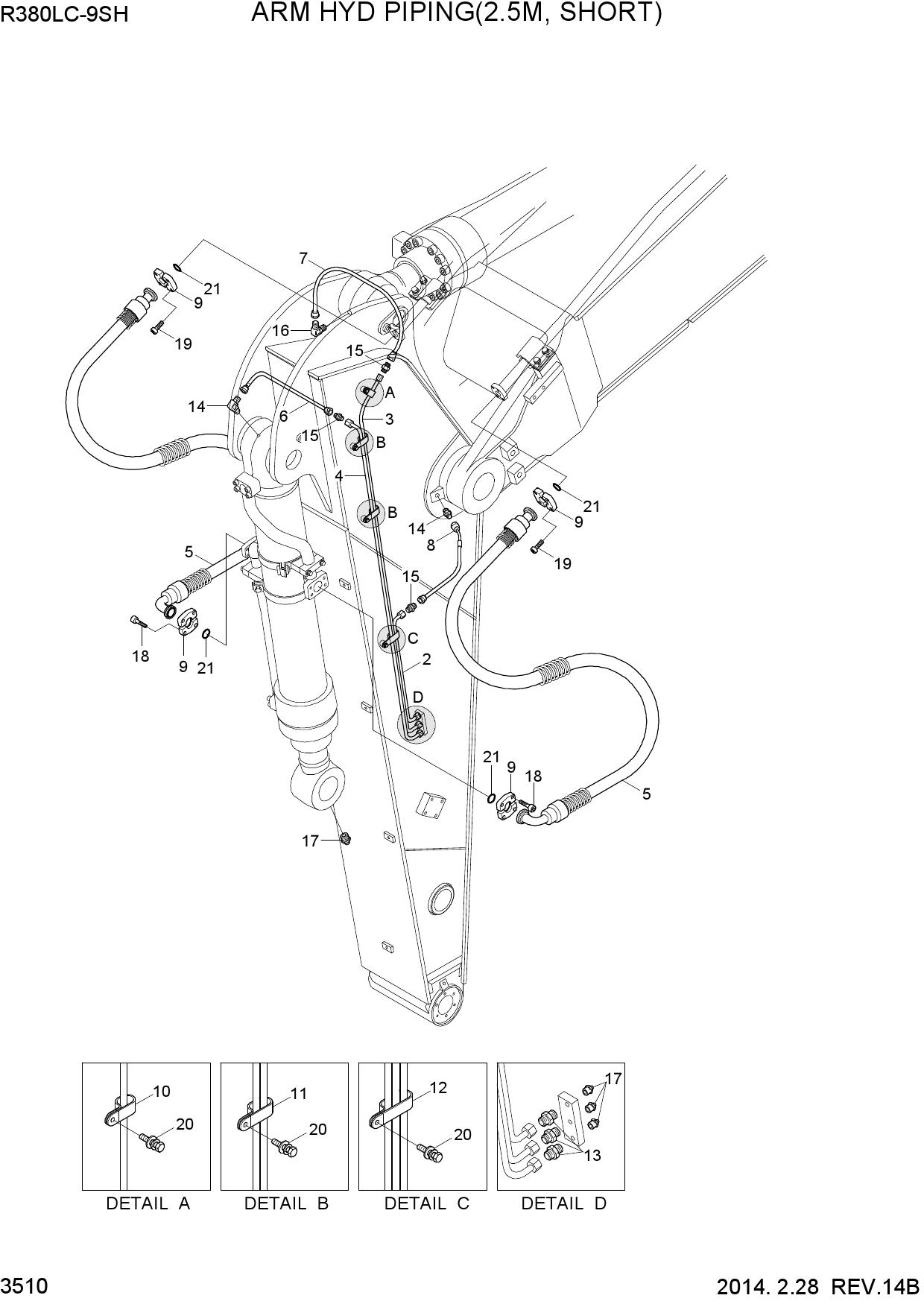

Запчасти для гусеничных экскаваторов Hyundai R380LC-9SH ARM HYDRAULIC PIPING(2.5M, SHORT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31QA-60230 | PIPE ASSY | |
| 3 | 31QA-60241 | PIPE ASSY | |
| 4 | 31QA-60250 | PIPE ASSY | |
| 5 | 31QA-61031 | HOSE ASSY | |
| 5 | 31QA-61120 | HOSE ASSY(HI-GRADE) | |
| 5 | 31QA-64100 | HOSE ASSY | |
| 5 | 31QA-64110 | HOSE ASSY(HI-GRADE) | |
| 6 | P843-042012 | HOSE ASSY-SYN 0X0 | |
| 7 | P843-042013 | HOSE ASSY-SYN 0X0 | |
| 8 | P860-042011 | HOSE ASSY-SYN 0X90 | |
| 9 | P174-200106 | FLANGE-SPLIT | |
| 10 | 31Q8-60230 | CLAMP-TUBE | |
| 11 | 31Q8-60160 | CLAMP-TUBE | |
| 12 | 31Q8-60170 | CLAMP-TUBE | |
| 13 | 31Q8-60150 | CONNECTOR-TUBE | |
| 14 | P010-430011 | CONNECTOR | |
| 15 | E131-0626 | CONNECTOR | |
| 16 | 31NB-50280 | ELBOW-90 | |
| 17 | S651-810002 | NIPPLE-GREASE | |
| 18 | S109-120456 | BOLT-SOCKET | |
| 19 | S109-120506 | BOLT-SOCKET | |
| 20 | S035-082026 | BOLT-W/WASHER | |
| 21 | Y171-027004 | O-RING | |
| 21 | 31Q8-02700 | O-RING |
