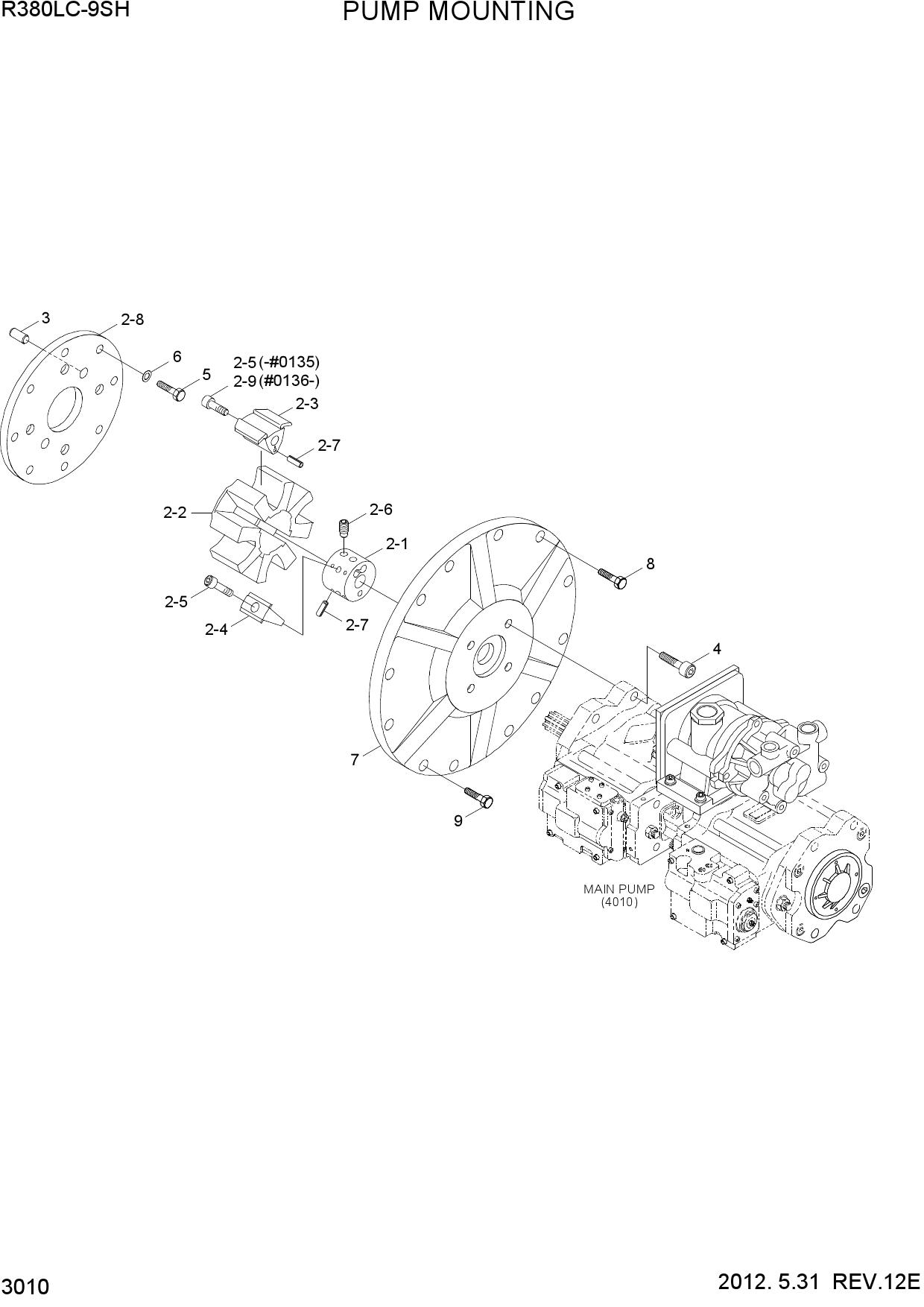

Запчасти для гусеничных экскаваторов Hyundai R380LC-9SH PUMP MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 11E9-15022 | COUPLING ASSY | |
| 2 | 11E9-15023 | COUPLING ASSY | |
| 2-1 | 11E9-15080 | HUB | |
| 2-1 | 11E9-15081 | HUB | |
| 2-2 | 11E9-15091 | ELEMENT | |
| 2-2 | 11E9-15092 | ELEMENT | |
| 2-3 | 11E9-15101 | INSERT-A | |
| 2-3 | 11E9-15102 | INSERT-A | |
| 2-4 | 11E9-15111 | INSERT-R | |
| 2-4 | 11E9-15112 | INSERT-R | |
| 2-5 | S109-20050D | BOLT-SOCKET | |
| 2-5 | S109-20060D | BOLT-SOCKET | |
| 2-6 | 11E9-1507 | BOLT-CLAMPING | |
| 2-7 | S472-800162 | PIN-SPRING | |
| 2-8 | E211-1503 | PLATE | |
| 2-9 | S109-20055D | BOLT-SOCKET | |
| 3 | S472-910202 | PIN-SPRING | |
| 4 | S109-20060D | BOLT-SOCKET | |
| 5 | S017-100356 | BOLT-HEX | |
| 6 | S403-10200B | WASHER-PLAIN | |
| 7 | E211-1502 | HOUSING | |
| 8 | S017-100756 | BOLT-HEX | |
| 9 | S017-100706 | BOLT-HEX |
