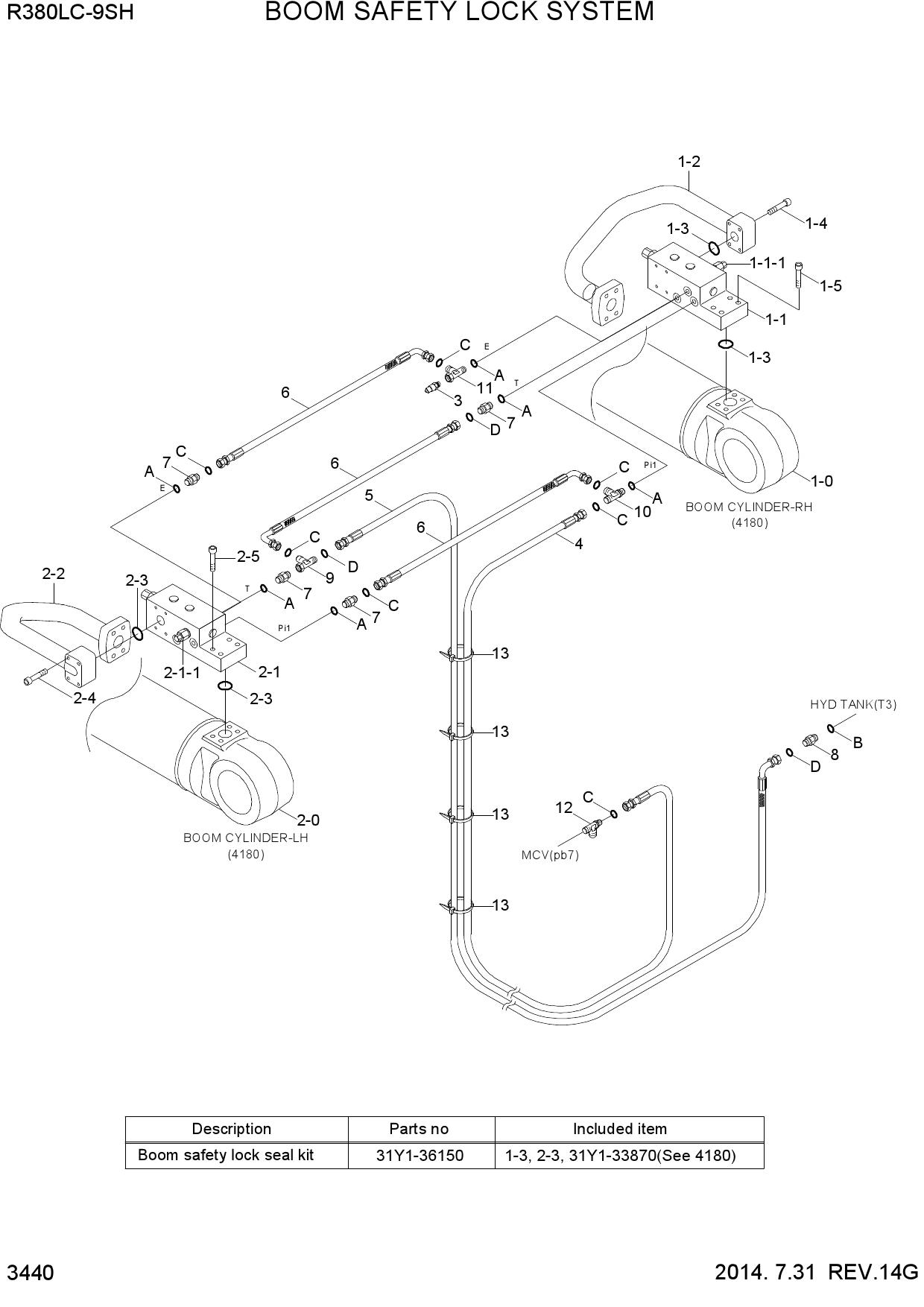

Запчасти для гусеничных экскаваторов Hyundai R380LC-9SH BOOM SAFETY LOCK SYSTEM
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31QA-52111 | BOOM CYL ASSY-VLV,LH | |
| 1-1 | 31QA-55010 | VALVE-SAFETY LOCK | |
| 1-1 | 31QA-55011 | VALVE-SAFETY LOCK | |
| 1-1-1 | XKCH-00001 | VALVE-RELIEF | |
| 1-2 | 31Y1-36130 | PIPE ASSY-BV,LH | |
| K1-3 | Y171-024004 | O-RING | |
| 1-4 | S107-120556 | BOLT-SOCKET | |
| 1-5 | S107-120606 | BOLT-SOCKET | |
| 2 | 31QA-52121 | BOOM CYL ASSY-VLV,RH | |
| 2-1 | 31QA-55010 | VALVE-SAFETY LOCK | |
| 2-1 | 31QA-55011 | VALVE-SAFETY LOCK | |
| 2-1-1 | XKCH-00001 | VALVE-RELIEF | |
| 2-2 | 31Y1-36140 | PIPE ASSY-BV,RH | |
| K2-3 | Y171-024004 | O-RING | |
| 2-4 | S107-120556 | BOLT-SOCKET | |
| 2-5 | S107-120606 | BOLT-SOCKET | |
| 3 | 31Q8-40500 | PRESSURE SENSOR | |
| 3 | 31Q4-40800 | SENSOR-PRESSURE | |
| 3 | 31Q4-40600 | SENSOR-PRESSURE | |
| 3 | 31Q4-40601 | SENSOR-PRESSURE | |
| 3 | 31Q4-40800 | SENSOR-PRESSURE | |
| 4 | P930-042058 | HOSE ASSY-ORFS 0X90 | |
| 5 | P930-062061 | HOSE ASSY-ORFS 0X90 | |
| 6 | P930-047014 | HOSE ASSY-ORFS 0X90 | |
| 7 | X500-110001 | CONNECTOR-ORFS | |
| 8 | X500-110002 | CONNECTOR-ORFS | |
| 9 | 31N4-41140 | TEE-S/NUT,ORFS | |
| 10 | X820-045151 | TEE-R/TYPE,ORFS | |
| 11 | 31N4-22170 | TEE-RUN TYPE | |
| 12 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 13 | S552-020102 | CLAMP-BAND | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| C | S621-011001 | O-RING | |
| D | S621-014001 | O-RING | |
| K | 31Y1-36150 | SEAL KIT |
