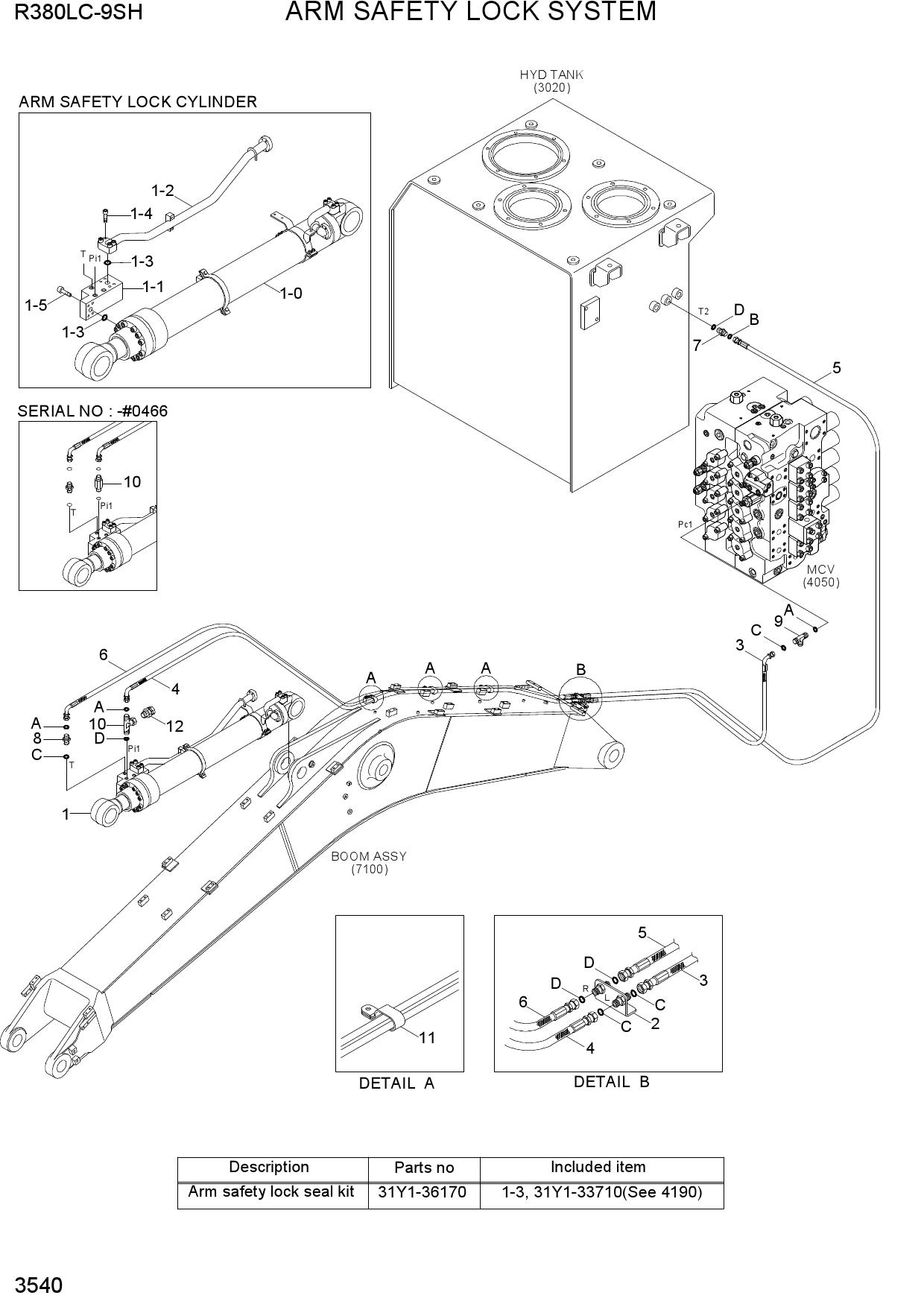

Запчасти для гусеничных экскаваторов Hyundai R380LC-9SH ARM SAFETY LOCK SYSTEM
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31QA-52130 | ARM CYL ASSY-VLV | |
| 1-1 | 31QA-55030 | VALVE-SAFETY LOCK | |
| 1-1 | 31QA-55031 | VALVE-SAFETY LOCK | |
| 1-2 | 31Y1-36160 | PIPE ASSY-RV | |
| K1-3 | Y171-024004 | O-RING | |
| 1-4 | S107-120606 | BOLT-SOCKET | |
| 1-5 | S107-120556 | BOLT-SOCKET | |
| 2 | 31N6-90660 | TERMIANL-SAFETY VLV | |
| 3 | P930-042046 | HOSE ASSY-ORFS 0X90 | |
| 4 | P930-042118 | HOSE ASSY-ORFS 0X90 | |
| 4 | P930-042114 | HOSE ASSY-ORFS 0X90 | |
| 4 | P930-042162 | HOSE ASSY-ORFS 0X90 | |
| 5 | P930-062071 | HOSE ASSY-ORFS 0X90 | |
| 6 | P930-062118 | HOSE ASSY-ORFS 0X90 | |
| 6 | P930-062114 | HOSE ASSY-ORFS 0X90 | |
| 6 | P930-062162 | HOSE ASSY-ORFS 0X90 | |
| 7 | X500-110002 | CONNECTOR-ORFS | |
| 8 | X500-110011 | CONNECTOR-ORFS | |
| 9 | X820-045151 | TEE-R/TYPE,ORFS | |
| 10 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 10 | 31NB-20130 | TEE-RUN TYPE/TEST | |
| 11 | 31QA-90500 | CLAMP-HOSE | |
| 12 | 31EK-11130 | COUPLING-SCREW | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| C | S621-011001 | O-RING | |
| D | S621-012001 | O-RING | |
| K | 31Y1-36170 | SEAL KIT |
