- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYD PIPING(ATTACH, ARCTIC)
- UPPER HYDRAULIC PIPING(TRAVEL)
- UPPER HYD PIPING(TRAVEL, ARCTIC)
- PILOT HYD PIPING(CNTL 1, CLUSTER TYPE 1)
- PILOT HYD PIPING(CNTL 1, CLUSTER TYPE 2)
- PILOT HYD PIPING(CNTL 2, CLUSTER TYPE 1)
- PILOT HYD PIPING(CNTL 2, CLUSTER TYPE 2)
- PILOT HYD PIPING(CNTL 3, CLUSTER TYPE 1)
- PILOT HYD PIPING(CNTL 3, CLUSTER TYPE 2)
- PILOT HYD PIPING(BASE 1, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 1, CLUSTER TYPE 2)
- PILOT HYD PIPING(BASE 2, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 2, CLUSTER TYPE 2)
- PILOT HYD PIPING(BASE 3, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 3, CLUSTER TYPE 2)
- TRAVEL HYDRAULIC PIPING
- TRAVEL HYDRAULIC PIPING(ARCTIC)
- BOOM HYDRAULIC PIPING(6.5M, STD)
- BOOM GREASE LUB SYSTEM(6.5M, STD)
- BOOM HYDRAULIC PIPING(6.5M, ARCTIC)
- BOOM GREASE LUB SYSTEM(6.5,ARCTIC)
- BOOM HYDDRAULIC PIPING(6.15M, SHORT)
- BOOM GREASE LUB SYSTEM(6.15M, SHORT)
- BOOM HYDDRAULIC PIPING(8.6M, LONG)
- BOOM GREASE LUB SYSTEM(8.6M, LONG)
- BOOM SAFETY LOCK SYSTEM
- ARM HYDRAULIC PIPING(3.2M, STD)
- ARM HYDRAULIC PIPING(3.2M, ARCTIC))
- ARM HYDRAULIC PIPING(2.5M, SHORT)
- ARM HYDRAULIC PIPING(2.9M, SHORT)
- ARM HYDRAULIC PIPING(3.9M, LONG)
- ARM HYDRAULIC PIPING(4.3M, SUPER LONG)
- ARM HYDRAULIC PIPING(5.1M, SUPER LONG)
- ARM SAFETY LOCK SYSTEM
- D/ACTING MAIN PIP KIT 1(CLUSTER TYPE 1)
- D/ACTING MAIN PIP KIT 1(CLUSTER TYPE 2)
- D/ACTING MAIN PIP KIT 2(CLUSTER TYPE 1)
- D/ACTING MAIN PIP KIT 2(CLUSTER TYPE 2)
- ATTACH PIPING KIT(S & D/ACTING)
- SINGLE PEDAL(DOUBLE ACTING)
- S/ACTING MAIN PIPING KIT(CLUSTER TYPE 1)
- S/ACTING MAIN PIPING KIT(CLUSTER TYPE 2)
- QUICK CLAMP PIPING
- QUICK CLAMP(HOOK TYPE, -#0360)
- QUICK CLAMP(CLOSE TYPE, -#0360)
- QUICK CLAMP(HOOK TYPE 1, #0361-)
- QUICK CLAMP(CLOSE TYPE 1, #0361-)
- QUICK CLAMP(HOOK TYPE 2, #0399-)
- QUICK CLAMP(CLOSE TYPE 2, #0399-)
- SEMI AUTO GREASE LUB SYS

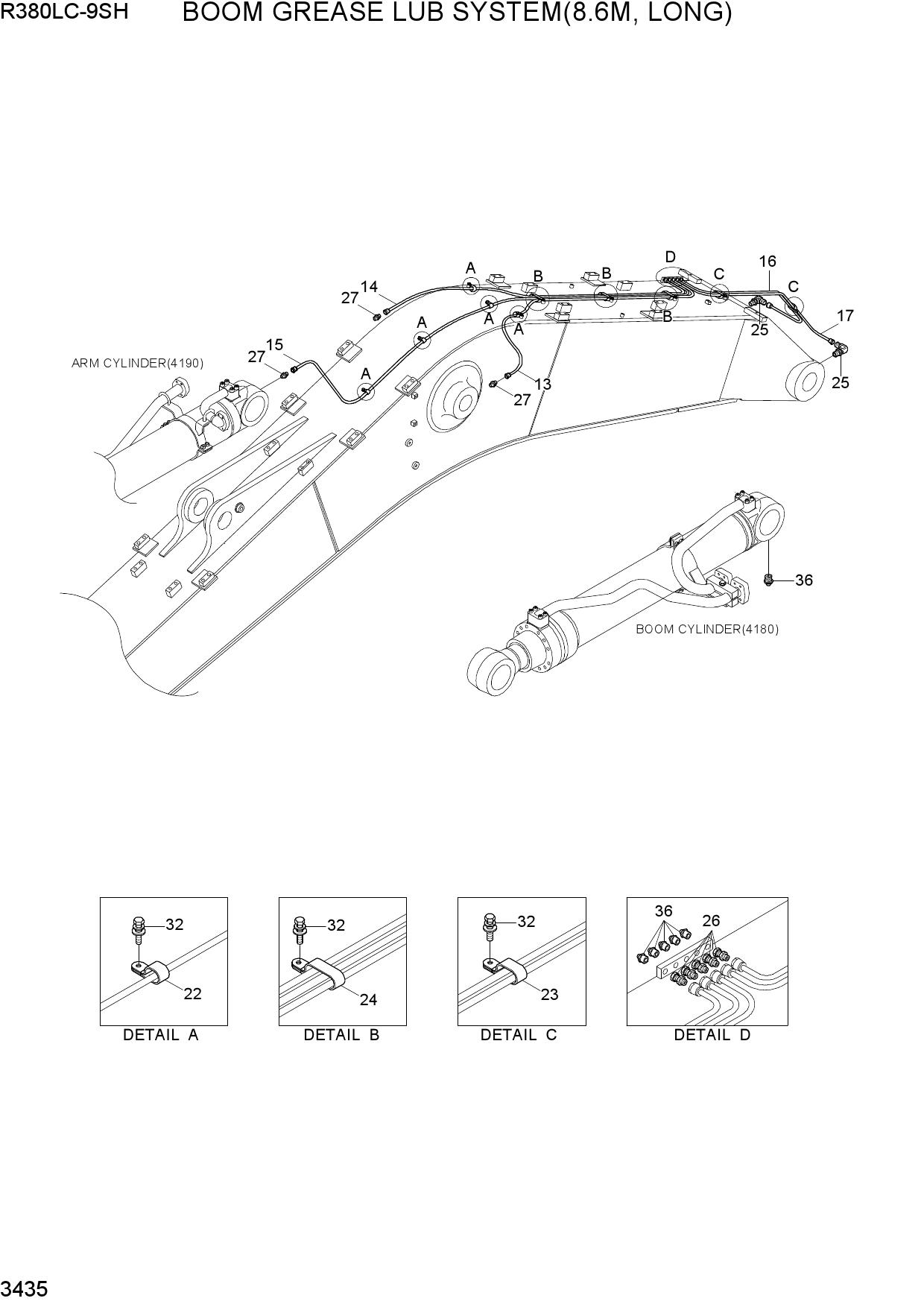

Запчасти для гусеничных экскаваторов Hyundai R380LC-9SH BOOM GREASE LUB SYSTEM(8.6M, LONG)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 13 | P840-042052 | HOSE ASSY-SYN THD | |
| 14 | P840-042054 | HOSE ASSY-SYN THD | |
| 15 | P840-042109 | HOSE ASSY-SYN THD | |
| 16 | P840-042025 | HOSE ASSY-SYN THD | |
| 17 | P840-042026 | HOSE ASSY-SYN THD | |
| 22 | 31Q6-50370 | CLAMP-HOSE | |
| 23 | 31Q6-50380 | CLAMP-HOSE | |
| 24 | 31Q6-50390 | CLAMP-HOSE | |
| 25 | 31NB-50280 | ELBOW-90 | |
| 26 | 31QA-50200 | CONNECTOR | |
| 27 | P010-430011 | CONNECTOR | |
| 32 | S035-082026 | BOLT-W/WASHER | |
| 36 | S651-810002 | NIPPLE-GREASE |
