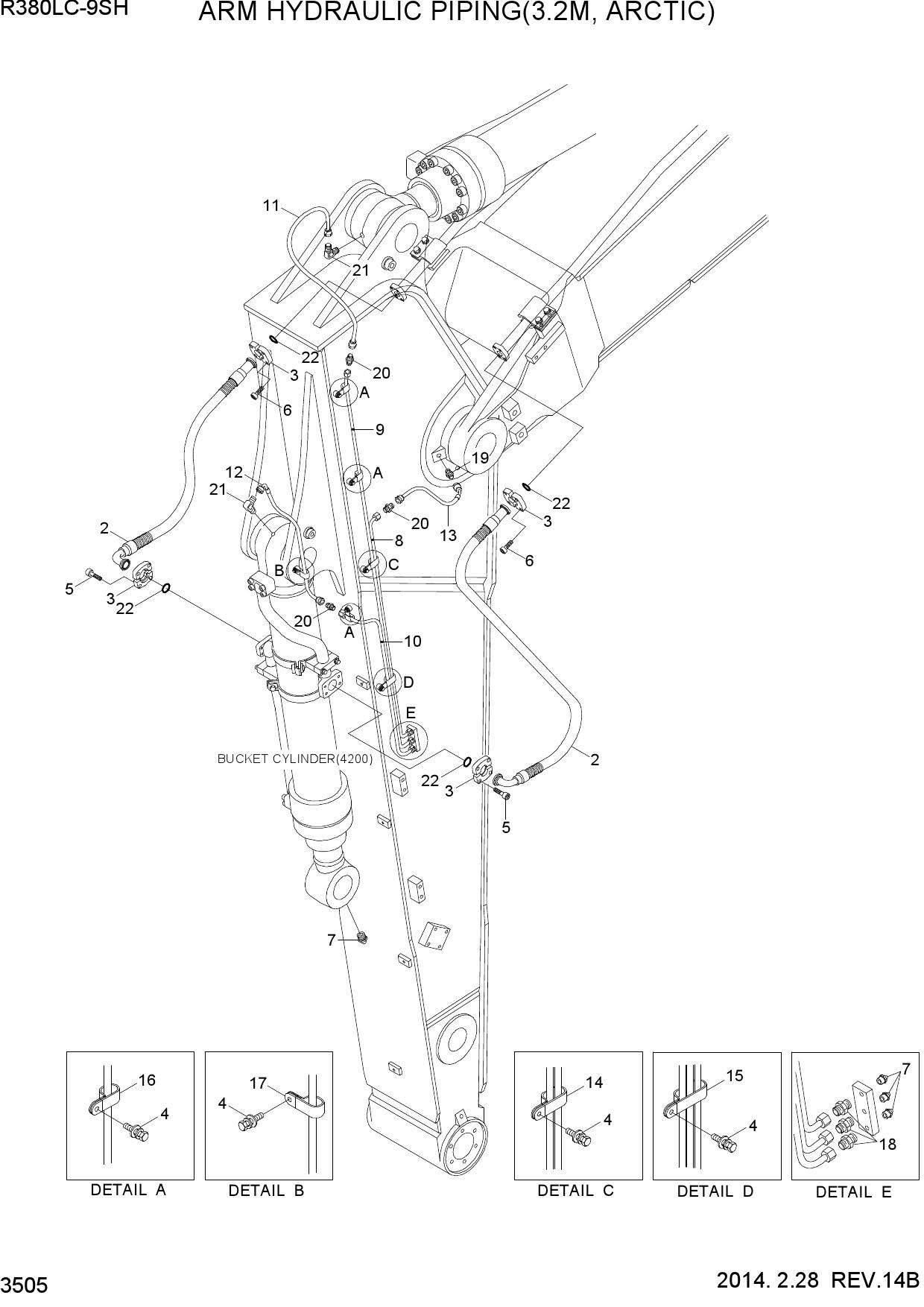

Запчасти для гусеничных экскаваторов Hyundai R380LC-9SH ARM HYDRAULIC PIPING(3.2M, ARCTIC))
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31QA-64030 | HOSE ASSY | |
| 2 | 31QA-64040 | HOSE ASSY(HI-GRADE) | |
| 3 | P174-200106 | FLANGE-SPLIT | |
| 4 | S035-082026 | BOLT-W/WASHER | |
| 5 | S109-120456 | BOLT-SOCKET | |
| 6 | S109-120506 | BOLT-SOCKET | |
| 7 | S651-810002 | NIPPLE-GREASE | |
| 8 | 31QA-60200 | PIPE ASSY | |
| 9 | 31QA-60212 | PIPE ASSY | |
| 10 | 31QA-60220 | PIPE ASSY | |
| 11 | P843-042013 | HOSE ASSY-SYN 0X0 | |
| 12 | P853-042014 | HOSE ASSY-SYN 0X45 | |
| 13 | P860-042010 | HOSE ASSY-SYN 0X90 | |
| 14 | 31Q8-60160 | CLAMP-TUBE | |
| 15 | 31Q8-60170 | CLAMP-TUBE | |
| 16 | 31Q8-60230 | CLAMP-TUBE | |
| 17 | 31Q6-50370 | CLAMP-HOSE | |
| 18 | 31Q8-60150 | CONNECTOR-TUBE | |
| 19 | P010-430011 | CONNECTOR | |
| 20 | E131-0626 | CONNECTOR | |
| 21 | 31NB-50280 | ELBOW-90 | |
| 22 | 31Q8-02700 | O-RING |
