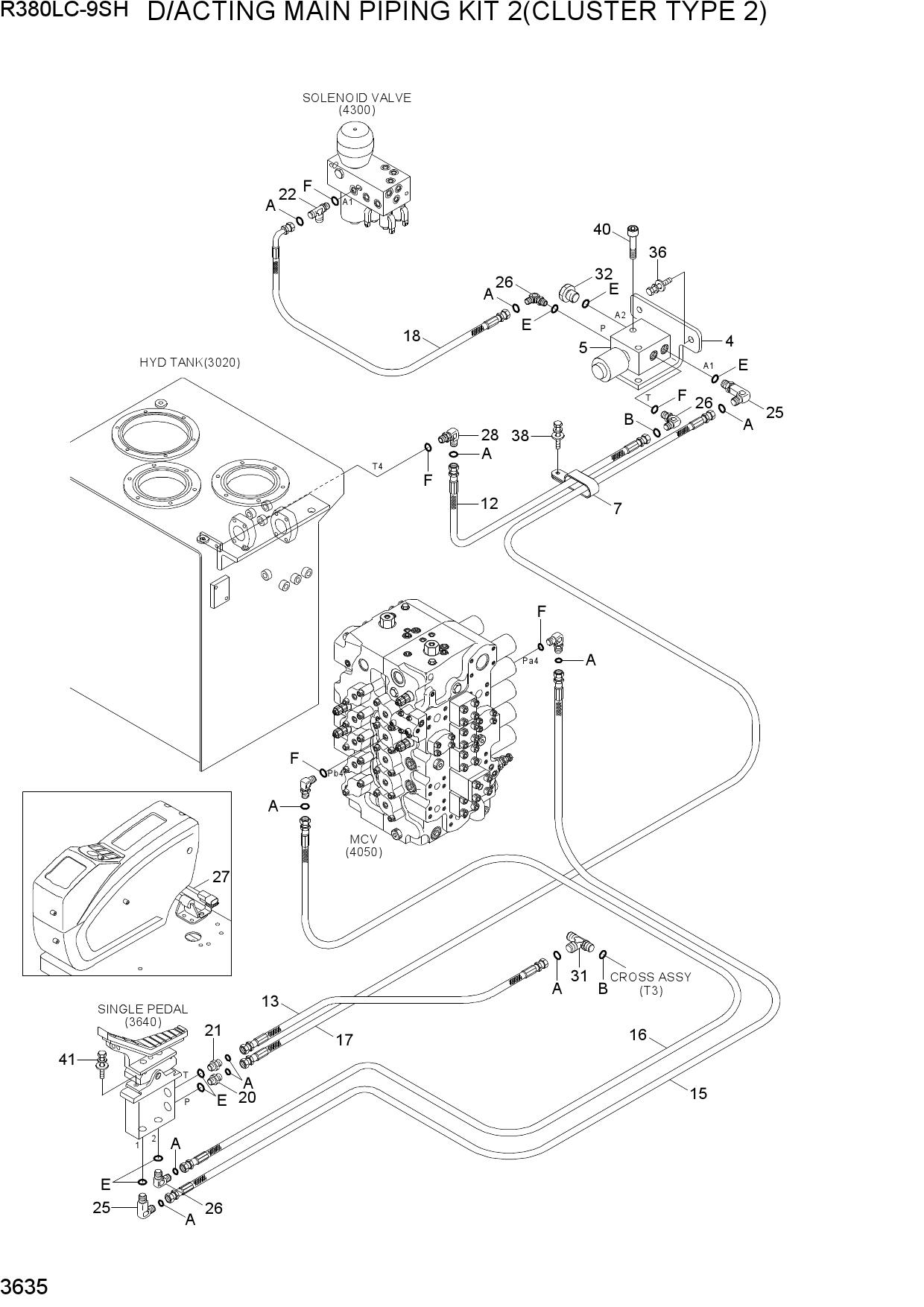

Запчасти для гусеничных экскаваторов Hyundai R380LC-9SH D/ACTING MAIN PIP KIT 2(CLUSTER TYPE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q6-90381 | BRACKET-SOL VALVE | |
| 5 | 31Q6-91220 | VALVE-SOLENOID | |
| 7 | 31L7-10230 | CLAMP | |
| 12 | P910-042042 | HOSE ASSY-ORFS 0X0 | |
| 13 | P910-042018 | HOSE ASSY-ORFS 0X0 | |
| 15 | P910-042068 | HOSE ASSY-ORFS 0X0 | |
| 16 | P910-042077 | HOSE ASSY-ORFS 0X0 | |
| 17 | P910-042093 | HOSE ASSY-ORFS 0X0 | |
| 18 | P930-042026 | HOSE ASSY-ORFS 0X90 | |
| 20 | 31N6-25060 | FILTER-LAST GUARD | |
| 21 | X500-110001 | CONNECTOR-ORFS | |
| 22 | X820-065251 | TEE-R/TYPE,ORFS | |
| 25 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 26 | X520-110001 | ELBOW-90,ORFS | |
| 27 | 21NB-00200 | HARNESS-EXT | |
| 28 | X520-110012 | ELBOW-90,ORFS | |
| 31 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 32 | P220-110102 | PLUG-HEX | |
| 36 | S037-122526 | BOLT-W/WASHER | |
| 38 | S037-102026 | BOLT-W/WASHER | |
| 40 | S109-080406 | BOLT-SOCKET | |
| 41 | S037-103026 | BOLT-W/WASHER | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| E | S631-011004 | O-RING | |
| F | S631-014004 | O-RING |
