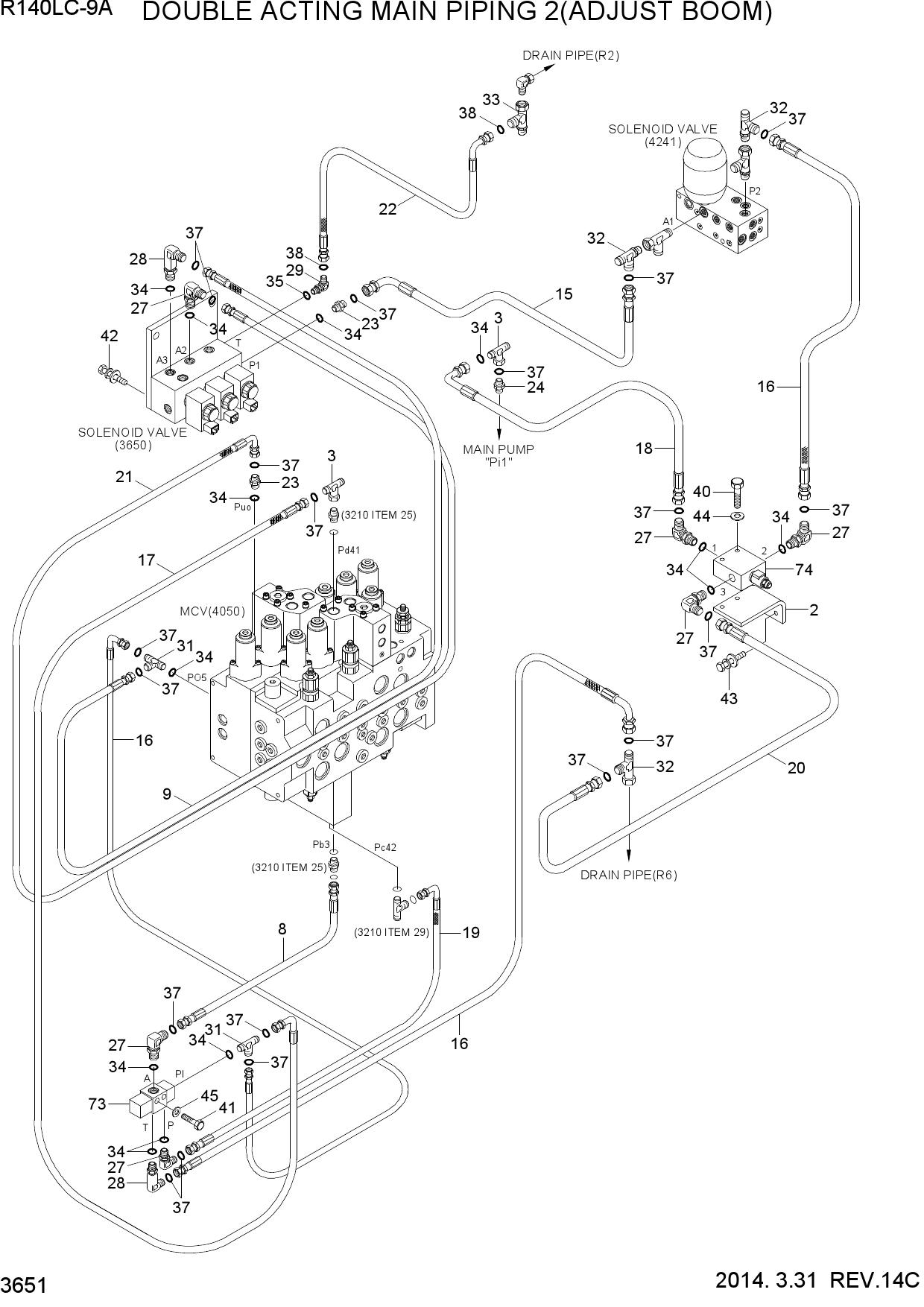

Запчасти для гусеничных экскаваторов Hyundai R140LC-9A DOUBLE ACTING MAIN PIPING 2(ADJUST BOOM)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31Q4-93370 | BRACKET | |
| 3 | 31N6-30130 | TEE-SHUTTLE,S/NUT | |
| 8 | P910-042024 | HOSE ASSY-ORFS 0X0 | |
| 9 | P910-042043 | HOSE ASSY-ORFS 0X0 | |
| 9 | P910-042037 | HOSE ASSY-ORFS 0X0 | |
| 15 | P930-042007 | HOSE ASSY-ORFS 0X90 | |
| 16 | P930-042008 | HOSE ASSY-ORFS 0X90 | |
| 17 | P930-042013 | HOSE ASSY-ORFS 0X90 | |
| 18 | P930-042019 | HOSE ASSY-ORFS 0X90 | |
| 18 | P930-042015 | HOSE ASSY-ORFS 0X90 | |
| 19 | P930-042028 | HOSE ASSY-ORFS 0X90 | |
| 20 | P930-042040 | HOSE ASSY-ORFS 0X90 | |
| 21 | P930-042045 | HOSE ASSY-ORFS 0X90 | |
| 22 | P930-042042 | HOSE ASSY-ORFS 0X90 | |
| 23 | X500-110001 | CONNECTOR-ORFS | |
| 24 | 31N6-25060 | FILTER-LAST GUARD | |
| 27 | X520-110001 | ELBOW-90,ORFS | |
| 28 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 29 | X520-110002 | ELBOW-90,ORFS | |
| 31 | X820-045151 | TEE-R/TYPE,ORFS | |
| 32 | X840-515151 | TEE-R/TYPE,ORFS | |
| 33 | X840-525252 | TEE-R/TYPE,SWIVEL,ORFS | |
| 34 | S631-011004 | O-RING | |
| 35 | S631-014004 | O-RING | |
| 37 | S621-011001 | O-RING | |
| 38 | S621-012001 | O-RING | |
| 40 | S017-060456 | BOLT-HEX | |
| 41 | S017-080506 | BOLT-HEX | |
| 42 | S035-082026 | BOLT-W/WASHER | |
| 43 | S037-102026 | BOLT-W/WASHER | |
| 44 | S403-060006 | WASHER-PLAIN | |
| 45 | S403-080006 | WASHER-PLAIN | |
| 73 | 31Q6-20150 | VALVE-SELECT | |
| 74 | 31Q6-20131 | EPPR VALVE-BREAKER |
