- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING 1(ADJUST BOOM)
- UPPER HYD PIPING 2(ADJUST BOOM)
- UPPER HYD PIPING(TRAVEL)
- PILOT HYD PIPING(CONTROL 1, -#0016)
- PILOT HYD PIPING(CONTROL 1, #0017-)
- PILOT HYD PIPING(CONTROL 2, -#0016)
- PILOT HYD PIPING(CONTROL 2, #0017-)
- PILOT HYD PIPING(BOTTOM 1)
- PILOT HYD PIPING(BOTTOM 2)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- UPPER HYD PIPING(R140LCD-9A)
- UPPER HYD PIPING(R140LCD-9A,ADJUST BOOM)
- TRAVEL HYD PIPING
- TRAVEL HYD PIPING(R140LCM-9A)
- TRAVEL HYD PIPING 1(R140LCD-9A)
- TRAVEL HYD PIPING 2(R140LCD-9A)
- BOOM HYD PIPING(4.6M, STD)
- BOOM HYD PIPING(4.1M, OPT)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(4.6M, STD)
- BOOM GREASE LUB SYSTEM(4.1M, OPT)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- ARM HYD PIPING
- ARM HYD PIPING(3.0M, LONG)
- ARM SAFETY LOCK SYSTEM
- ATTACH PIPING KIT(S & D/ACTING)
- SINGLE ACTING MAIN PIPING KIT
- S/ACTING MAIN PIPING KIT(ADJUST BOOM)
- DOUBLE ACTING MAIN PIPING KIT 1
- DOUBLE ACTING MAIN PIPING KIT 2
- DOUBLE ACTING MAIN PIPING 1(ADJUST BOOM)
- DOUBLE ACTING MAIN PIPING 2(ADJUST BOOM)

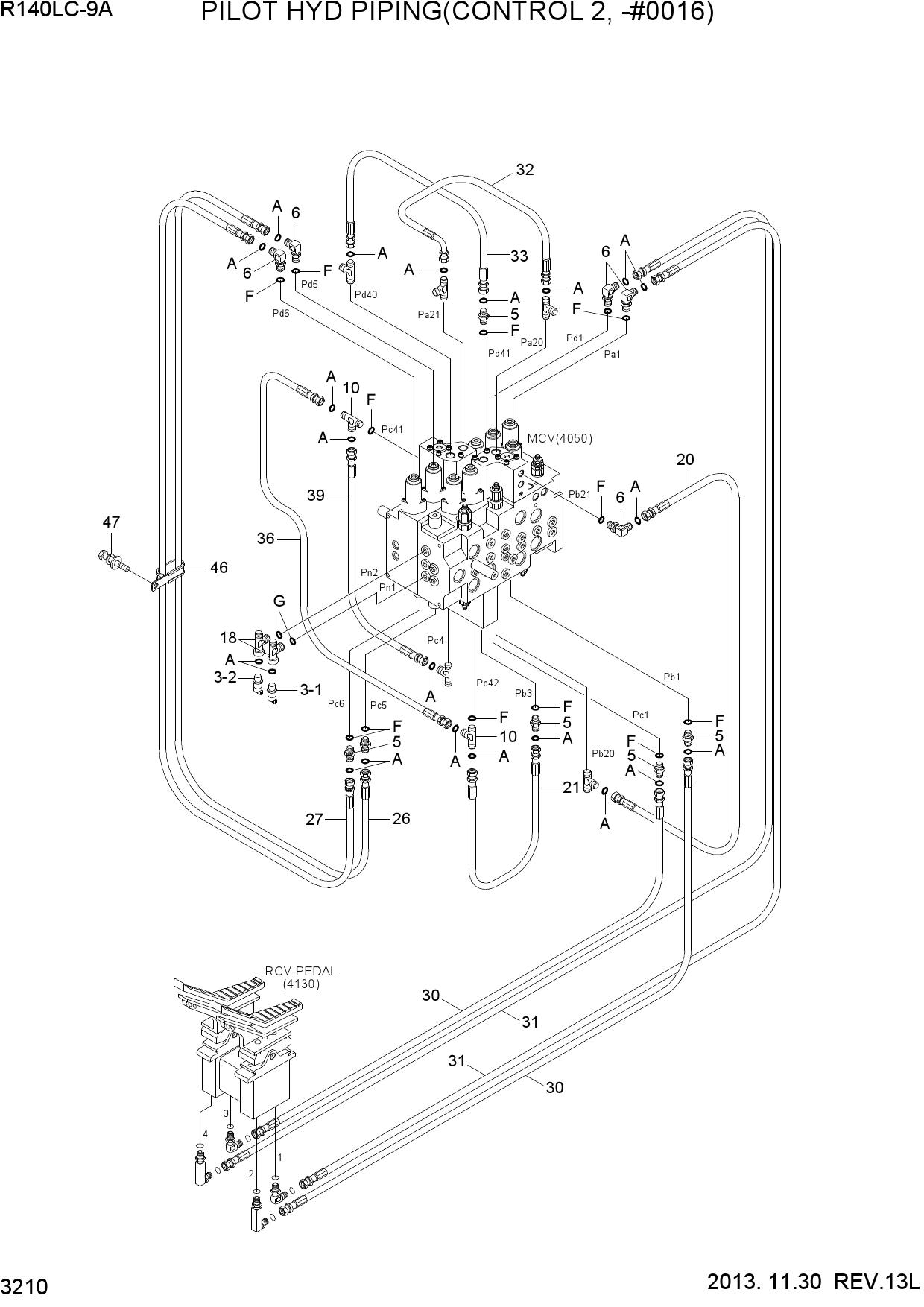

Запчасти для гусеничных экскаваторов Hyundai R140LC-9A PILOT HYD PIPING(CONTROL 2, -#0016)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3-1 | 31Q4-40820 | SENSOR-PRESSURE | |
| 3-2 | 31Q4-40820 | SENSOR-PRESSURE | |
| 5 | X500-110001 | CONNECTOR-ORFS | |
| 6 | X520-110001 | ELBOW-90,ORFS | |
| 10 | X820-045151 | TEE-R/TYPE,ORFS | |
| 18 | 31QA-22310 | TEE-BRANCH TYPE | |
| 20 | X400-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 21 | X420-042007 | HOSE ASSY-SYNFLEX,ORFS | |
| 26 | X400-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 27 | X400-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 30 | X400-042060 | HOSE ASSY-SYNFLEX,ORFS | |
| 31 | X400-042067 | HOSE ASSY-SYNFLEX,ORFS | |
| 32 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 33 | X420-042012 | HOSE ASSY-ORFS 0X90 | |
| 36 | X420-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 39 | X420-042019 | HOSE ASSY-SYNFLEX,ORFS | |
| 46 | 31L7-10270 | CLAMP-TUBE | |
| 47 | S037-102026 | BOLT-W/WASHER | |
| A | S621-011001 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R140LC-9A в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
