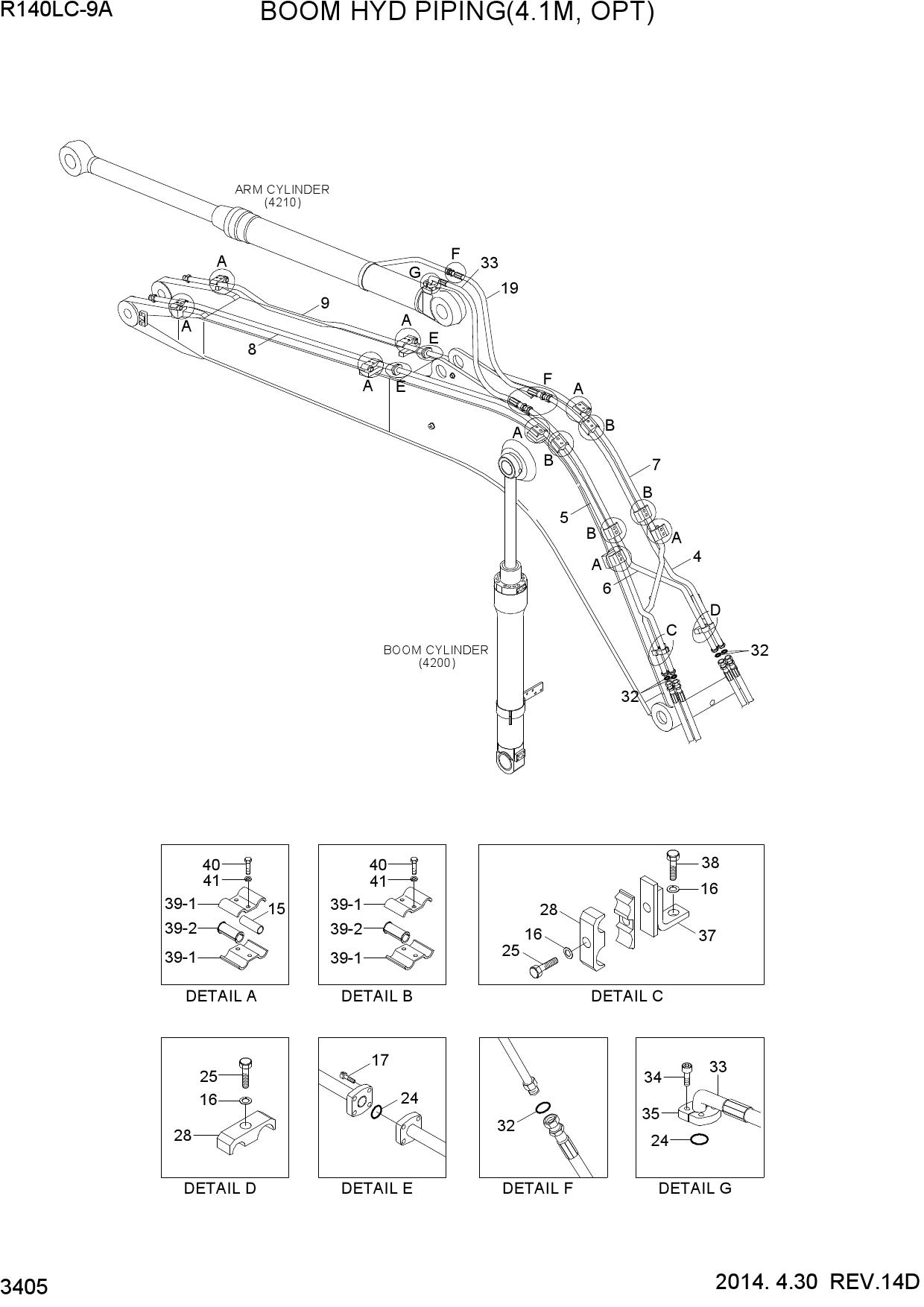

Запчасти для гусеничных экскаваторов Hyundai R140LC-9A BOOM HYD PIPING(4.1M, OPT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q4-53010 | PIPE ASSY | |
| 5 | 31Q4-53020 | PIPE ASSY | |
| 5 | 31Q4-53130 | PIPE WA | |
| 6 | 31Q4-53030 | PIPE ASSY | |
| 7 | 31Q4-53040 | PIPE ASSY | |
| 8 | 31Q4-53051 | PIPE ASSY | |
| 9 | 31Q4-53081 | PIPE ASSY | |
| 15 | 31N5-50220 | SPACER-PIPE | |
| 16 | S411-160006 | WASHER-SPRING | |
| 17 | S109-100506 | BOLT-SOCKET | |
| 19 | P910-128018 | HOSE ASSY-ORFS 0X0 | |
| 19 | 31Q4-59540 | HOSE ASSY(HI-GRADE) | |
| 24 | Y171-019004 | O-RING | |
| 25 | S017-16070A | BOLT-HEX | |
| 28 | 31N4-12200 | CLAMP-PIPE | |
| 32 | S621-018001 | O-RING | |
| 33 | 31Q4-53090 | HOSE ASSY | |
| 33 | 31Q4-52510 | HOSE ASSY(HI-GRADE) | |
| 34 | S109-100306 | BOLT-SOCKET | |
| 35 | P174-120102 | FLANGE-HYD,SPLIT | |
| 37 | 31N5-50190 | BRACKET ASSY | |
| 38 | S017-16035D | BOLT-HEX | |
| 39 | 31Q4-50300 | CLAMP ASSY | |
| 39-1 | 31Q4-50310 | CLAMP-PIPE | |
| 39-2 | 31Q4-50270 | GROMMET | |
| 40 | S017-120656 | BOLT-HEX | |
| 41 | S411-120006 | WASHER-SPRING |
