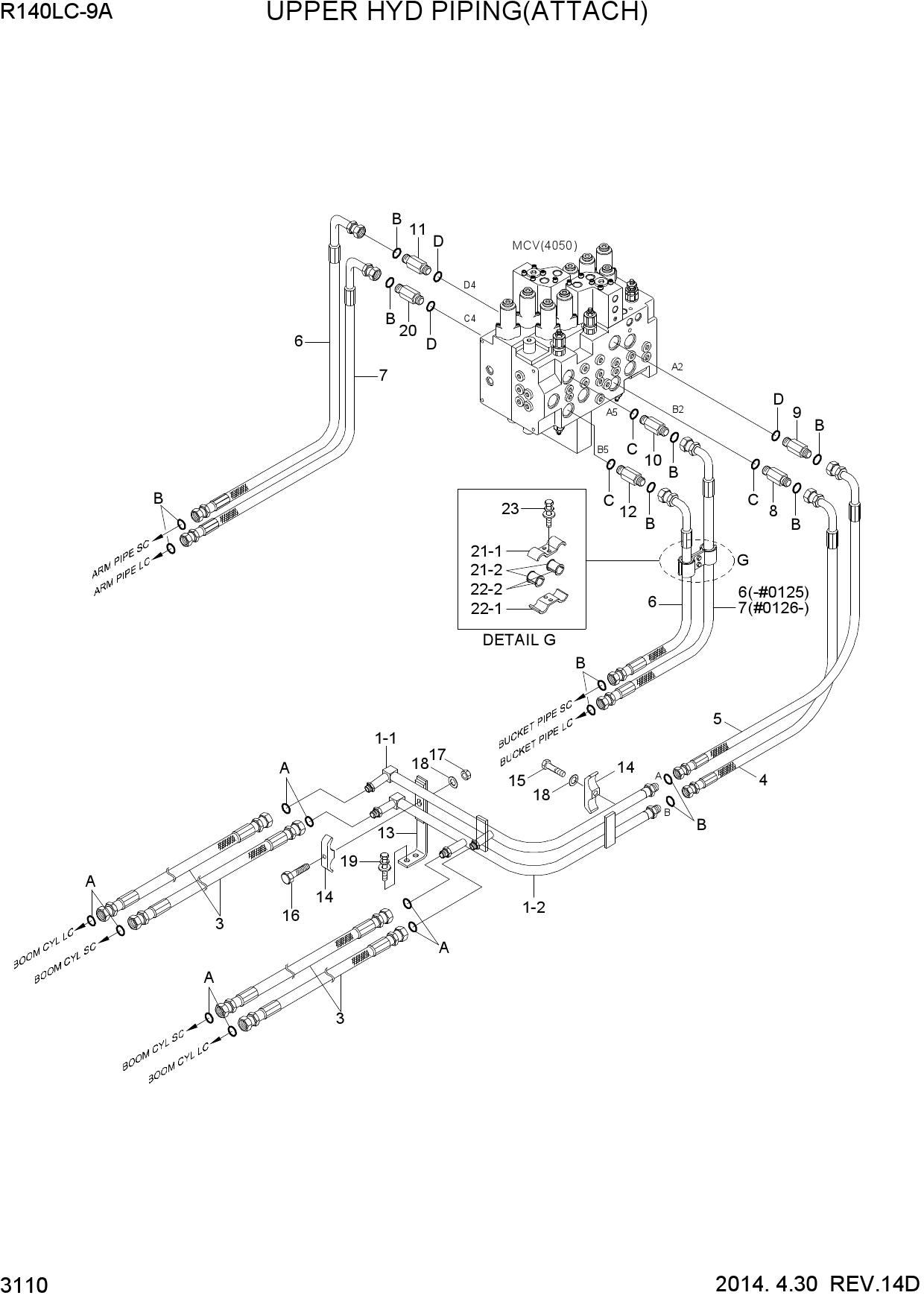

Запчасти для гусеничных экскаваторов Hyundai R140LC-9A UPPER HYD PIPING(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q4-13440 | PIPE SUB ASSY | |
| 1-1 | 31Q4-13410 | PIPE ASSY | |
| 1-2 | 31Q4-13420 | PIPE ASSY | |
| 3 | 31Q4-13330 | HOSE ASSY | |
| 3 | 31Q4-13530 | HOSE ASSY(HI-GRADE) | |
| 4 | P930-128017 | HOSE ASSY-ORFS 0X90 | |
| 5 | P930-128018 | HOSE ASSY-ORFS 0X90 | |
| 6 | P933-128024 | HOSE ASSY-ORFS 0X90 | |
| 6 | P933-128024 | HOSE ASSY-ORFS 0X90 | |
| 7 | P933-128025 | HOSE ASSY-ORFS 0X90 | |
| 7 | P933-128025 | HOSE ASSY-ORFS 0X90 | |
| 8 | X511-112545 | CONNECTOR-LONG,ORFS | |
| 9 | X511-116544 | CONNECTOR-LONG,ORFS | |
| 10 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 11 | X511-116546 | CONNECTOR-LONG,ORFS | |
| 12 | 31N8-40230 | CONNECTOR-LONG,ORFS | |
| 13 | 31Q4-11170 | BRACKET | |
| 14 | 31N4-12270 | CLAMP-PIPE | |
| 15 | S017-100606 | BOLT-HEX | |
| 16 | S017-100756 | BOLT-HEX | |
| 17 | S205-10100B | NUT-HEX | |
| 18 | S403-10200B | WASHER-PLAIN | |
| 19 | S037-103026 | BOLT-W/WASHER | |
| 20 | X511-116545 | CONNECTOR-LONG,ORFS | |
| 21 | 31Q4-13390 | CLAMP ASSY | |
| 21-1 | 31Q4-13370 | CLAMP | |
| 21-2 | 31E7-01720 | GROMMET | |
| 22 | 31Q4-13380 | CLAMP ASSY | |
| 22-1 | 31Q4-13360 | CLAMP WA | |
| 22-2 | 31E7-01720 | GROMMET | |
| 23 | S037-123526 | BOLT-W/WASHER | |
| A | S621-014001 | O-RING | |
| B | S621-018001 | O-RING | |
| C | S631-024004 | O-RING | |
| D | S631-029004 | O-RING |
