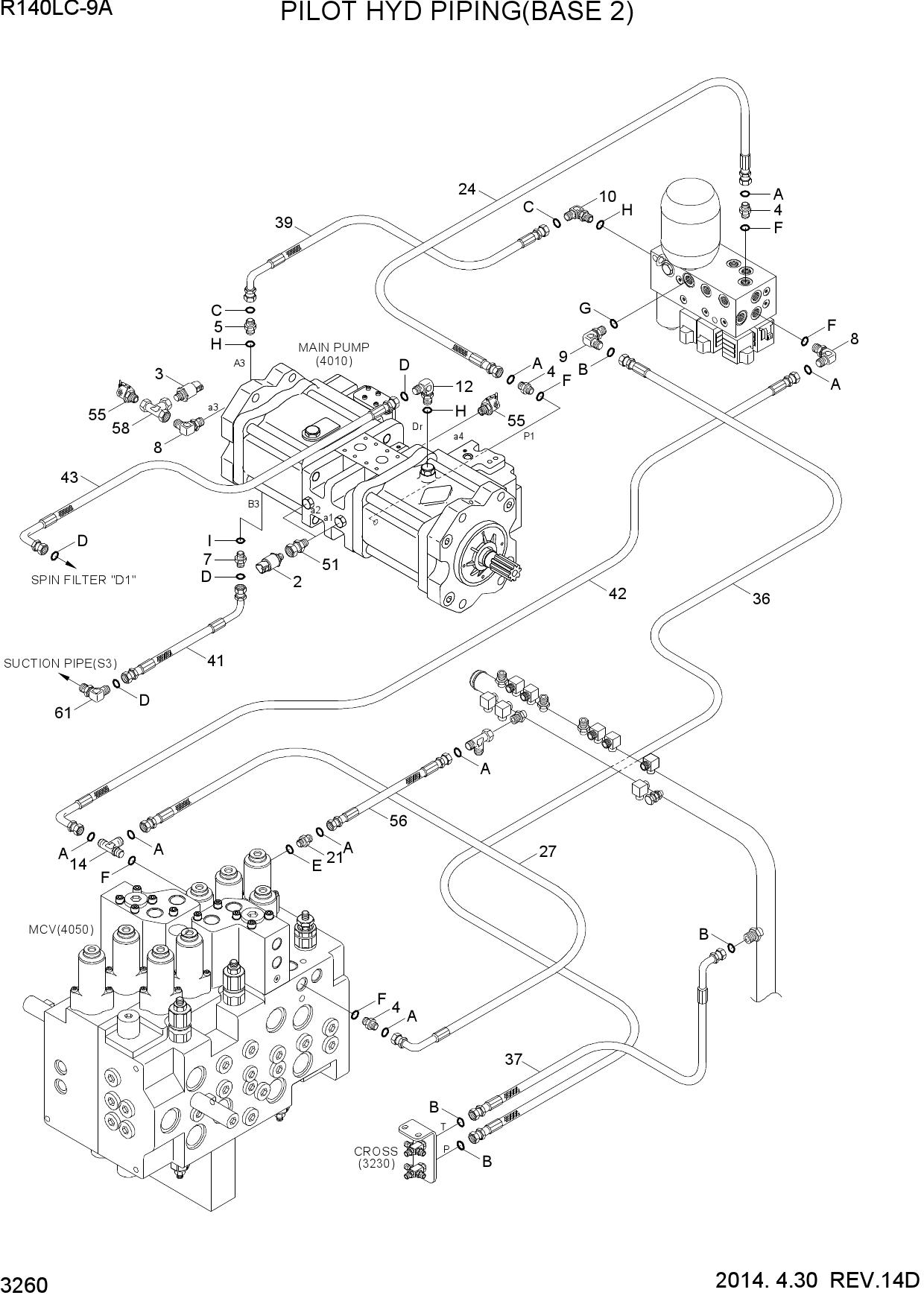

Запчасти для гусеничных экскаваторов Hyundai R140LC-9A PILOT HYD PIPING(BASE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31Q4-40800 | SENSOR-PRESSURE | |
| 3 | 31Q4-40830 | SENSOR-PRESSURE | |
| 4 | X500-110001 | CONNECTOR-ORFS | |
| 5 | X500-110003 | CONNECTOR-ORFS | |
| 7 | X500-110004 | CONNECTOR-ORFS | |
| 8 | X520-110001 | ELBOW-90,ORFS | |
| 9 | X520-110002 | ELBOW-90,ORFS | |
| 10 | X520-110003 | ELBOW-90,ORFS | |
| 12 | X520-110015 | ELBOW-90,ORFS | |
| 14 | X820-045151 | TEE-R/TYPE,ORFS | |
| 21 | 31Q6-20210 | CONNECTOR-ORFS | |
| 24 | X400-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 27 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 36 | P920-062057 | HOSE ASSY-ORFS 0X45 | |
| 37 | P930-062026 | HOSE ASSY-ORFS 0X90 | |
| 39 | P930-082010 | HOSE ASSY-ORFS 0X90 | |
| 41 | P930-122015 | HOSE ASSY-ORFS 0X90 | |
| 42 | X420-042036 | HOSE ASSY-SYNF,ORFS 0X90 | |
| 42 | X420-042035 | HOSE ASSY-ORFS 0X90 | |
| 43 | P930-122014 | HOSE ASSY-ORFS 0X90 | |
| 51 | 31E9-22120 | CONNECTOR | |
| 55 | 31EK-11130 | COUPLING-SCREW | |
| 56 | X400-042007 | HOSE ASSY-SYNFLEX,ORFS | |
| 58 | 31Q4-20170 | TEE-TEST PORT | |
| 61 | X520-110004 | ELBOW-90,ORFS | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S621-014001 | O-RING | |
| D | S621-018001 | O-RING | |
| E | S631-008004 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING | |
| H | S631-018004 | O-RING | |
| I | S631-024004 | O-RING |
