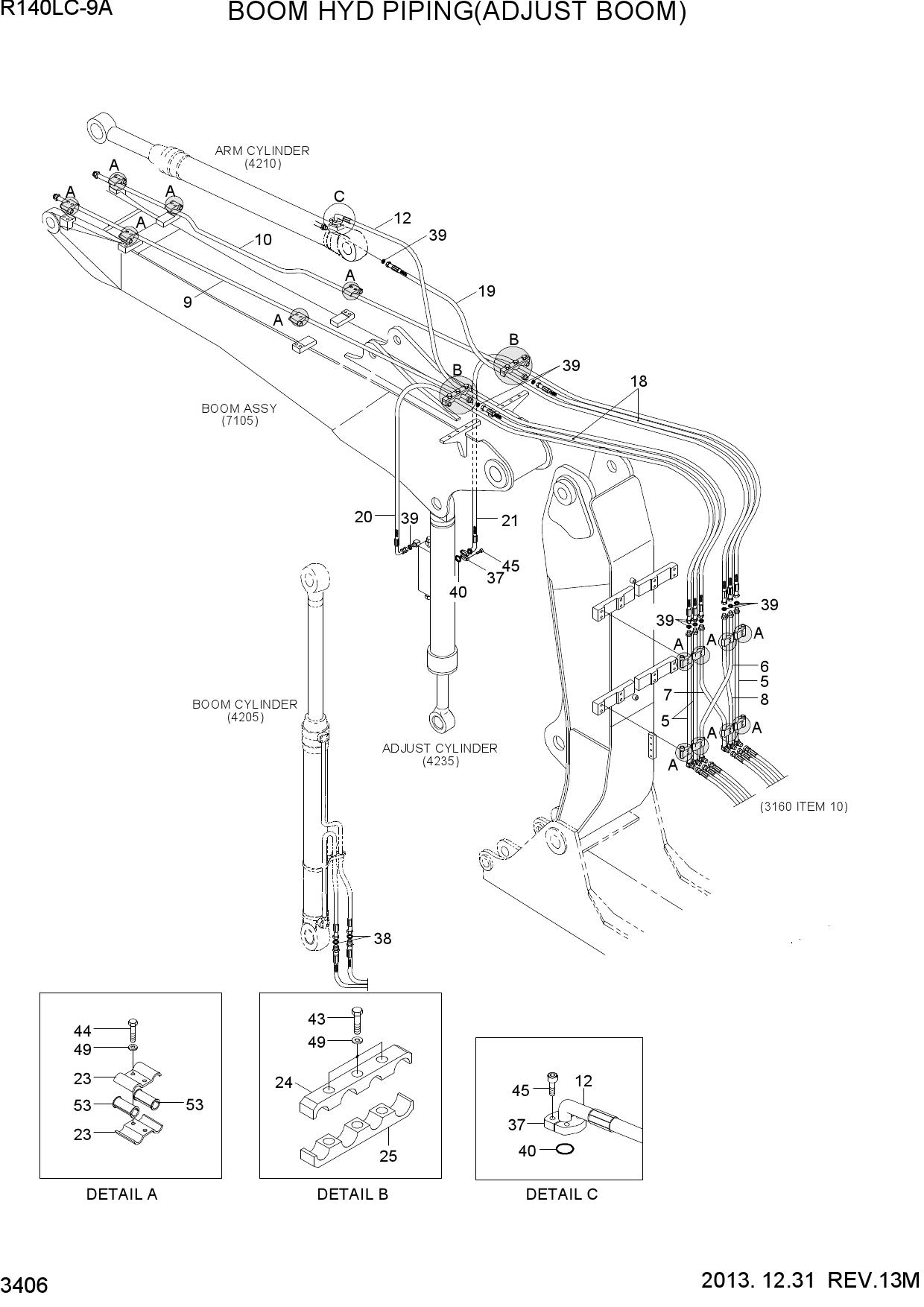

Запчасти для гусеничных экскаваторов Hyundai R140LC-9A BOOM HYD PIPING(ADJUST BOOM)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31Q4-52950 | PIPE ASSY | |
| 6 | 31Q4-52960 | PIPE ASSY | |
| 7 | 31Q4-52970 | PIPE ASSY | |
| 8 | 31Q4-52980 | PIPE ASSY | |
| 9 | 31Q4-52991 | PIPE ASSY | |
| 10 | 31Q4-53001 | PIPE ASSY | |
| 12 | 31Q4-53110 | HOSE ASSY | |
| 12 | 31Q4-52540 | HOSE ASSY(HI-GRADE) | |
| 18 | P910-128020 | HOSE ASSY-ORFS 0X0 | |
| 19 | P910-128042 | HOSE ASSY-ORFS 0X0 | |
| 19 | 31Q4-59590 | HOSE ASSY(HI-GRADE) | |
| 20 | 31N4-53120 | HOSE ASSY | |
| 21 | 31N4-53130 | HOSE ASSY | |
| 23 | 31Q4-50300 | CLAMP ASSY | |
| 24 | 31N4-53140 | CLAMP-HOSE | |
| 25 | 31N4-53150 | CLAMP-HOSE | |
| 37 | P173-120102 | FLANGE-HYD,SPLIT | |
| 38 | S621-014001 | O-RING | |
| 39 | S621-018001 | O-RING | |
| 40 | Y171-019004 | O-RING | |
| 43 | S017-120706 | BOLT-HEX | |
| 44 | S017-120656 | BOLT-HEX | |
| 45 | S109-100306 | BOLT-SOCKET | |
| 49 | S411-120006 | WASHER-SPRING | |
| 53 | 31N5-50220 | SPACER-PIPE |
