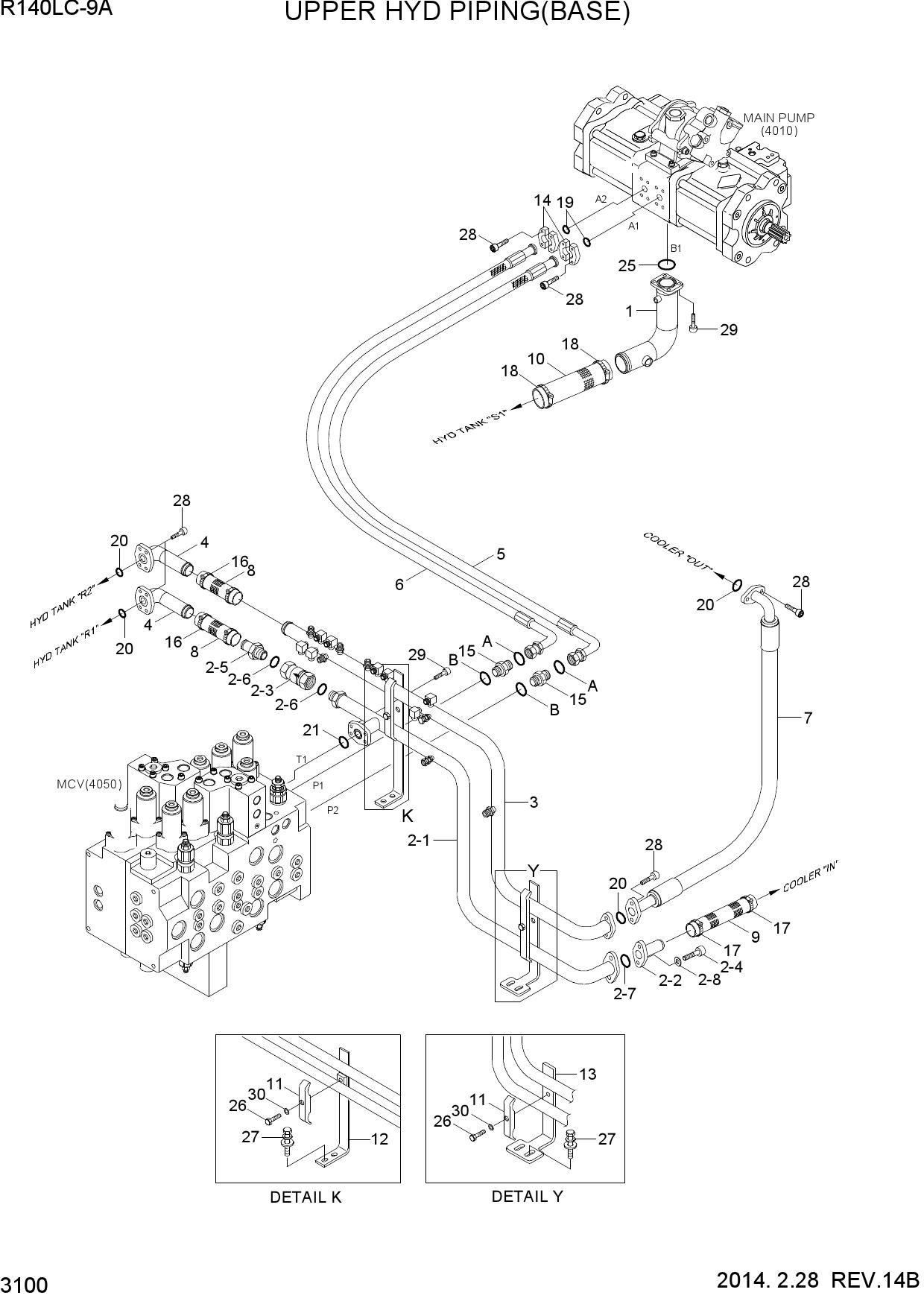

Запчасти для гусеничных экскаваторов Hyundai R140LC-9A UPPER HYD PIPING(BASE)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 37Q4-17011 | PIPE-SUCTION | |
| 2 | 37Q4-17021 | PIPE SUB ASSY-RETURN | |
| 2-1 | 37Q4-17031 | .PIPE ASSY | |
| 2-2 | 31ER-11111 | VALVE-CHECK | |
| 2-3 | 31E9-0142 | VALVE-CHECK | |
| 2-4 | S109-120456 | BOLT-SOCKET | |
| 2-5 | 34EA-10120 | CONNECTOR | |
| 2-6 | S631-044004 | O-RING | |
| 2-7 | Y172-003004 | O-RING | |
| 2-8 | S403-122006 | WASHER-PLAIN | |
| 3 | 37Q4-17041 | RETURN-PIPE | |
| 4 | 31Q4-12130 | PIPE ASSY | |
| 5 | P993-128420 | HOSE ASSY-ORFS,FLG 0X90 | |
| 5 | 31Q4-15540 | HOSE ASSY(HI-GRADE) | |
| 6 | P993-128419 | HOSE ASSY-ORFS,FLG 0X90 | |
| 6 | 31Q4-15520 | HOSE ASSY(HI-GRADE) | |
| 7 | 37Q5-11180 | HOSE ASSY-RETURN | |
| 8 | P760-063022 | HOSE-RUBBER LOW | |
| 9 | 37Q4-13190 | HOSE-RUBBER | |
| 10 | P760-093022 | HOSE-RUBBER LOW | |
| 11 | 31N4-14240 | CLAMP-PIPE | |
| 12 | 31Q4-11180 | BRACKET-RETURN | |
| 13 | 31Q4-18190 | BRACKET-PIPE | |
| 14 | P174-120102 | FLANGE-HYD,SPLIT | |
| 15 | X500-110004 | CONNECTOR-ORFS | |
| 16 | 31Q6-10820 | CLAMP-BAND,T-BOLT | |
| 17 | 31Q6-10830 | CLAMP-BAND,T-BOLT | |
| 18 | 31Q6-10850 | CLAMP-BAND,T-BOLT | |
| 19 | Y171-019004 | O-RING | |
| 20 | Y171-027004 | O-RING | |
| 21 | Y172-003004 | O-RING | |
| 25 | S631-071001 | O-RING | |
| 26 | S017-120706 | BOLT-HEX | |
| 27 | S037-103026 | BOLT-W/WASHER | |
| 28 | S109-100306 | BOLT-SOCKET | |
| 29 | S109-120306 | BOLT-SOCKET | |
| 30 | S403-12200B | WASHER-PLAIN |
