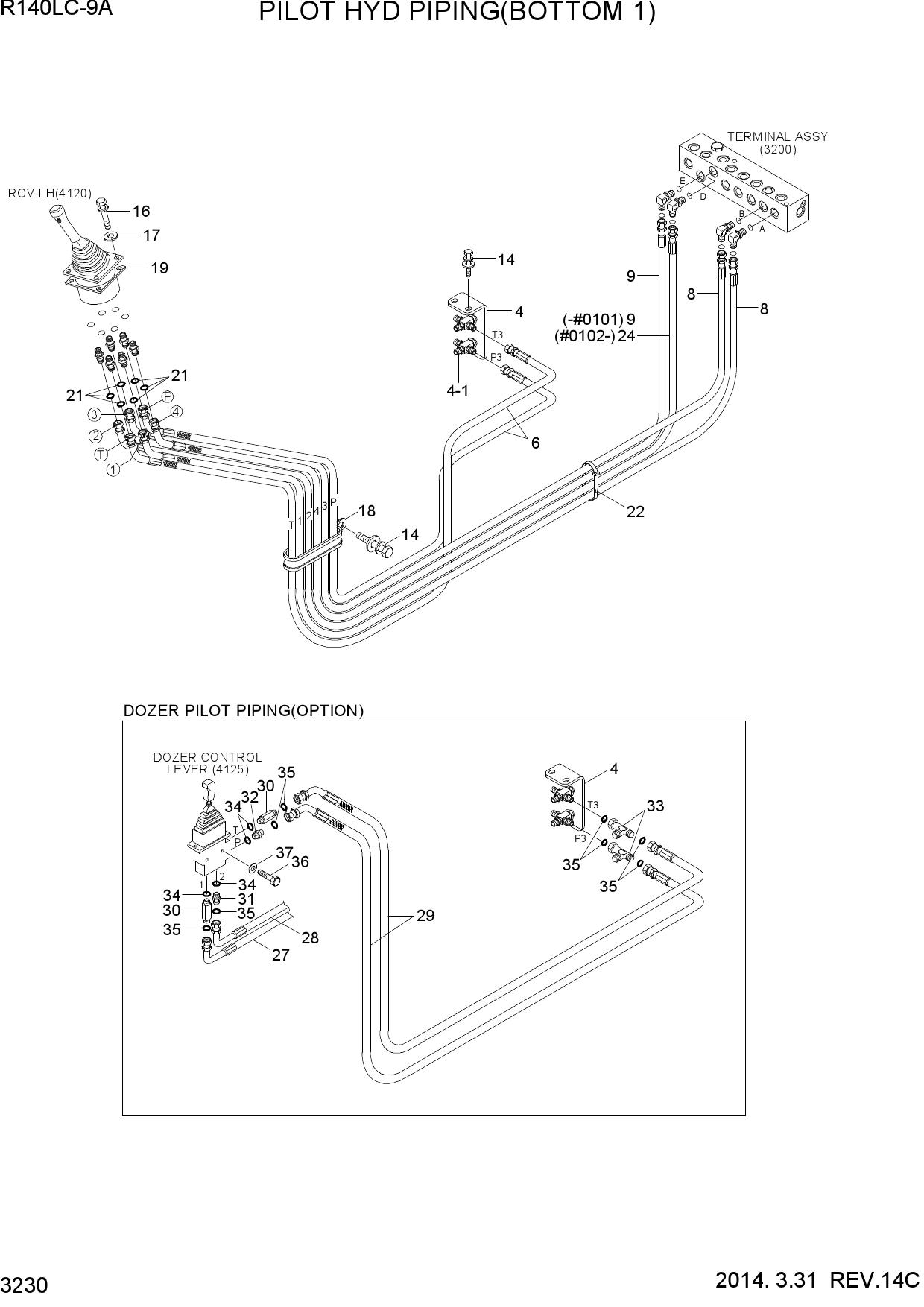

Запчасти для гусеничных экскаваторов Hyundai R140LC-9A PILOT HYD PIPING(BOTTOM 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N6-25100 | CROSS ASSY | |
| 4-1 | 31N6-25040 | CROSS-BULKHEAD TYPE | |
| 6 | X410-042023 | HOSE ASSY-ORFS 0X45 | |
| 8 | X410-042036 | HOSE ASSY-SYNFLEX,ORFS | |
| 9 | X410-042037 | HOSE ASSY-ORFS 0X45 | |
| 9 | X410-042037 | HOSE ASSY-ORFS 0X45 | |
| 14 | S037-102046 | BOLT-W/WASHER | |
| 16 | S035-063046 | BOLT-W/WASHER | |
| 17 | S403-062006 | WASHER-PLAIN | |
| 18 | 31E7-0312 | CLAMP-HOSE | |
| 19 | 31M6-51061 | SHIM(3.2T) | |
| 21 | S621-011001 | O-RING | |
| 22 | S551-050203 | CLAMP-BAND | |
| 24 | X410-042039 | HOSE ASSY-SYNFLEX,ORFS | |
| 27 | X420-042067 | HOSE ASSY-ORFS 0X90 | |
| 28 | X420-042058 | HOSE ASSY-ORFS 0X90 | |
| 29 | X410-042018 | HOSE ASSY-ORFS 0X45 | |
| 30 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 31 | X500-110001 | CONNECTOR-ORFS | |
| 32 | 31N6-25060 | FILTER-LAST GUARD | |
| 33 | X840-515151 | TEE-R/TYPE,ORFS | |
| 34 | S631-011004 | O-RING | |
| 35 | S621-011001 | O-RING | |
| 36 | S015-080352 | BOLT-HEX | |
| 37 | S403-082002 | WASHER-PLAIN |
