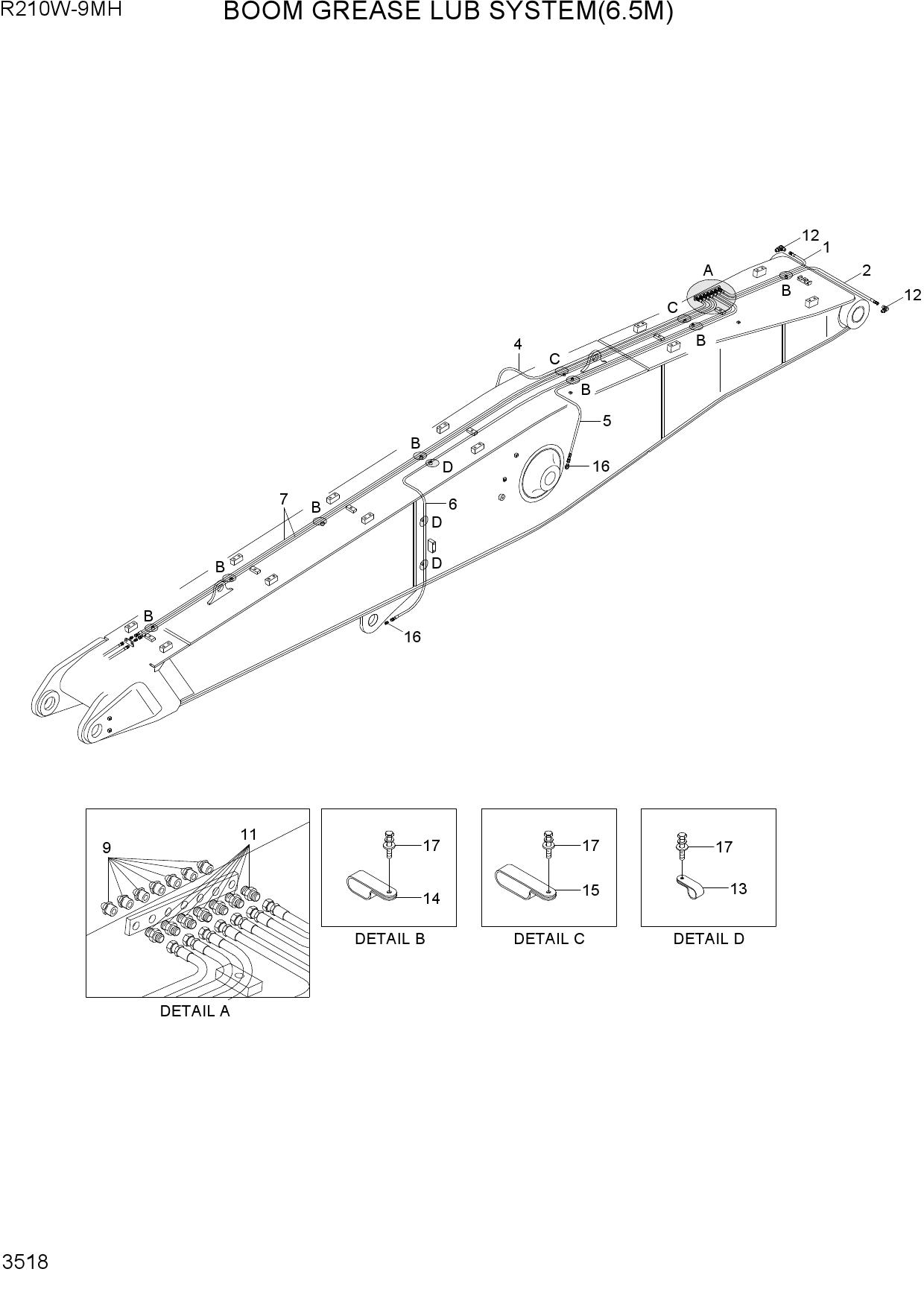

Запчасти для колесных экскаваторов Hyundai R210W9-MH BOOM GREASE LUB SYSTEM(6.5M)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31Q6-98000 | GREASE PIPING KIT | |
| 1 | P840-042016 | HOSE ASSY-SYN THD | |
| 2 | P840-042019 | HOSE ASSY-SYN THD | |
| 4 | P840-042044 | HOSE ASSY-SYN THD | |
| 5 | P840-042050 | HOSE ASSY-SYN THD | |
| 6 | P840-042086 | HOSE ASSY-SYN THD | |
| 7 | P840-042107 | HOSE ASSY-SYN THD | |
| 9 | S651-810002 | NIPPLE-GREASE | |
| 11 | 31W5-70060 | CONNECTOR | |
| 12 | 31NB-50280 | ELBOW-90 | |
| 13 | 31Q6-50370 | CLAMP-HOSE | |
| 14 | 31Q6-50380 | CLAMP-HOSE | |
| 15 | 31Q6-50390 | CLAMP-HOSE | |
| 16 | P010-430011 | CONNECTOR | |
| 17 | S035-082026 | BOLT-W/WASHER |
