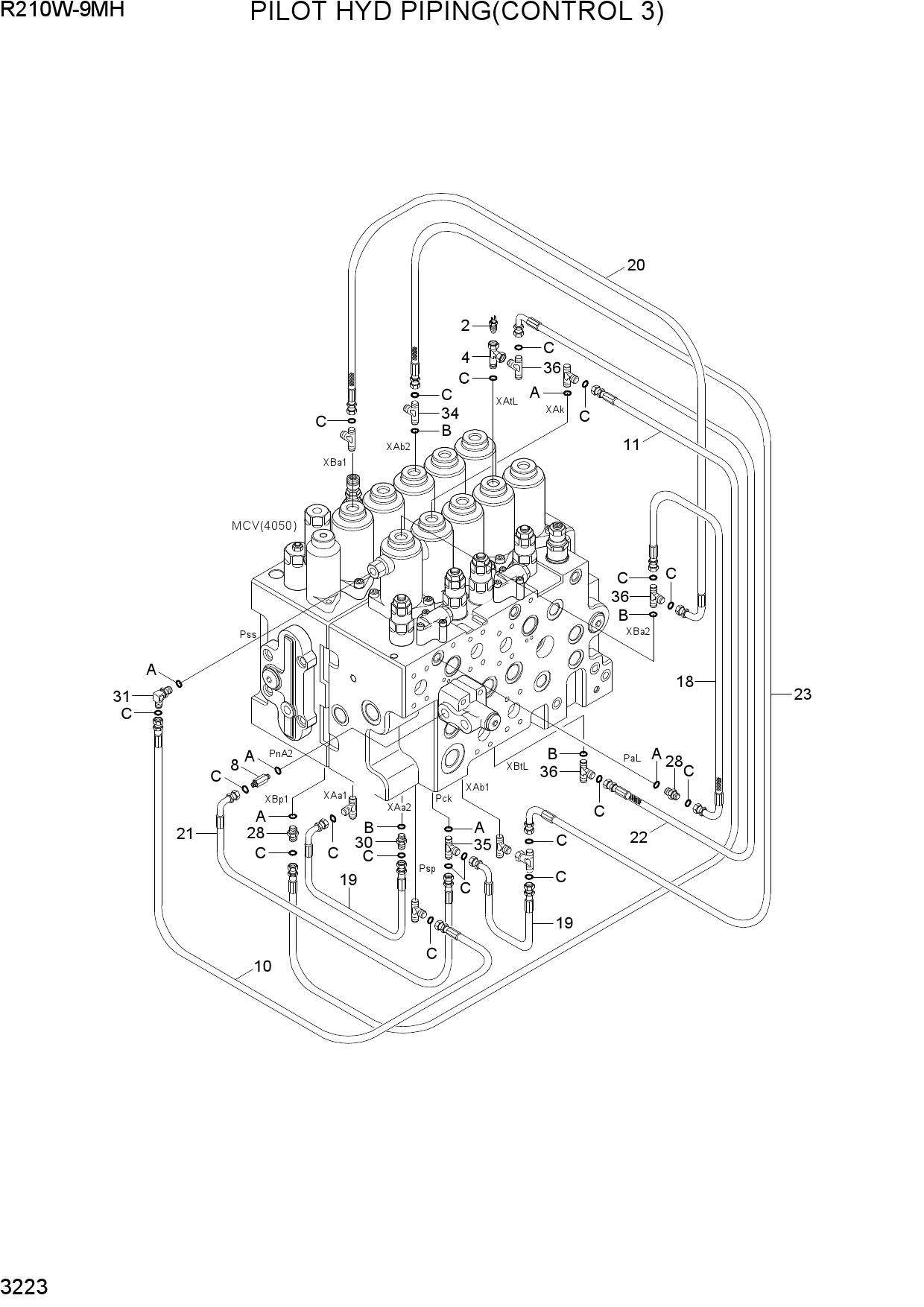

Запчасти для колесных экскаваторов Hyundai R210W9-MH PILOT HYD PIPING(CONTROL 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31E5-40540 | SWITCH-PRESSURE | |
| 4 | 31Q6-20250 | TEE-SHUTTLE | |
| 8 | 31N8-40100 | CONNECTOR-LONG,ORFS | |
| 10 | X400-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 11 | X400-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 18 | X420-042007 | HOSE ASSY-SYNFLEX,ORFS | |
| 19 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 20 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 21 | X420-042016 | HOSE ASSY-SYNFLEX,ORFS | |
| 22 | X420-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 23 | X420-042026 | HOSE ASSY-ORFS 0X90 | |
| 28 | X500-110001 | CONNECTOR-ORFS | |
| 30 | X500-110013 | CONNECTOR-ORFS | |
| 31 | X520-110001 | ELBOW-90,ORFS | |
| 34 | X810-045151 | TEE-B/TYPE,ORFS | |
| 35 | X820-045151 | TEE-R/TYPE,ORFS | |
| 36 | X820-065151 | TEE-R/TYPE,ORFS | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| C | S621-011001 | O-RING |
