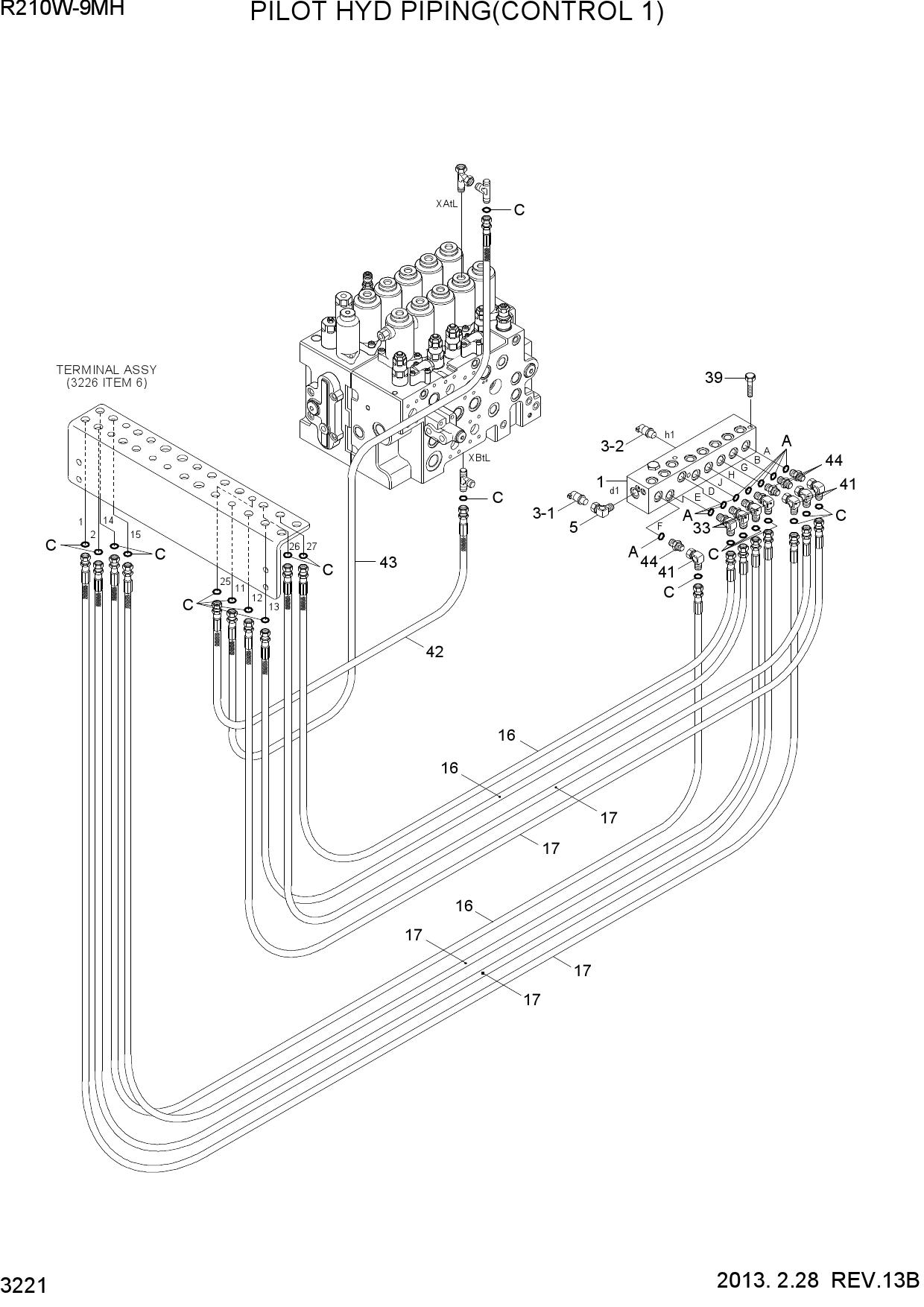

Запчасти для колесных экскаваторов Hyundai R210W9-MH PILOT HYD PIPING(CONTROL 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q6-20171 | BLOCK-TERMINAL | |
| 1-1 | XKAL-00097 | BLOCK-MANIFOLD | |
| 1-2 | XKAL-00096 | VALVE-SHUTTLE | |
| 3-1 | 31Q4-40830 | SENSOR-PRESSURE | |
| 3-2 | 31Q4-40830 | SENSOR-PRESSURE | |
| 5 | 31E5-11110 | ADAPTER | |
| 16 | X400-062046 | HOSE ASSY-SYNFLEX,ORFS | |
| 17 | X400-062047 | HOSE ASSY-SYNF,ORFS | |
| 33 | X520-110011 | ELBOW-90,ORFS | |
| 39 | S015-080756 | BOLT-HEX | |
| 41 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 42 | P910-042060 | HOSE ASSY-ORFS 0X0 | |
| 43 | P910-042064 | HOSE ASSY-ORFS 0X0 | |
| 44 | X500-110011 | CONNECTOR-ORFS | |
| A | S631-011004 | O-RING | |
| C | S621-011001 | O-RING |
