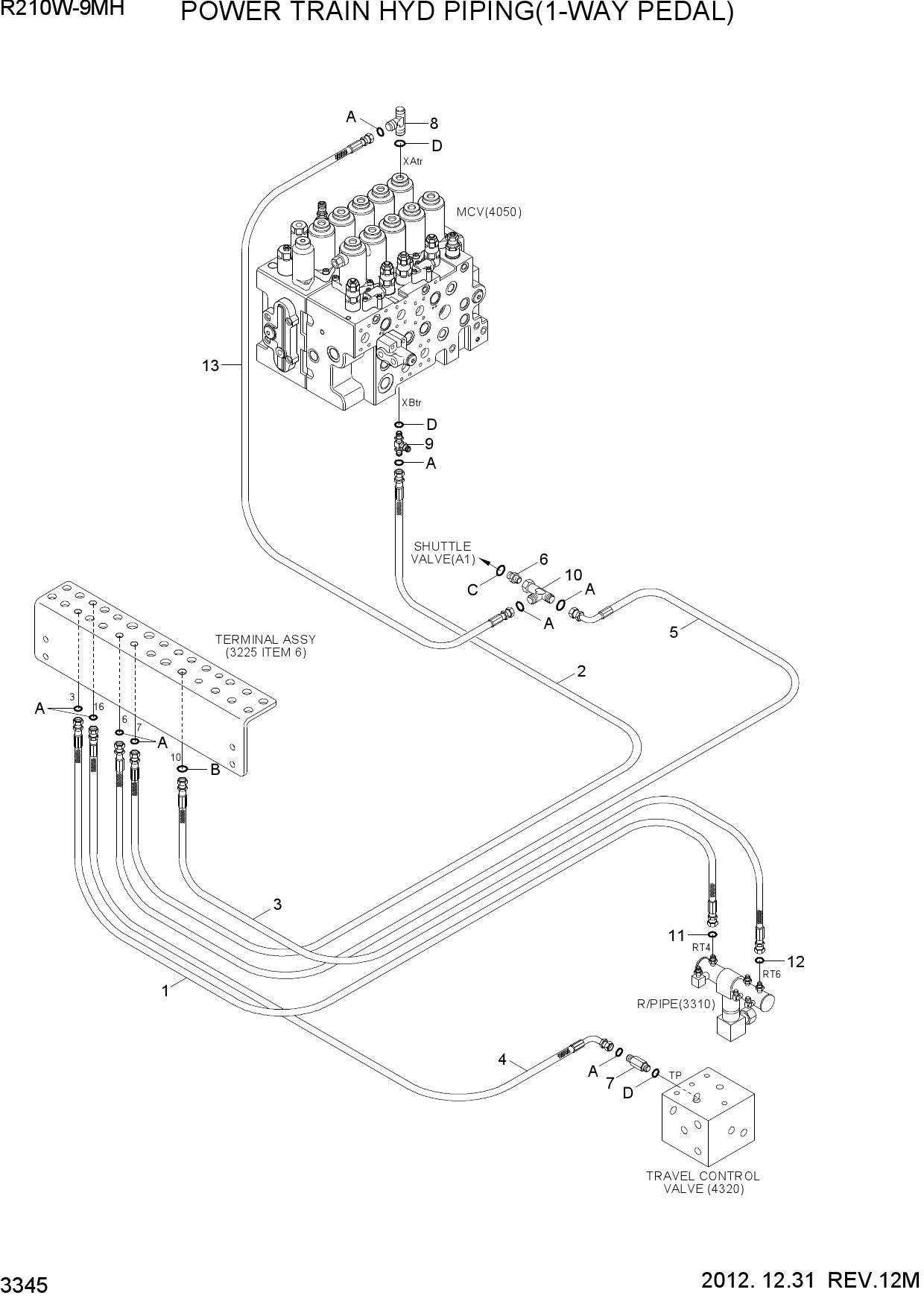

Запчасти для колесных экскаваторов Hyundai R210W9-MH POWER TRAIN HYD PIPING(1-WAY PEDAL)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | X400-042040 | HOSE ASSY-SYNFLEX,ORFS | |
| 2 | X400-042057 | HOSE ASSY-SYNFLEX,ORFS | |
| 3 | X400-062040 | HOSE ASSY-SYNFLEX,ORFS | |
| 4 | X420-042050 | HOSE ASSY-SYNFLEX,ORFS | |
| 5 | X420-042051 | HOSE ASSY-ORFS 0X90 | |
| 6 | X500-110001 | CONNECTOR-ORFS | |
| 7 | X511-106513 | CONNECTOR-LONG,ORFS | |
| 8 | X810-065151 | TEE-B/TYPE,ORFS | |
| 9 | X820-065151 | TEE-R/TYPE,ORFS | |
| 10 | X840-515151 | TEE-R/TYPE,ORFS | |
| 11 | S621-011001 | O-RING | |
| 12 | S621-012001 | O-RING | |
| 13 | X400-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S631-011004 | O-RING | |
| D | S631-014004 | O-RING |
