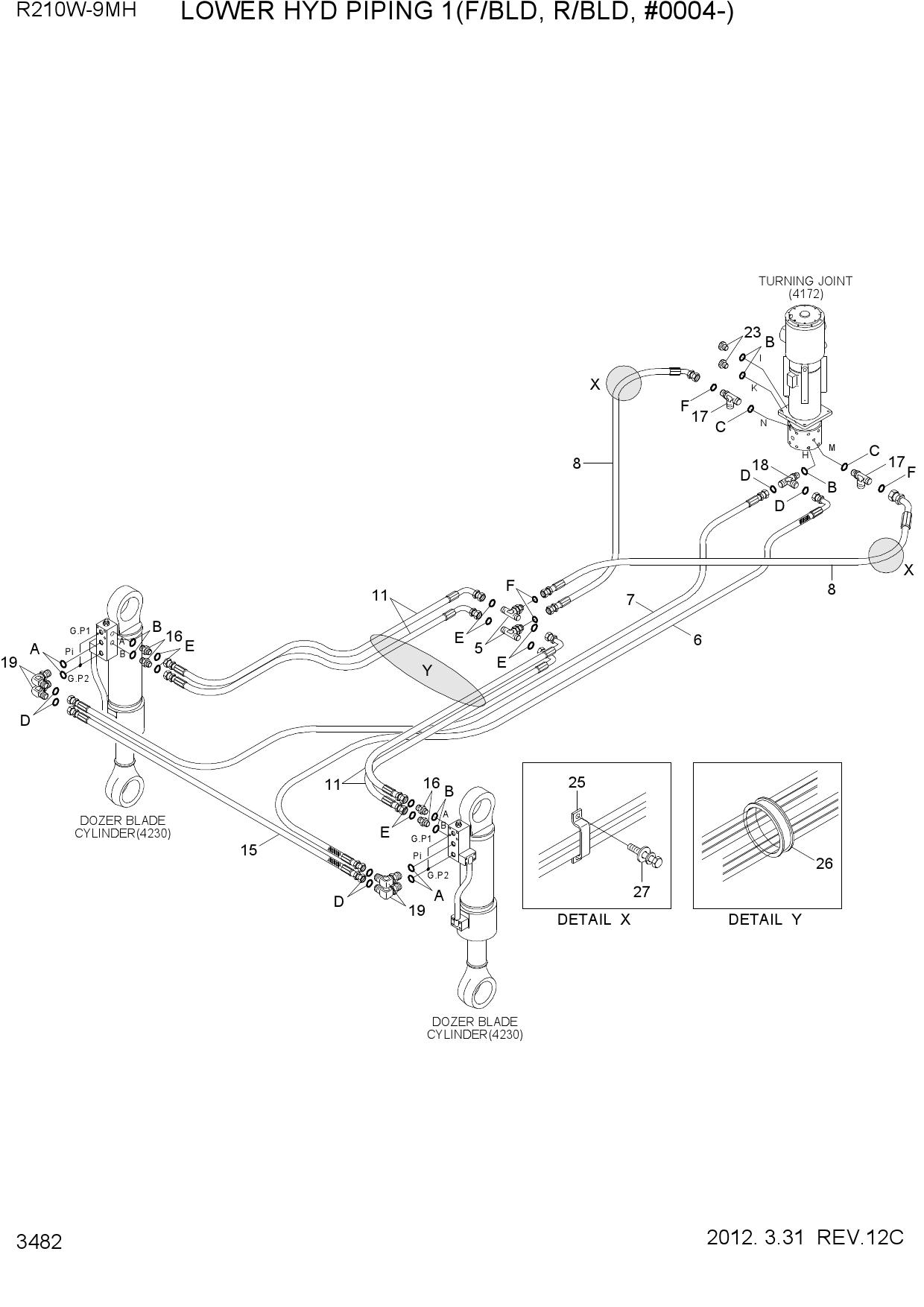

Запчасти для колесных экскаваторов Hyundai R210W9-MH LOWER HYD PIPING 1(F/BLD, R/BLD, #0004-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31Q4-43180 | TEE | |
| 6 | P933-043054 | HOSE ASSY-ORFS 0X90 | |
| 7 | P913-043054 | HOSE ASSY-ORFS 0X0 | |
| 8 | P923-087030 | HOSE ASSY-ORFS 0X45 | |
| 11 | P933-067023 | HOSE ASSY-ORFS 0X90 | |
| 15 | P913-049014 | HOSE ASSY-ORFS 0X0 | |
| 16 | X500-110002 | CONNECTOR-ORFS | |
| 17 | X820-085353 | TEE-R/TYPE,ORFS | |
| 18 | X820-065151 | TEE-R/TYPE,ORFS | |
| 19 | X520-110001 | ELBOW-90,ORFS | |
| 23 | P220-110103 | PLUG-HEX | |
| 25 | 31EM-45320 | CLAMP-HOSE | |
| 26 | S760-111812 | GROMMET | |
| 27 | S037-102026 | BOLT-W/WASHER | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| C | S631-018004 | O-RING | |
| D | S621-011001 | O-RING | |
| E | S621-012001 | O-RING | |
| F | S621-014001 | O-RING |
