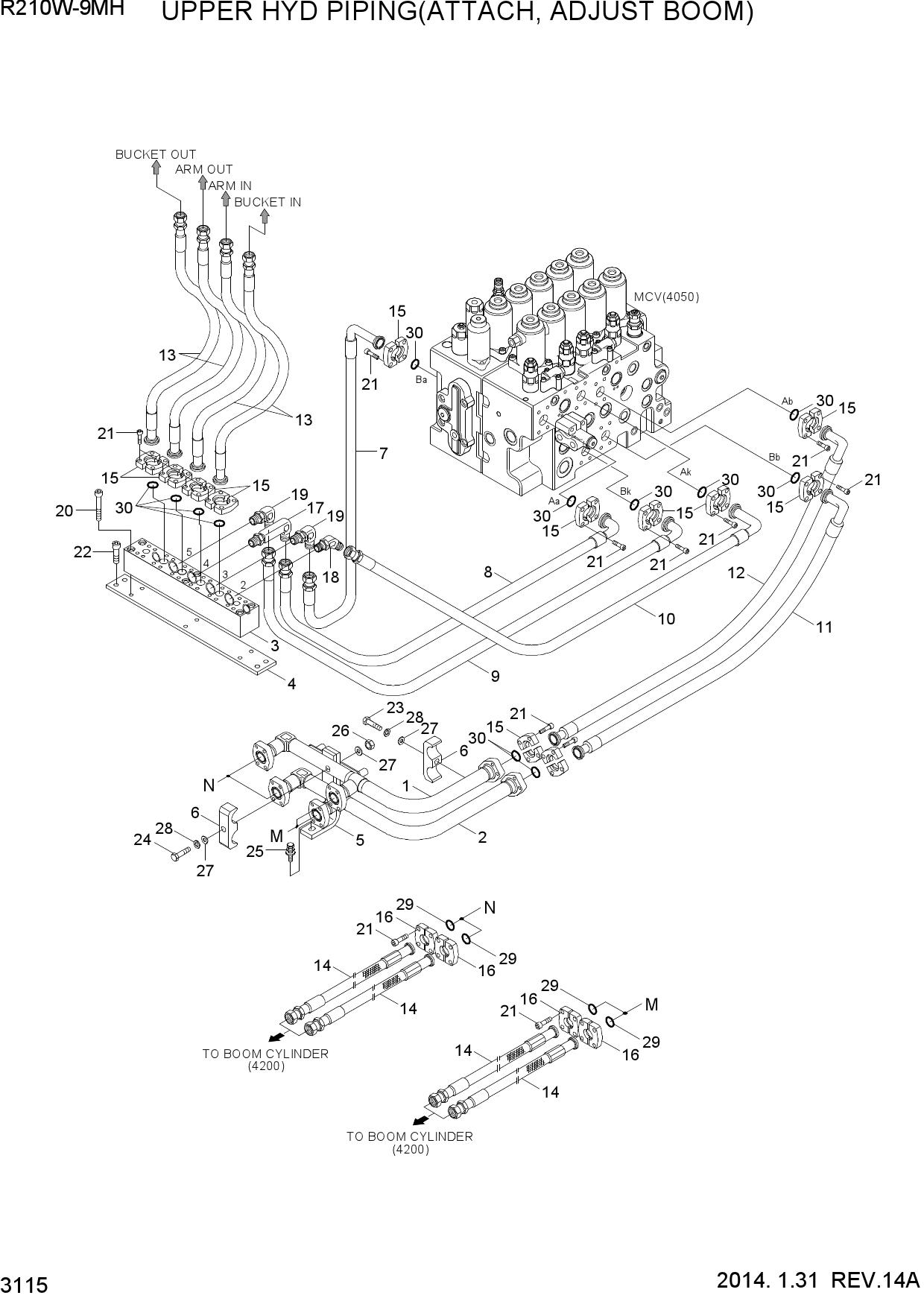

Запчасти для колесных экскаваторов Hyundai R210W9-MH UPPER HYD PIPING(ATTACH, ADJUST BOOM)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q6-13270 | PIPE WA | |
| 2 | 31Q6-13280 | PIPE WA | |
| 3 | 31Q6-13710 | BLOCK | |
| 4 | 31Q6-13720 | BRACKET | |
| 5 | 31Q6-11322 | BRACKET WA | |
| 6 | 31Q6-11330 | CLAMP | |
| 7 | 31Q6-13750 | HOSE ASSY | |
| 8 | P983-168321 | HOSE ASSY-ORFS 0X90 | |
| 9 | 31Q6-13740 | HOSE ASSY | |
| 10 | 31Q6-13730 | HOSE ASSY | |
| 11 | 31Q6-13361 | HOSE ASSY | |
| 12 | 31Q6-13370 | HOSE ASSY | |
| 13 | P943-168332 | HOSE ASSY-ORFS,FLG | |
| 14 | P944-128318 | HOSE ASSY-ORFS,FLG | |
| 14 | 31Q6-15920 | HOSE ASSY-FLG(HI-GRADE) | |
| 15 | P173-160104 | FLANGE-HYD,SPLIT | |
| 16 | P173-120102 | FLANGE-HYD,SPLIT | |
| 17 | 31Q8-11200 | ELBOW-90,ORFS,LONG | |
| 18 | X530-110005 | ELBOW-45,ORFS | |
| 19 | X520-110005 | ELBOW-90,ORFS | |
| 20 | S109-120806 | BOLT-SOCKET | |
| 21 | S109-100306 | BOLT-SOCKET | |
| 22 | S017-120356 | BOLT-HEX | |
| 23 | S017-120706 | BOLT-HEX | |
| 24 | S017-120956 | BOLT-HEX | |
| 25 | S037-123026 | BOLT-W/WASHER | |
| 26 | S205-12100B | NUT-HEX | |
| 27 | S403-12200B | WASHER-PLAIN | |
| 28 | S411-120006 | WASHER-SPRING | |
| 29 | Y171-019004 | O-RING | |
| 30 | Y171-024004 | O-RING |
