- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING(ATTACH, ADJUST BOOM)
- UPPER HYD PIPING(TRAVEL)
- UPPER HYD PIPING(ADJUST BOOM)
- CONTROL VALVE(ADJUST BOOM)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 3)
- ELEVATED CABIN HYD PIPING 1
- ELEVATED CABIN HYD PIPING 2
- ELEVATED CABIN HYD PIPING 3
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(4 OUTRIGGER)
- POWER TRAIN HYD PIPING 1
- POWER TRAIN HYD PIPING 2
- POWER TRAIN HYD PIPING 3
- POWER TRAIN HYD PIPING(1-WAY PEDAL)
- LOWER HYD PIPING 1(-#0003)
- LOWER HYD PIPING 2(-#0003)
- LOWER HYD PIPING 3(-#0003)
- LOWER HYD PIPING 1(#0004-)
- LOWER HYD PIPING 2(#0004-)
- LOWER HYD PIPING 3(#0004-)
- FRONT OUTRIGGER HYD PIPING(-#0003)
- REAR DOZER BLADE HYD PIPING(-#0003)
- FRONT OUTRIGGER HYD PIPING(#0004-)
- REAR DOZER BLADE HYD PIPING((#0004-)
- FR OUTRIGGER PIPING(4 OUTRIGGER, -#0003)
- RR OUTRIGGER PIPING(4 OUTRIGGER, -#0003)
- FR OUTRIGGER PIPING(4 OUTRIGGER, #0004-)
- RR OUTRIGGER PIPING(4 OUTRIGGER, #0004-)
- LOWER HYD PIPING 1(F/BLD, R/OUT, -#0003)
- LOWER HYD PIPING 2(F/BLD, R/OUT, -#0003)
- LOWER HYD PIPING 1(F/BLD, R/OUT, #0004-)
- LOWER HYD PIPING 2(F/BLD, R/OUT, #0004-)
- LOWER HYD PIPING 1(F/BLD, R/BLD, -#0003)
- LOWER HYD PIPING 2(F/BLD, R/BLD, -#0003)
- LOWER HYD PIPING 1(F/BLD, R/BLD, #0004-)
- LOWER HYD PIPING 1(F/BLD, R/BLD, #0004-)
- BOOM HYD PIPING(6.5M)
- BOOM GREASE LUB SYSTEM(6.5M)
- BOOM SAFETY LOCK SYSTEM
- ARM HYD PIPING(4.5M)
- ARM GREASE LUB SYSTEM(4.5M)
- ARM SAFETY LOCK SYSTEM

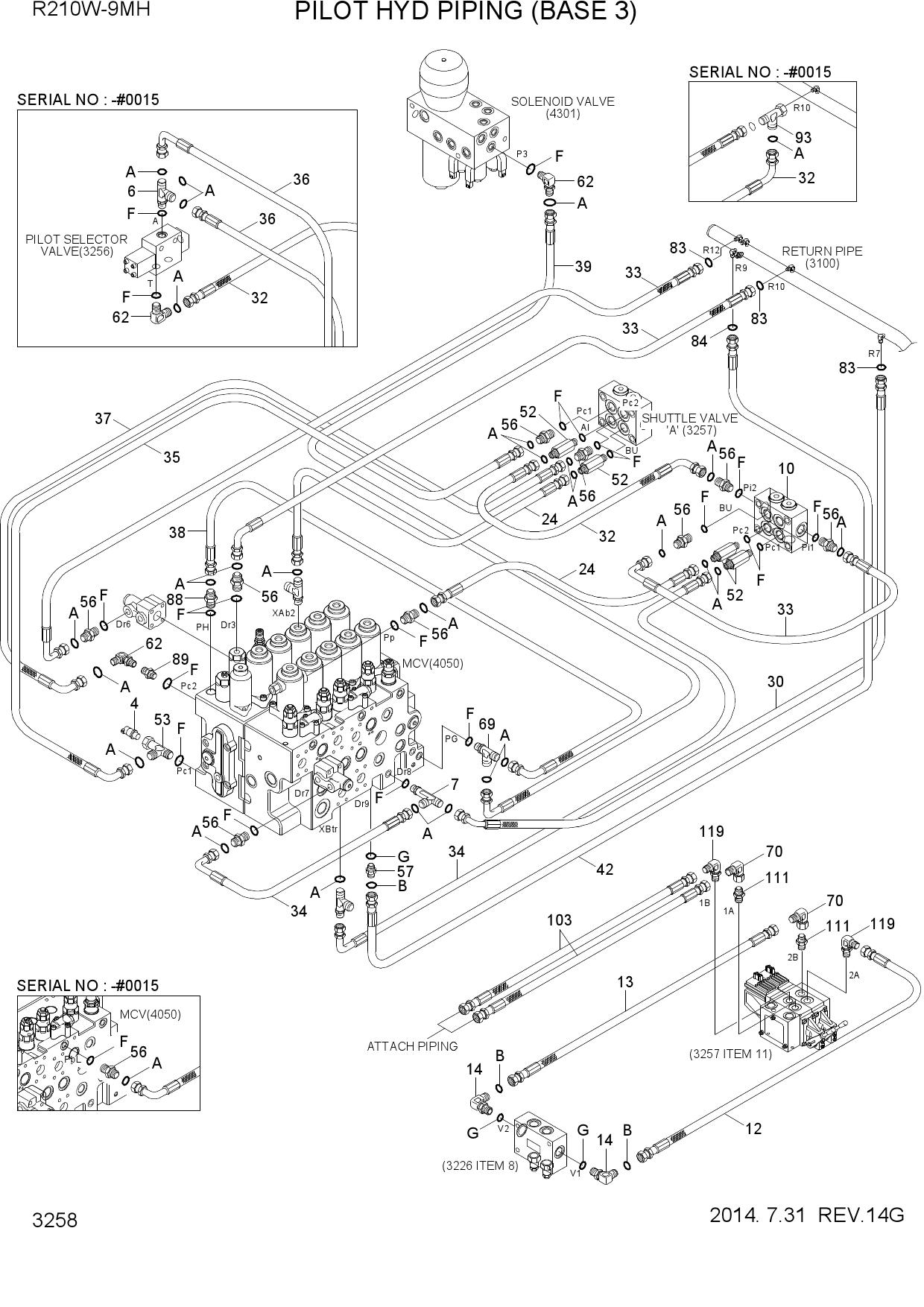

Запчасти для колесных экскаваторов Hyundai R210W9-MH PILOT HYD PIPING(BASE 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q4-40610 | SENSOR-PRESSURE | |
| 6 | 31Q6-20180 | TEE-SHUTTLE | |
| 7 | 31N4-22150 | TEE-LONG,ORFS | |
| 10 | 31Q6-21180 | VALVE-SHUTTLE | |
| 10 | 31Q6-21191 | VALVE-SHUTTLE | |
| 12 | P913-087009 | HOSE ASSY-ORFS 0X0 | |
| 13 | P913-087011 | HOSE ASSY-ORFS 0X0 | |
| 14 | X520-110013 | ELBOW-90,ORFS | |
| 24 | X400-042026 | HOSE ASSY-ORFS 0X0 | |
| 30 | X410-042007 | HOSE ASSY-ORFS 0X45 | |
| 32 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 32 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 33 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 34 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 35 | X420-042017 | HOSE ASSY-SYNFLEX,ORFS | |
| 36 | X420-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 37 | X420-042019 | HOSE ASSY-SYNFLEX,ORFS | |
| 38 | X420-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 39 | X420-042037 | HOSE ASSY-SYNFLEX,ORFS | |
| 42 | P910-062018 | HOSE ASSY-ORFS 0X0 | |
| 52 | 31N8-40100 | CONNECTOR-LONG,ORFS | |
| 53 | 31NB-20130 | TEE-RUN TYPE/TEST | |
| 56 | X500-110001 | CONNECTOR-ORFS | |
| 56 | X500-110001 | CONNECTOR-ORFS | |
| 57 | X500-110002 | CONNECTOR-ORFS | |
| 62 | X520-110001 | ELBOW-90,ORFS | |
| 62 | X520-110001 | ELBOW-90,ORFS | |
| 69 | X820-045151 | TEE-R/TYPE,ORFS | |
| 70 | X850-535300 | ELBOW-90,SWIVEL,ORFS | |
| 83 | S621-011001 | O-RING | |
| 84 | S621-012001 | O-RING | |
| 88 | X500-110013 | CONNECTOR-ORFS | |
| 89 | X500-310004 | CONNECTOR-ORFS | |
| 93 | X840-515151 | TEE-R/TYPE,ORFS | |
| 103 | P910-087054 | HOSE ASSY-ORFS 0X0 | |
| 111 | 31S8-20160 | CONNECTOR | |
| 119 | 31LB-40360 | ELBOW-90 | |
| A | S621-011001 | O-RING | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| F | S631-011004 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R210W9-MH в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
