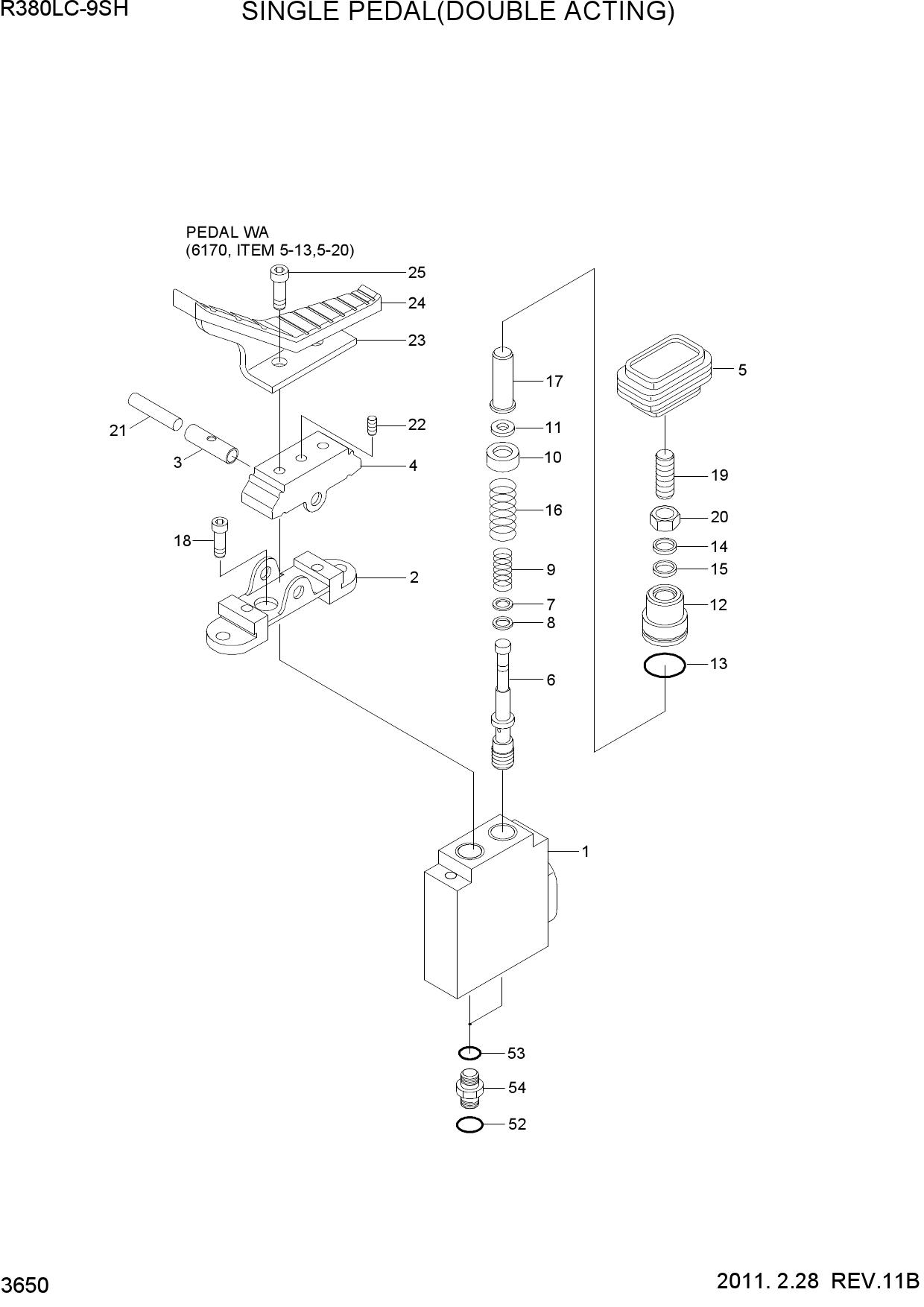

Запчасти для гусеничных экскаваторов Hyundai R380LC-9 SINGLE PEDAL(DOUBLE ACTING)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| *-1 | 31Q6-20300 | PEDAL-SINGLE | |
| 1 | XKAY-00424 | CASING | |
| *-11 | XKAY-01056 | COVER KIT | |
| 2 | XKAY-00554 | COVER | |
| 3 | XKAY-00010 | BUSHING | |
| *-12 | XKAY-01057 | CAM KIT | |
| N4 | XKAY-01075 | CAM | |
| 19 | XKAY-00007 | SCREW-SET | |
| 20 | XKAY-00006 | NUT-HEX | |
| 22 | XKAY-00560 | SCREW-SET | |
| 5 | XKAY-00005 | BELLOWS | |
| *-13 | XKAY-01058 | SPOOL KIT | |
| 6 | XKAY-00555 | SPOOL | |
| 7 | XKAY-00556 | SHIM(1.0T) | |
| 8 | XKAY-00029 | SEAT-SPRING | |
| 9 | XKAY-01076 | SPRING | |
| 10 | XKAY-00558 | SEAT-SPRING | |
| 11 | XKAY-00058 | STOPPER | |
| *-14 | XKAY-01059 | PUSH ROD KIT | |
| 12 | XKAY-00559 | PLUG | |
| 13 | XKAY-00438 | O-RING | |
| 14 | XKAY-00097 | SEAL-DUST | |
| 15 | XKAY-00055 | SEAL-ROD | |
| 17 | XKAY-01060 | ROD-PUSH | |
| 16 | XKAY-00600 | SPRING | |
| 18 | XKAY-00431 | BOLT-SOCKET | |
| 21 | XKAY-00009 | SHAFT-CAM | |
| 23 | XKAY-00432 | PEDAL | |
| 24 | XKAY-00433 | PEDAL COVER | |
| 25 | XKAY-00434 | BOLT-SOCKET | |
| 52 | S621-011001 | O-RING | |
| 53 | S631-011004 | O-RING | |
| 54 | X500-110001 | CONNECTOR-ORFS |
