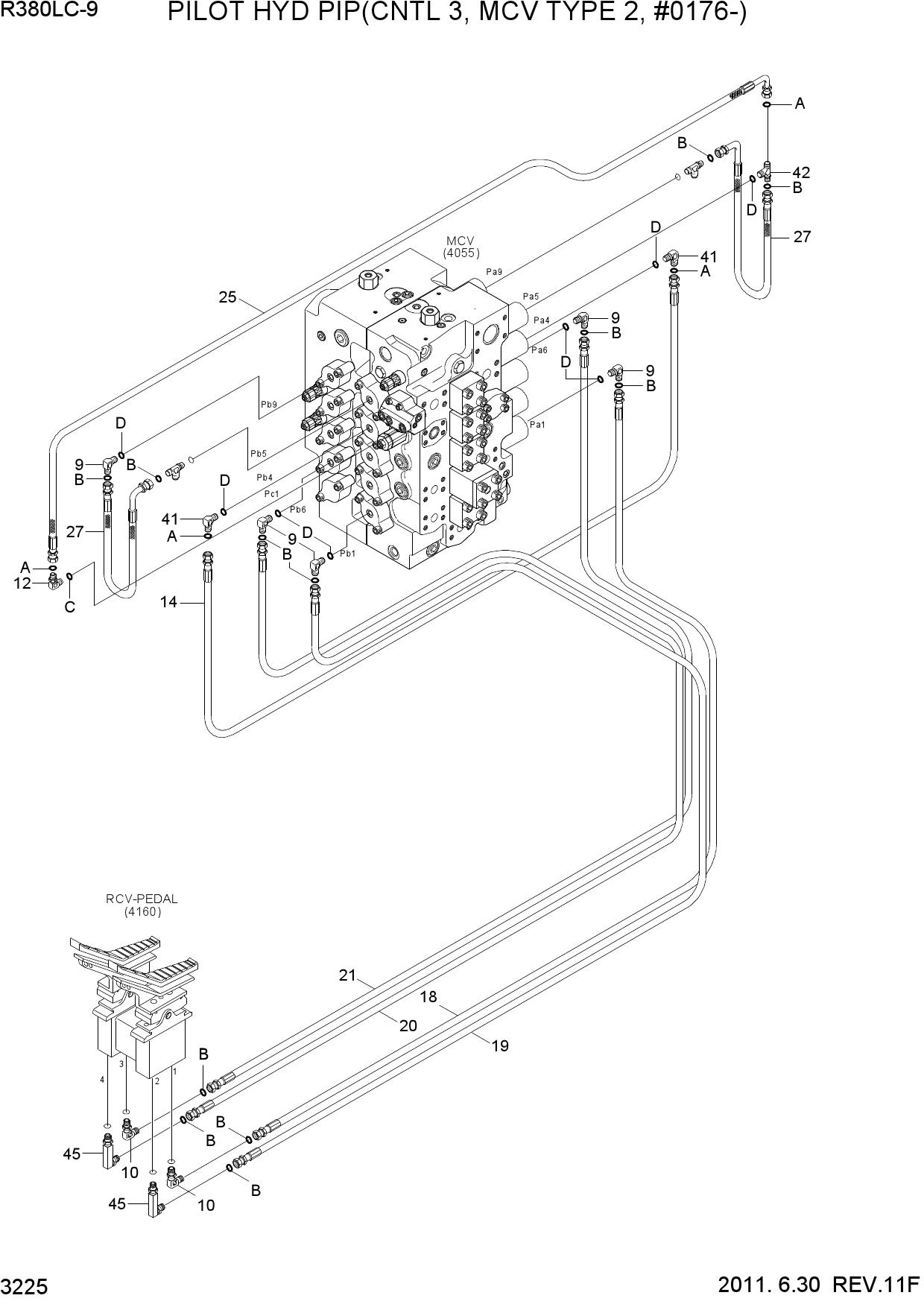

Запчасти для гусеничных экскаваторов Hyundai R380LC-9 PILOT HYD PIP(CNTL 3,MCV TYPE 2,#0176-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | X520-110002 | ELBOW-90,ORFS | |
| 10 | X520-110011 | ELBOW-90,ORFS | |
| 12 | X520-110001 | ELBOW-90,ORFS | |
| 14 | X400-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 18 | X400-062067 | HOSE ASSY-SYNFLEX,ORFS | |
| 19 | X400-062070 | HOSE ASSY-SYNFLEX,ORFS | |
| 19 | X400-062077 | HOSE ASSY-SYNFLEX,ORFS | |
| 20 | X400-062073 | HOSE ASSY-SYNF,ORFS | |
| 20 | X400-062069 | HOSE ASSY-SYNFLEX ORFS | |
| 21 | X400-062075 | HOSE ASSY-SYNF,ORFS | |
| 21 | X400-062079 | HOSE ASSY-SYNFLEX,ORFS | |
| 25 | X420-042023 | HOSE ASSY-SYNFLEX,ORFS | |
| 25 | X423-042023 | HOSE ASSY-ORFS 0X90 | |
| 27 | X420-062009 | HOSE ASSY-ORFS 0X90 | |
| 41 | X520-110012 | ELBOW-90,ORFS | |
| 42 | X820-065251 | TEE-R/TYPE,ORFS | |
| 45 | 31N7-22100 | ELBOW-90,ORFS,LONG | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S631-011004 | O-RING | |
| D | S631-014004 | O-RING |
