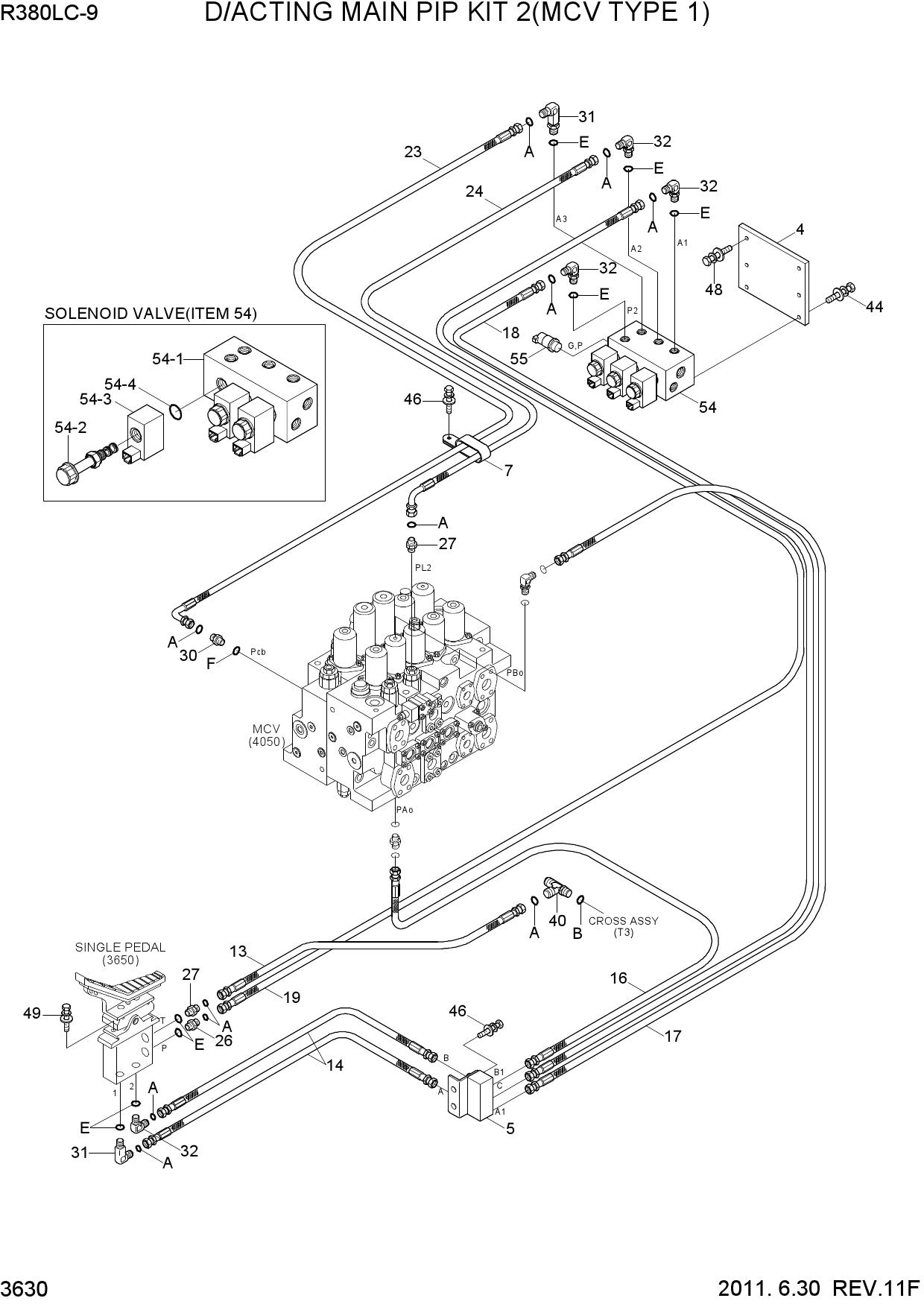

Запчасти для гусеничных экскаваторов Hyundai R380LC-9 D/ACTING MAIN PIP KIT 2(MCV TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31QA-90410 | D/ACT MAIN PIPING KIT | |
| 4 | 31Q6-90450 | BRACKET-SOL VALVE | |
| 5 | 31Q6-90460 | 5-SHUTTLE ASSY | |
| 7 | 31L7-10230 | CLAMP | |
| 13 | P910-042018 | HOSE ASSY-ORFS 0X0 | |
| 14 | P910-042022 | HOSE ASSY-ORFS 0X0 | |
| 16 | P910-042050 | HOSE ASSY-ORFS 0X0 | |
| 17 | P910-042060 | HOSE ASSY-ORFS 0X0 | |
| 18 | P910-042076 | HOSE ASSY-ORFS 0X0 | |
| 19 | P910-042093 | HOSE ASSY-ORFS 0X0 | |
| 23 | P930-042047 | HOSE ASSY-ORFS 0X90 | |
| 24 | P930-042055 | HOSE ASSY-ORFS 0X90 | |
| 26 | 31N6-25060 | FILTER-LAST GUARD | |
| 27 | X500-110001 | CONNECTOR-ORFS | |
| 30 | X500-110013 | CONNECTOR-ORFS | |
| 31 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 32 | X520-110001 | ELBOW-90,ORFS | |
| 40 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 44 | S035-082026 | BOLT-W/WASHER | |
| 46 | S037-102026 | BOLT-W/WASHER | |
| 48 | S037-122526 | BOLT-W/WASHER | |
| 49 | S037-103026 | BOLT-W/WASHER | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| E | S631-011004 | O-RING | |
| F | S631-014004 | O-RING | |
| 54 | 31Q6-20050 | VALVE-SOLENOID | |
| 54-1 | 34Q6-20050 | MANIFOLD | |
| 54-2 | EDH044/32-04 | VALVE-SOLENOID | |
| 54-3 | EDH04-27V-H | COIL | |
| 54-4 | 230.00.064.0 | SEAL | |
| 55 | 31Q8-40520 | PRESSURE SENSOR | |
| 55 | 31Q4-40830 | SENSOR-PRESSURE |
