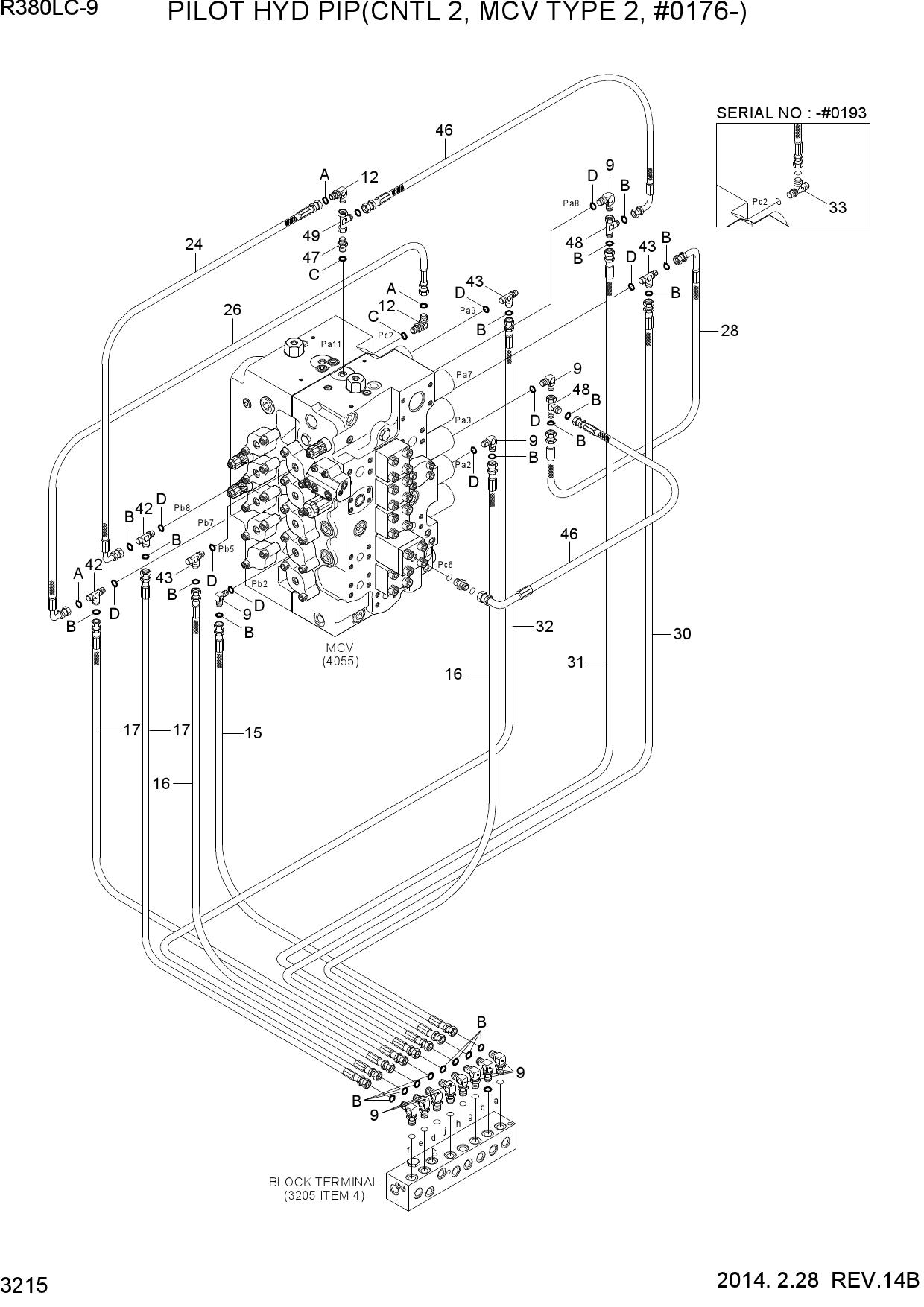

Запчасти для гусеничных экскаваторов Hyundai R380LC-9 PILOT HYD PIP(CNTL 2,MCV TYPE 2,#0176-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | X520-110002 | ELBOW-90,ORFS | |
| 12 | X520-110001 | ELBOW-90,ORFS | |
| 12 | X520-110001 | ELBOW-90,ORFS | |
| 15 | X400-062028 | HOSE ASSY-SYNFLEX,ORFS | |
| 16 | X400-062038 | HOSE ASSY-SYNF,ORFS | |
| 17 | X400-062040 | HOSE ASSY-SYNFLEX,ORFS | |
| 24 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 26 | X420-042025 | HOSE ASSY-SYNFLEX,ORFS | |
| 28 | X420-062014 | HOSE ASSY-SYNFLEX,ORFS | |
| 30 | X400-062031 | HOSE ASSY-SYNF,ORFS | |
| 31 | X400-062033 | HOSE ASSY-SYNFLEX,ORFS | |
| 32 | X400-062034 | HOSE ASSY-SYNF,ORFS | |
| 33 | X820-045151 | TEE-R/TYPE,ORFS | |
| 42 | X820-065251 | TEE-R/TYPE,ORFS | |
| 43 | X820-065252 | TEE-R/TYPE,ORFS | |
| 46 | P930-042014 | HOSE ASSY-ORFS 0X90 | |
| 47 | X500-110001 | CONNECTOR-ORFS | |
| 48 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 49 | 31N6-30130 | TEE-SHUTTLE,S/NUT | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S631-011004 | O-RING | |
| D | S631-014004 | O-RING |
