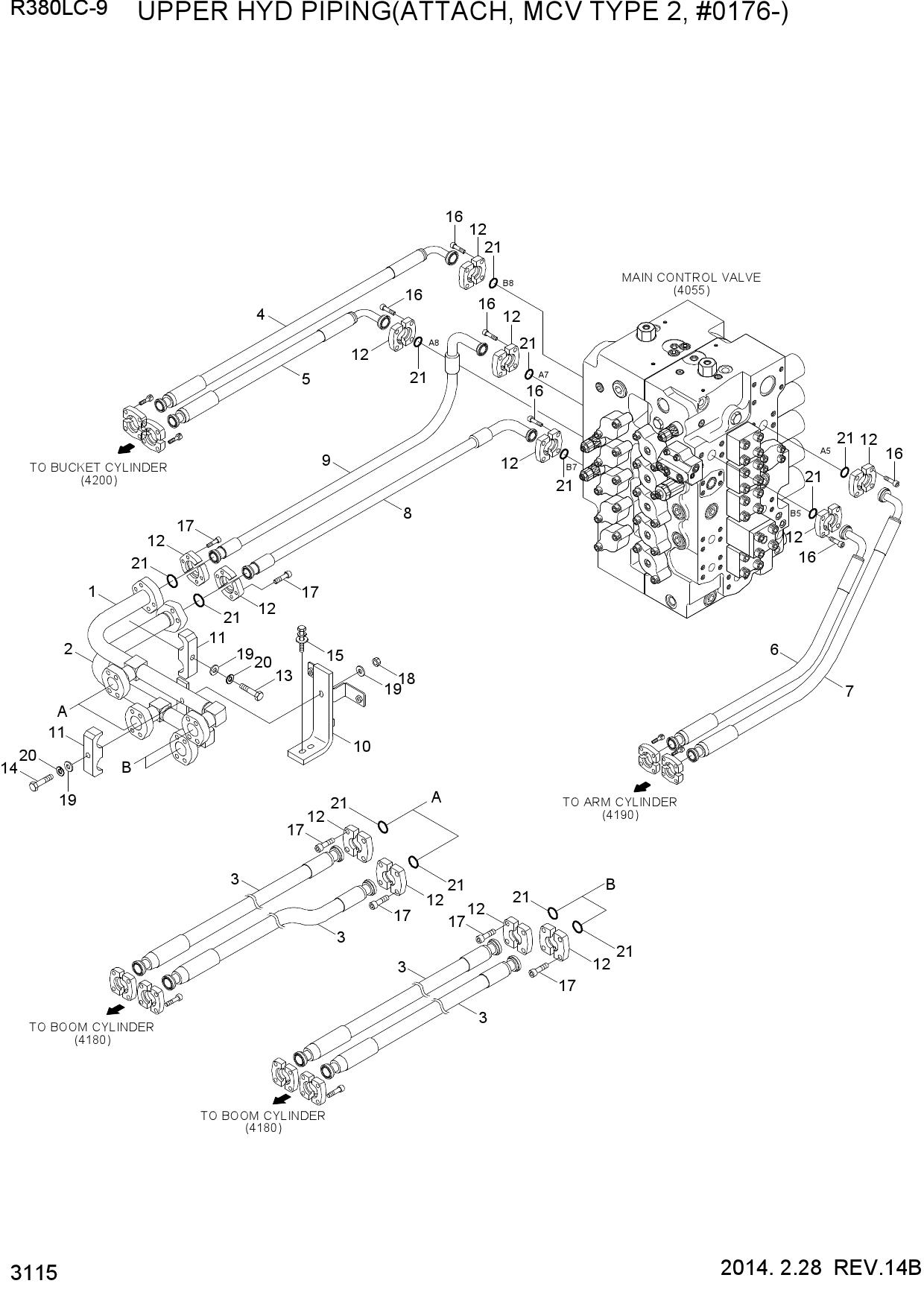

Запчасти для гусеничных экскаваторов Hyundai R380LC-9 UPPER HYD PIP(ATTACH,MCV TYPE 2,#0176-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31QA-11311 | PIPE WA | |
| 2 | 31QA-11321 | PIPE WA | |
| 3 | 31QA-11392 | HOSE ASSY-FLG 0X0 | |
| 3 | 31QA-11393 | HOSE ASSY-FLG 0X0 | |
| 3 | 31QA-11680 | HOSE ASSY(HI-GRADE) | |
| 4 | 31QA-12230 | HOSE ASSY | |
| 4 | 31QA-12231 | HOSE ASSY | |
| 5 | 31QA-12240 | HOSE ASSY | |
| 5 | 31QA-12241 | HOSE ASSY | |
| 6 | 31QA-12300 | HOSE ASSY | |
| 6 | 31QA-12301 | HOSE ASSY | |
| 7 | 31QA-12310 | HOSE ASSY | |
| 7 | 31QA-12311 | HOSE ASSY | |
| 8 | 31QA-12210 | HOSE ASSY-FLG 0X90 | |
| 9 | 31QA-12220 | HOSE ASSY-FLG 0X90 | |
| 10 | 31QA-11570 | BRACKET WA | |
| 11 | 31QA-11430 | CLAMP | |
| 12 | P174-200106 | FLANGE-SPLIT | |
| 13 | S017-120806 | BOLT-HEX | |
| 14 | S017-121056 | BOLT-HEX | |
| 15 | S037-123026 | BOLT-W/WASHER | |
| 16 | S109-120406 | BOLT-SOCKET | |
| 17 | S109-120506 | BOLT-SOCKET | |
| 18 | S205-12100B | NUT-HEX | |
| 19 | S403-12200B | WASHER-PLAIN | |
| 20 | S411-120006 | WASHER-SPRING | |
| 21 | Y171-027004 | O-RING |
