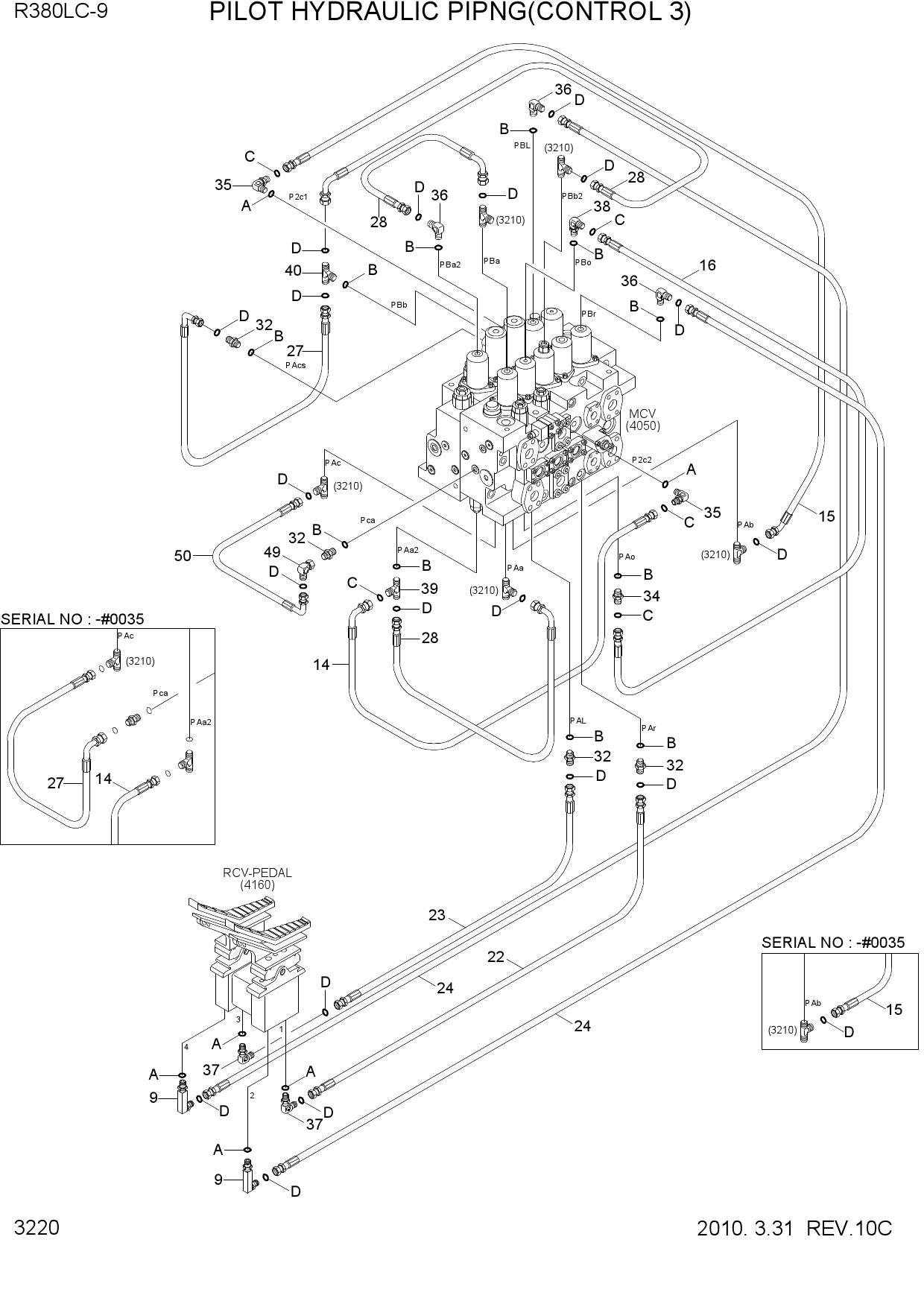

Запчасти для гусеничных экскаваторов Hyundai R380LC-9 PILOT HYD PIPING(CONTROL 3, MCV TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | 31N7-22100 | ELBOW-90,ORFS,LONG | |
| 14 | X400-042013 | HOSE ASSY-SYNFLEX,ORFS | |
| 14 | X420-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 15 | X400-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 15 | X410-042021 | HOSE ASSY-ORFS 0X45 | |
| 16 | X400-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 16 | X400-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 22 | X400-062068 | HOSE ASSY-SYNF,ORFS | |
| 23 | X400-062069 | HOSE ASSY-SYNFLEX ORFS | |
| 24 | X400-062079 | HOSE ASSY-SYNFLEX,ORFS | |
| 27 | X420-062009 | HOSE ASSY-ORFS 0X90 | |
| 27 | X420-062009 | HOSE ASSY-ORFS 0X90 | |
| 28 | X420-062011 | HOSE ASSY-ORFS 0X90 | |
| 32 | X500-110002 | CONNECTOR-ORFS | |
| 34 | X500-110013 | CONNECTOR-ORFS | |
| 35 | X520-110001 | ELBOW-90,ORFS | |
| 36 | X520-110002 | ELBOW-90,ORFS | |
| 37 | X520-110011 | ELBOW-90,ORFS | |
| 38 | X520-110012 | ELBOW-90,ORFS | |
| 39 | X820-065152 | TEE-R/TYPE,ORFS | |
| 40 | X820-065252 | TEE-R/TYPE,ORFS | |
| 49 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 50 | X420-062012 | HOSE ASSY-SYNF,ORFS 0X90 | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| C | S621-011001 | O-RING | |
| D | S621-012001 | O-RING |
