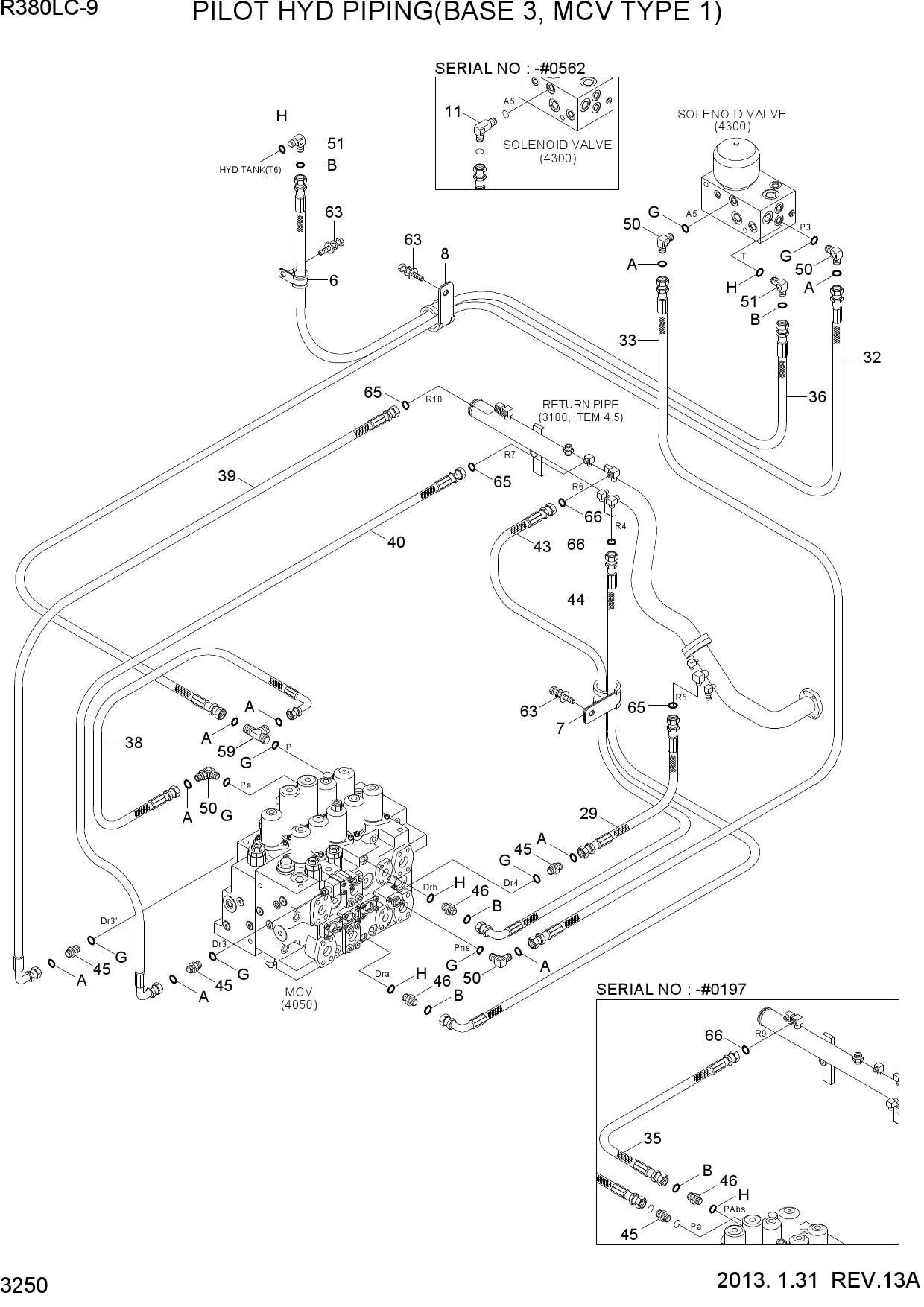

Запчасти для гусеничных экскаваторов Hyundai R380LC-9 PILOT HYD PIPING(BASE 3, MCV TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 6 | 31L7-10210 | CLAMP-TUBE INS | |
| 7 | 31L7-10240 | CLAMP-TUBE INS | |
| 8 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 11 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 29 | X400-042006 | HOSE ASSY-SYNFLEX,ORFS | |
| 32 | X400-042045 | HOSE ASSY-SYNFLEX,ORFS | |
| 33 | X400-042050 | HOSE ASSY-SYNF,ORFS | |
| 35 | X400-062009 | HOSE ASSY-SYNF,ORFS | |
| 36 | X400-062036 | HOSE ASSY-SYNF,ORFS | |
| 38 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 39 | X420-042011 | HOSE ASSY-ORFS 0X90 | |
| 40 | X420-042015 | HOSE ASSY-SYNFLEX,ORFS | |
| 43 | X420-062008 | HOSE ASSY-ORFS 0X90 | |
| 44 | X420-062011 | HOSE ASSY-ORFS 0X90 | |
| 45 | X500-110001 | CONNECTOR-ORFS | |
| 45 | X500-110001 | CONNECTOR-ORFS | |
| 46 | X500-110002 | CONNECTOR-ORFS | |
| 46 | X500-110002 | CONNECTOR-ORFS | |
| 50 | X520-110001 | ELBOW-90,ORFS | |
| 50 | X520-110001 | ELBOW-90,ORFS | |
| 50 | X520-110001 | ELBOW-90,ORFS | |
| 51 | X520-110002 | ELBOW-90,ORFS | |
| 59 | X820-045151 | TEE-R/TYPE,ORFS | |
| 63 | S037-102026 | BOLT-W/WASHER | |
| 65 | S621-011001 | O-RING | |
| 66 | S621-012001 | O-RING | |
| 66 | S621-012001 | O-RING | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| B | S621-012001 | O-RING | |
| G | S631-011004 | O-RING | |
| H | S631-014004 | O-RING | |
| H | S631-014004 | O-RING |
