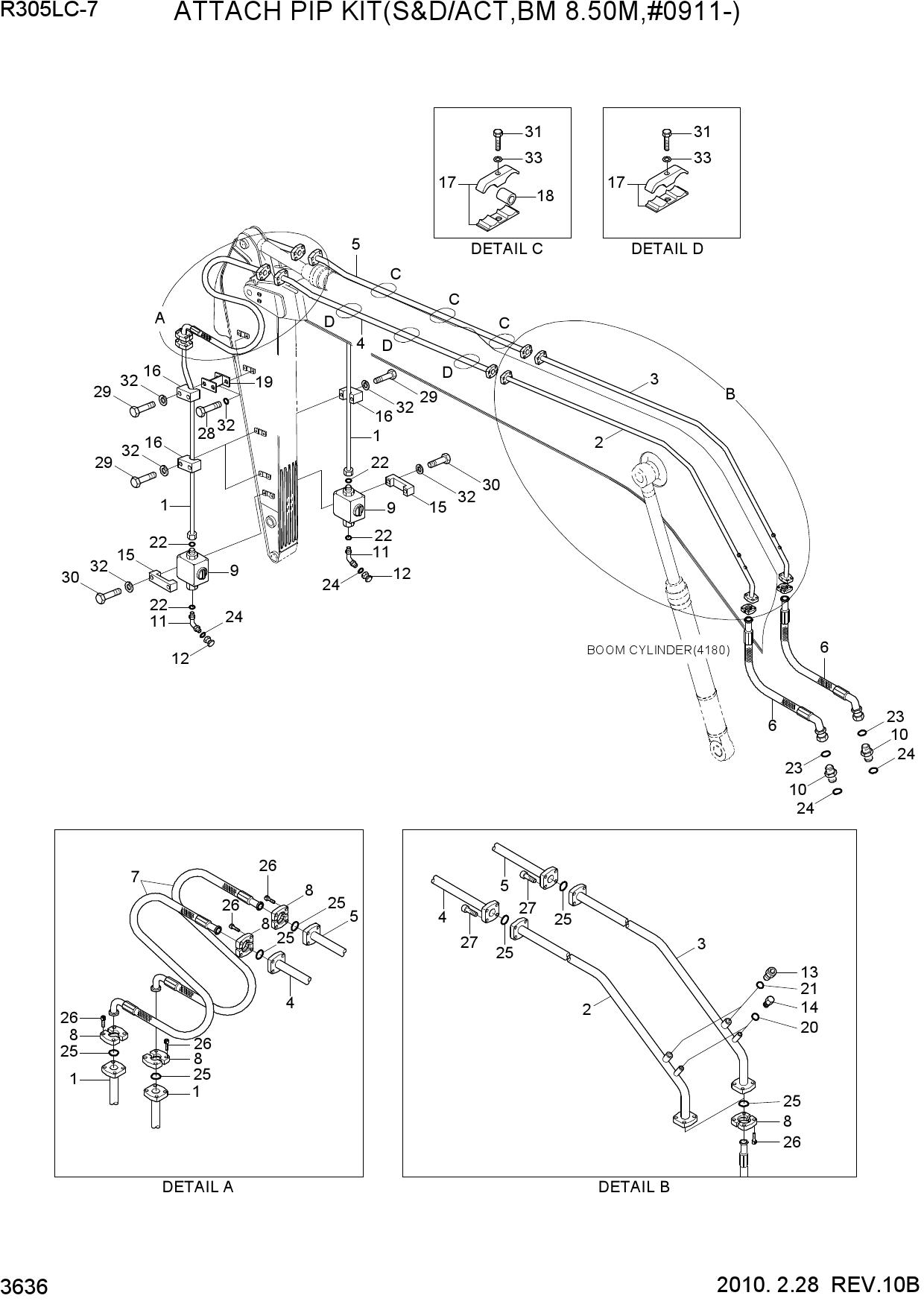

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 ATTACH PIP KIT(S&D/ACT,BM 8.50M,#0911-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N8-92400 | PIPE WA | |
| 2 | 31N8-92410 | PIPE WA | |
| 3 | 31N8-92420 | PIPE WA | |
| 4 | 31N8-92430 | PIPE WA | |
| 5 | 31N8-92440 | PIPE WA | |
| 6 | P974-166328 | HOSE ASSY-THD,FLG(45X0) | |
| 7 | P704-166340 | HOSE ASSY-FLG(0X90) | |
| 8 | P173-160104 | FLANGE-HYD,SPLIT | |
| 9 | 31N6-97010 | VALVE-STOP | |
| 10 | X500-110021 | CONNECTOR-ORFS | |
| 11 | X530-110005 | ELBOW-45,ORFS | |
| 12 | X710-100106 | CAP-HYD,ORFS | |
| 13 | P220-110105 | PLUG-HEX | |
| 14 | 31EK-11130 | COUPLING-SCREW | |
| 15 | 31EG-91350 | CLAMP-STOP VALVE | |
| 16 | 31EG-91390 | CLAMP-PIPE | |
| 17 | 31N6-50310 | CLAMP ASSY | |
| 18 | 31N5-50230 | SPACER-PIPE | |
| 19 | 31N6-92370 | CLAMP-I | |
| 20 | S631-011004 | O-RING | |
| 21 | S631-024004 | O-RING | |
| 22 | S631-029004 | O-RING | |
| 23 | S631-038004 | O-RING | |
| 24 | S621-021001 | O-RING | |
| 25 | Y171-024004 | O-RING | |
| 26 | S109-100406 | BOLT-SOCKET | |
| 27 | S109-100506 | BOLT-SOCKET | |
| 28 | S017-120256 | BOLT-HEX | |
| 29 | S017-120606 | BOLT-HEX | |
| 30 | S017-120706 | BOLT-HEX | |
| 31 | S017-16075D | BOLT-HEX | |
| 32 | S411-120006 | WASHER-SPRING | |
| 33 | S411-160006 | WASHER-SPRING |
