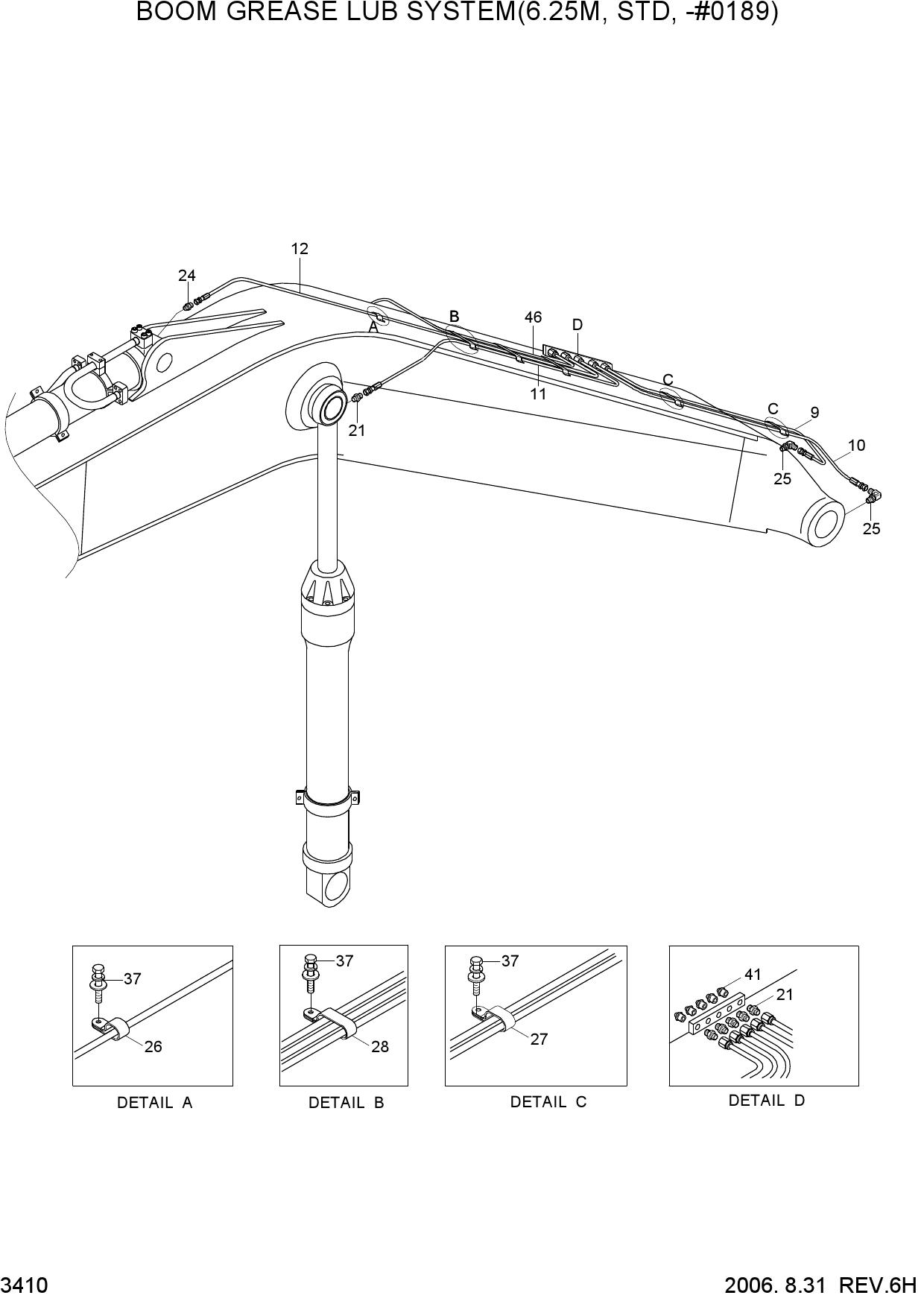

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 BOOM GREASE LUB SYSTEM(6.25M,STD,-#0189)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | P840-042024 | HOSE ASSY-SYN THD | |
| 10 | P840-042026 | HOSE ASSY-SYN THD | |
| 11 | P840-042051 | HOSE ASSY-SYN THD | |
| 12 | P840-042062 | HOSE ASSY-SYN THD | |
| 21 | P010-430011 | CONNECTOR | |
| 24 | E231-0207 | ELBOW-45 | |
| 25 | 31NB-50280 | ELBOW-90 | |
| 26 | 31N8-50370 | CLAMP-HOSE | |
| 27 | 31N8-50380 | CLAMP-HOSE | |
| 28 | 31N8-50390 | CLAMP-HOSE | |
| 37 | S035-062022 | BOLT-W/WASHER | |
| 41 | S651-810002 | NIPPLE-GREASE | |
| 46 | P840-042053 | HOSE ASSY-SYN THD |
